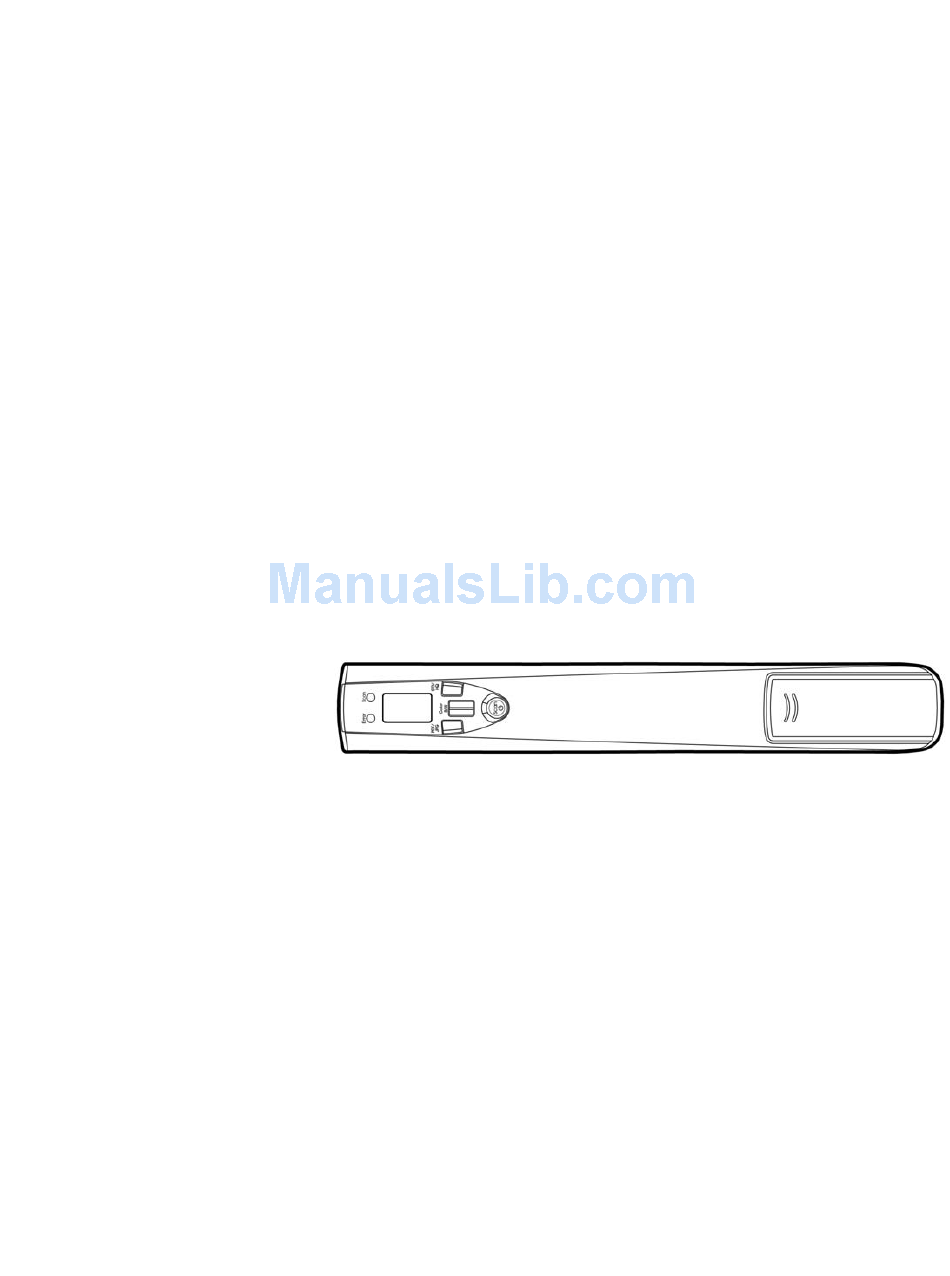

- Page 1 Handy Scanner User’s Manual Regulatory model: FS-0913B Avision Inc.
- Page 2 Warranty The information contained in this document is subject to change without notice. Avision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of fitness for a particular purpose. Avision shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 European Union Regulatory Notice Products bearing the CE marking comply with the following EU Directives: • Low Voltage Directive 2006/95/EC • EMC Directive 2004/108/EC CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by Avision.
- Page 4 Warning and Precautions of the lithium-ion battery Warning: Danger warning to prevent the possibility of the battery from leaking, heating, explosion, please observe the following precautions: • Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using. •...
-
Page 5: Table Of Contents
User’s Manual 目 錄 Overview................1-1 Introduction ..................1-1 Package Contents................1-1 Top View..................1-2 Rear View ..................1-3 Bottom View..................1-3 LCD Display..................1-4 Scanner Indicator Light ..............1-5 Installation and Operation ..........2-1 Installation ..................2-1 2.1.1 Precautions ................. 2-1 2.1.2 Install the battery ..............2-1 2.1.3 Charge the battery ............... -
Page 6: Overview
User’s Manual Overview Introduction Congratulations on your purchase of the portable handheld scanner. With this scanner, you can scan and store your photos or documents directly to a micro SD card without any computer. Simply turn on the scanner, press the Scan button to start and slide the scanner on the surface of your photo and document and press the Scan button again to stop. -
Page 7: Top View
Top View Item Name Description [Scan] Ready LED Show ready status or scan in progress. LCD-display Shows scan settings and operating status. Press to choose STD(standard, 300 dpi) or HQ [STD HQ] button (high quality, 600 dpi) resolution. A red flashing LED indicates error conditions [Error] LED such as scanning too fast Press to select desired file format, PDF or... -
Page 8: Rear View
User’s Manual Rear View Item Name Description Memory card Used to insert a memory card. slot Used to plug the mini end of the USB cable to USB port connect to PC for power charging or images transferring. Edge of Line up the edge of your document with this mark document and the mark on the left side. -
Page 9: Lcd Display
LCD Display COLOR Item Name Description Image color Press to choose PHOTO(Color) or Black and selector white SD card indicator Pictures are stored in micro SD card Resolution STD(300dpi) or HQ(600 dpi) indicator Battery indicator Battery is full， Empty battery Counting Show scan count indicator... -
Page 10: Scanner Indicator Light
User’s Manual Scanner Indicator Light Green light Red light Name Description Initializing system and memory card; wait until the Solid red，blinking initialization process is complete before using the green scanner. Scanning error either because scanning too fast or Blinking red scanning back &... -
Page 11: Installation And Operation
User’s Manual Installation and Operation 2.1 Installation 2.1.1 Precautions Keep the product out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit. Do not install the product in a humid or dusty place. Place the product securely on an even, flat surface. -
Page 12: Charge The Battery
2.1.3 Charge the battery Before using the scanner, you need to first charge the battery by connecting the scanner to your computer with an included USB Y cable. Connect the mini USB connector to the USB port of the scanner. Connect the mini USB connector to the scanner while connecting the USB connector labeled with “Power Cable”... -
Page 13: Install Micro Sd Card
User’s Manual 2.1.4 Install micro SD card You must install a micro SD card to the SD slot at the back of the scanner to store your images. Gently press in until the SD card is latched. micro SD card Note: The scanner only accepts micro SD card in FAT16 or FAT32 format. -
Page 14: Operation
2.2 Operation 2.2.1 Unsuitable original types Do not use the following types of originals for scanning, otherwise the scanner may malfunction: • Originals with lots of black or dark colors • Originals with dark colors surrounding the edges • Soft and thin materials (thin paper, cloth, etc.) •... -
Page 15: Choose Your Desired Scan Settings
User’s Manual 2.2.3 Choose your desired scan settings Choose your desired scan settings to suit different scanning task. Press the “PDF JPEG” button to choose your file format between JPEG and PDF. Press the “Color BW” button to choose your image mode between Color and BW (Black and white). -
Page 16: View Or Download The Scanned Images
Note: Be sure to disconnect the USB cable before scanning. The scanner is not able to scan while the USB cable is connected to your computer. If you place the scanner vertically on the page, your scanned image will be rotated. Follow these steps to get a correct orientation of your image. - Page 17 User’s Manual PDF files are stored in a sub folder titled DCIM\200DOC. The folder stores 9999 document files, and then automatically creates another sub folder titled 201DOC, and so on to 299DOC. Note: The scanner does not support auto cropping capability. You may need to manually crop your scanned .jpg or pdf files.
-
Page 18: View Or Download Images (Ipad)
2.2.6 View or download images (iPad) Plug the iPad Camera Connector（not included）to iPad dock connector. Plug the connector labeled “Data Cable” of the supplied USB Y cable to iPad Camera Connector. The scanned images in the micro SD card of your scanner will be displayed in iPad in 3 seconds. -
Page 19: Using M-Pdf
User’s Manual 2.2.8 Using M-PDF The scanner supports multi-page PDF. Follow these steps to convert your image to M-PDF, Press the “PDF JPEG” button to select PDF file format. Start your scan by pressing the “Scan” button ( ) and end your scan by pressing the Scan button ( ) again. -
Page 20: Presto! Pagemanager 7
User’s Manual Presto! PageManager 7 Fast, fun, and efficient -- Presto! PageManager makes it easy to scan, share, and organize your photos and documents. Presto! PageManager helps you not only to convert piles of papers into organized, digitized files, but also to view, edit, send, and back up files in many formats. -
Page 21: Installing Presto
Recommended Requirements: 256-color SVGA or higher graphics card 128 MB of memory TWAIN or WIA compatible digital camera or scanner Outlook, Outlook Express, Netscape Mail, Microsoft Mail, cc: Mail, or other e-mail Software 3.3 Installing Presto! PageManager Insert the microSD card containing" Presto! PageManager " software into the microSD slot on the scanner. -
Page 22: Starting Software
User’s Manual 3.4 Starting Software Click the Presto! PageManager icon on the desktop or click Start>All Programs>Presto! PageManager. Presto! PageManager window will open. In the left pane, locate the scanner drive. Please find the removable drive (drive letter). Click DCIM\100PHOTO or DCIM\200DOC to view the scanned image. Double-click on an image to open it from the Presto! PageManager. -
Page 23: Using Optical Character Recognition (Ocr)
3.5 Using Optical Character Recognition (OCR) The OCR function can convert scanned text images into editable text. In the tree view window, select a document thumbnail. Please click the OCR icon ( ) on the main toolbar. The document will be converted, and then the text in this image will be recognized as editable text and displayed on the screen. - Page 24 User’s Manual In the tree view window, select a document thumbnail. Application List On the application toolbar, select and click the application to which you want to send, such as WordPad ( The document will be automatically recognized as text, then the application will be opened, and at the same time the recognized text will be displayed on the screen.
-
Page 25: Using Image-Enhancement Tools
3.6 Using image-enhancement tools The image-enhancement tool allows you to adjust brightness, contrast, color of your scanned image, and remove noise to improve your image quality. In the tree view window, double-click an image thumbnail to open it from the view window. - Page 26 User’s Manual Summary of the image-enhancement tool Image Name Description enhancement Icon Image repair toolbar Show all image-repairing tools Select Image Select some area of an image Move Move an image up/down or left/right Eraser Erase part of an image Crop Crop part of the image Rotate selected...
-
Page 27: Using The Annotation Tool
Color Adjustment Adjust the color balance of an image Remove noise Remove noise in an image Flip selected image Reverse an image left and right horizontally Flip selected image Reverse an image up and down vertically Select an appropriate tool, and then click your image to perform the function of the tool. When repairing is done, click the "Save As"... - Page 28 User’s Manual At this point, the annotation toolbar appears on the right side of the screen. Move the cursor to each tool’s icon, then click the right button, and an option menu pops up to let you define the properties of the tool such as font, color, or line style. Click a tool to select it, and then click your image to perform the function of the tool.
-
Page 29: Removing Presto
The image file after adding annotations When the annotation process is complete, click the "Save As" button ( ), select the path, and enter the file name to save the modified file. Text annotation toolbar Not until you open the .doc, .rtf, or .txt file in the view window will the text annotation toolbar be displayed. -
Page 30: Maintenance
User’s Manual Maintenance 4.1 Calibrate the scanner If the scanned image looks fuzzy or there are strange stripes on it, the scanner may need calibrating in order for the sensor to resume its original precision. To calibrate the scanner: Turn off the scanner. * Ensure the battery is fully charged and a microSD card is inserted. -
Page 31: Clean The Rollers And Glass
Notice: Do not interrupt the calibration sequence or try to shut off the device while it is calibrating. If you stop the calibration before it has completed, a calibration error may occur. As a result, when you next power up the unit E06 may be displayed on the LCD screen. -
Page 32: Troubleshooting
User’s Manual Troubleshooting Frequently asked questions and answers Q： Why does not my scanner turn on? A： The battery may not be charged or may not be inserted correctly. Q： The image can not be saved into the memory card while scanning? A：... -
Page 33: Error Code
Q： Should the scanner feel warm to the touch? A： It is normal for the scanner to emit a small amount of heat after prolonged use or especially during the battery charge. However, if there are strange odors coming from the scanner or the scanner feels a little bit hot to the touch, turn the scanner off immediately. -
Page 34: Information Code
User’s Manual Information code Code Description Meaning Speed level 0 Best moving speed Speed level 1 Good moving speed Warning that you are moving the scanner too fast. The scanner may stop scanning due to the Speed level 2 speed being too fast. Slow down your scan, and if necessary, rescan the original. -
Page 35: Specifications
User’s Manual Specifications Specifications are subject to change without notice. Item Description Image Technology: Contact Image Sensor (CIS) Memory: 16MB Max. Scan Size: 8” x 14” LCD Display: 16 x 27.3 (mm) Battery Life: 700 pages (A4 size, color, 300 dpi, nonstop scanning) Auto power off: 3 minutes...
