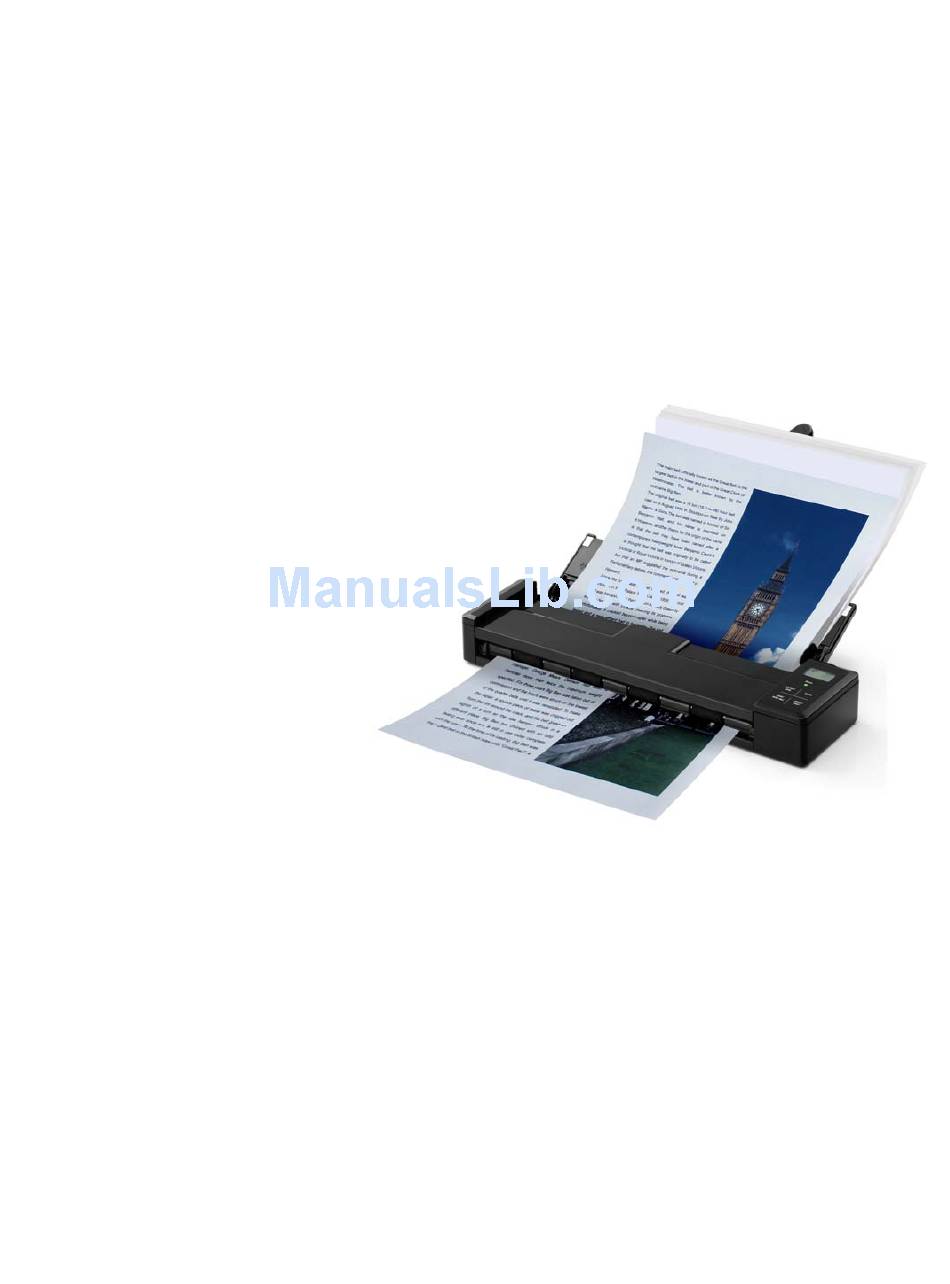

- Page 1 Mobile Scanner User’s Manual Regulatory model: FF-1301S Avision Inc. manual-en-250-0828-E-micube-v200...
- Page 2 Warranty The information contained in this document is subject to change without notice. Avision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of fitness for a particular purpose. Avision shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 Restriction of the use of certain hazardous substances (RoHS) Directive 2011/65/EU CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by Avision. This product satisfies the Class B limits of EN55022, EN55024, safety requirements of EN 60950 and ROHS requirements of EN50581.
- Page 4 Warning and Precautions of the lithium-ion battery Warning: Danger warning to prevent the possibility of the battery from leaking, heating, explosion, please observe the following precautions: Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using.
- Page 5 User’s Manual Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose the battery according to local regulations. Never place batteries or devices on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated or its performance will be degenerate and its service life will be decreased.
-
Page 6: Table Of Contents
Table of Contents Overview ................1-1 Introduction..................1-1 Package Contents ................1-1 Front View ..................1-3 Rear View ..................1-5 Side View ..................1-5 LCD Display ..................1-6 Installation ................ 2-1 Precautions..................2-1 Install the Batteries ................. 2-1 Charge the Batteries ................ 2-3 2.3.1 Via the USB Cable.............. -
Page 7: Overview
User’s Manual Overview Introduction Congratulations on your purchase of the portable scanner. With this scanner, you can scan and store your multi-page documents directly to a SD card without any computer. Simply turn on the scanner, and press the Scan button to start a scan. The scanned image is stored on the scanner’s built-in disk (automatic if no memory card is inserted), or you can insert a memory card for expanded storage capacity. - Page 8 Note: 1. Only use the USB adapter (DSC-5CU-05 050100 made by DVE) and the Li-ion Battery AP-120 made by APACK/CB-PD(NP-120) made by City Bright included in the product. Using other power adapters may damage the machine and void the warranty. 2.
-
Page 9: Front View
User’s Manual Front View Item Name Description LCD display Displays the battery status and current scan settings. Indicates the operating/warning status of the scanner. Solidly lit in green color: The power is turned on. Flashing in green color: Scanning a document in System indicator 300 dpi. - Page 10 Item Name Description Document Open the plate to support the document when Extension Plate loading a long document. These guides ensure documents are fed straight. Document Guides Raise the guides when loading a document, and then align them to the edges of the document to be scanned.
-
Page 11: Rear View
User’s Manual Rear View Item Name Description Plastic card Used to insert and hold a business card or a feeder plastic card. Memory card slot Used to insert a memory card. Side View Item Name Description Turn to the [ON] position to power on the Power switch scanner or turn to the [OFF] position to power off the scanner. -
Page 12: Lcd Display
LCD Display Item Name Description Battery status Indicates the power status of the battery. Scan count Indicates scan count. Indicates current file format for the scanned image. File format Choice: PDF, JPEG. Indicates current color mode. Choice: Color, Black Color mode and White. -
Page 13: Installation
User’s Manual Installation 2.1 Precautions Keep the product out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit. Do not install the product in a humid or dusty place. Place the product securely on an even, flat surface. Tilted or uneven surfaces may ... - Page 14 Open the battery cover.
-
Page 15: Charge The Batteries
User’s Manual Load the battery into the battery container. Make sure the battery is loaded with the correct polarity. Note the copper strips on the battery should be touching the copper strips on the device. Note: Please use only the supplied battery. Close the battery cover and feeder cover. -
Page 16: Via The Usb Power Adapter
2.3.2 Via the USB Power Adapter Turn off the scanner. Connect the micro USB connector to the USB port of the scanner. Connect the other USB connector to the USB port of the USB Power Adapter. USB Power Adapter Important: For first-time use, please charge the battery for at least 4 hours. -
Page 17: Install A Sd Card
User’s Manual 2.4 Install a SD Card The scanner’s built-in storage disk has approximately 128MB of space that can be used to store scanned images. You can install a SD card to the SD slot of the scanner to expand your storage. -
Page 18: Install The Feed Extension Plate
2.5 Install the Feed Extension Plate Open the feed tray. Open the feed extension plate. - Page 19 User’s Manual Raise the right and left document guides to load your document.
-
Page 20: Operation
User’s Manual Operation 3.1 Suitable and Unsuitable Original Types Suitable Original Types The scanner used with the feeder dock is designed to obtain the best scanning results with the following types of originals: Photos and documents (3”x5”, 4”x6”, 5”x7”, 8.5”x14”) (76 x 127mm, 102 x 152 mm, ... -
Page 21: Power On The Scanner
3.2 Power on the Scanner Turn the Power Switch to the [ON] position to turn on the scanner. The LED indicator light will be lit and the default scan settings will be displayed on the LCD screen. 3.3 Choose Your Desired Scan Settings After the scanner is turned on, the LCD displays the default scan settings, Resolution: 300 dpi, Color mode: color, File format: JPG. -
Page 22: Load A Document
User’s Manual 3.4 Load a document Fanning Your Document Standard paper size should feed easily through the scanner. To avoid occasional paper jam when automatically feeding multiple documents, loosen the paper before loading. Document Feeding Load the stack of document FACE DOWN with the top of the pages pointing into the feeder. -
Page 23: Start A Scan
3.5 Start a scan Press the [Scan] button to start a scan and the paper will feed through the scanner. -
Page 24: Scan A Card
User’s Manual Scan a card Make sure the feeder cover and paper tray are closed as shown. Insert your plastic card FACE DOWN, TOP EDGE FIRST into the scanner’s feeding slot for cards at the back of the scanner, align it to the left edge of the slot ( ), and gently ... -
Page 25: Scan Dark Pictures
Scan dark pictures The scanner has a built-in cropping function that automatically detects and crops dark edges and dark areas against the cropping baseline background during the scan process. To prevent poor cropping, align the original straight against paper guides and ensure there is adequate space in front of the feeder for the originals to completely feed through. -
Page 26: Power Off The Scanner
User’s Manual 3.8 Power off the Scanner When your scanning job is completed, move the Power switch to the [OFF] position to turn off the scanner. The LCD display will be off. When the scanner is left idle for 3 minutes, the default Power Save mode automatically ... -
Page 27: Computer System Requirements
3.9.1 Computer system requirements Operating System: Windows – XP, Vista, Windows 7, Windows 8 Macintosh – Mac OS 10.5, 10.6, or later USB Port: USB 2.0 3.9.2 Connect with Windows XP or Later Turn on the scanner. Insert the memory card containing your scanned images into the scanner’s memory card slot. -
Page 28: Disconnect The Scanner
User’s Manual 3.9.5 Disconnect the scanner CAUTION: Do not remove the memory card or disconnect the USB cable while the computer is accessing stored files. Disconnect the Scanner from a Windows PC On the Windows System Tray, click the hardware removal icon as indicated below. Click Safely remove USB mass Storage device –... -
Page 29: Maintenance
User’s Manual Maintenance Clean the Scanner Glass, Separation Pad and Rollers If the scanned images contain streaks or scanned documents become dirty, the scanning glass, separation pad and roller inside the scanner are likely to be dirty. Clean them periodically. Use only the recommended or supplied tool to clean the scanner and feeder dock. - Page 30 Wipe the separation pad, rollers and the glass with the included cleaning cloth. Note: Adding some isopropyl alcohol (95%) on the cleaning cloth is more efficient when cleaning the rollers. Do not use any solvents or corrosive liquid (i.e., alcohol, kerosene, etc.) to clean any ...
-
Page 31: Calibrate The Scanner
User’s Manual Calibrate the Scanner Calibrate only if the scanned image looks fuzzy, the color looks abnormal (e.g., darker than normal), after more than 8,000 scans, or the scanner has been stored without use for a long time. The calibration process resets the Contact Image Sensor to resume its color and sharpness precision. - Page 32 To enter the calibration mode, press and hold the [Color/BW] until [CAL] is displayed on the screen and the [Scan] LED flashes in green, indicating you are in calibration mode. Press the [Scan] button. The calibration chart will be fed through. After the calibration process is finished, [OK] will be displayed on the screen.
-
Page 33: Replace The Feed Roller
User’s Manual Replace the Feed Roller The feed roller and separation pad inside the scanner wear with scanning. If the feed roller and separation pad are worn, documents may not feed correctly and paper jams may occur. When document feed performance deteriorates, replace the feed roller and separation pad.. Note: It is recommended to replace the feed roller or separation pad when the total number of pages of documents fed in the scanner exceeds one of the following quantities:... - Page 34 Open the roller cover.
- Page 35 User’s Manual Slide the feed rollers to the right. Remove the feed rollers. Attach the feed rollers. Insert the left end of the shaft to the notch. A snap-in sound could be heard. Completely close the roller cover so that it clicks into place. Close the feeder cover.
-
Page 36: Replace The Separation Pad
Replace the Separation Pad To replace the Separation Pad, Open the feed tray. Open the feeder cover. Press two arms of the separation pad inwardly with two fingers ( ) and lift it up ) to remove the separation pad. ... - Page 37 User’s Manual Hold two arms of the separation pad with two fingers and attach the new separation pad to the scanner. Close the feeder cover.
-
Page 38: Troubleshooting
User’s Manual Troubleshooting Clear a paper jam In the event of a paper jam, follow the procedures below to remove the paper: Gently open the feeder cover. Carefully pull the paper out of the feed tray. Close the feeder cover. Your Scanner is now ready to use. -
Page 39: Error Conditions
Error Conditions If there is error during scanning, the LED light will be flashing in red color and error codes will be displayed. Refer to the following table to clear the error conditions. Error Cause How to restore Code/Meaning Storage is full; can not save Free more space or insert a new Storage error image to storage device. -
Page 40: Frequently Asked Questions And Answers
User’s Manual Frequently asked questions and answers Q： Paper becomes jammed or multi-fed. A： Flatten the corners and edges of your documents. Thoroughly fan your documents before loading them into the scanner. Document might stick together because of static electricity. Reduce the number of pages that you load into the scanner at one time. - Page 41 Q： Why there are strange lines on the scanned document? A： Please check the following: Are there scratches on the original or is the original clean？ Remove any stains or dust from the original before scanning. Clean the rollers and glass with the included cleaning cloth. (Refer to the section “Cleaning the Rollers and Glass)) Q：...
- Page 42 A： Yes. Please follow these steps to set a real-time clock for the device: Open your browser and type Avision’s web site (http://www.avision.com) at the URL address. On the Product or Support page, select this mobile scanner and then download a time.txt file for the device.
-
Page 43: Technical Service
Technical Service Before contact Avision, please prepare the following information: Scanner serial & revision number (located on the bottom of the scanner); Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card, interface card);... - Page 44 User’s Manual South American Area Avision Brasil Ltda. Rua Bamboré 41, Vila Monumento, Ipiranga. CEP: 04278-060, São Paulo, Brasil TEL: +55-11-2737-2005 E-MAIL: suporte@avisionbrasil.com.br Web Site: http://www.avisionbrasil.com.br/...
-
Page 45: Specifications
User’s Manual Specifications Specifications are subject to change without notice. General Specifications: Item Description Regulatory model number FF-1301S Image Technology Contact Image Sensor (CIS) Built-In Memory 128M Scanner Display 1.2” TSN LCD Max. Document Size 8.5” x 14” (216 x 356 mm) Long Page Mode 36”...
