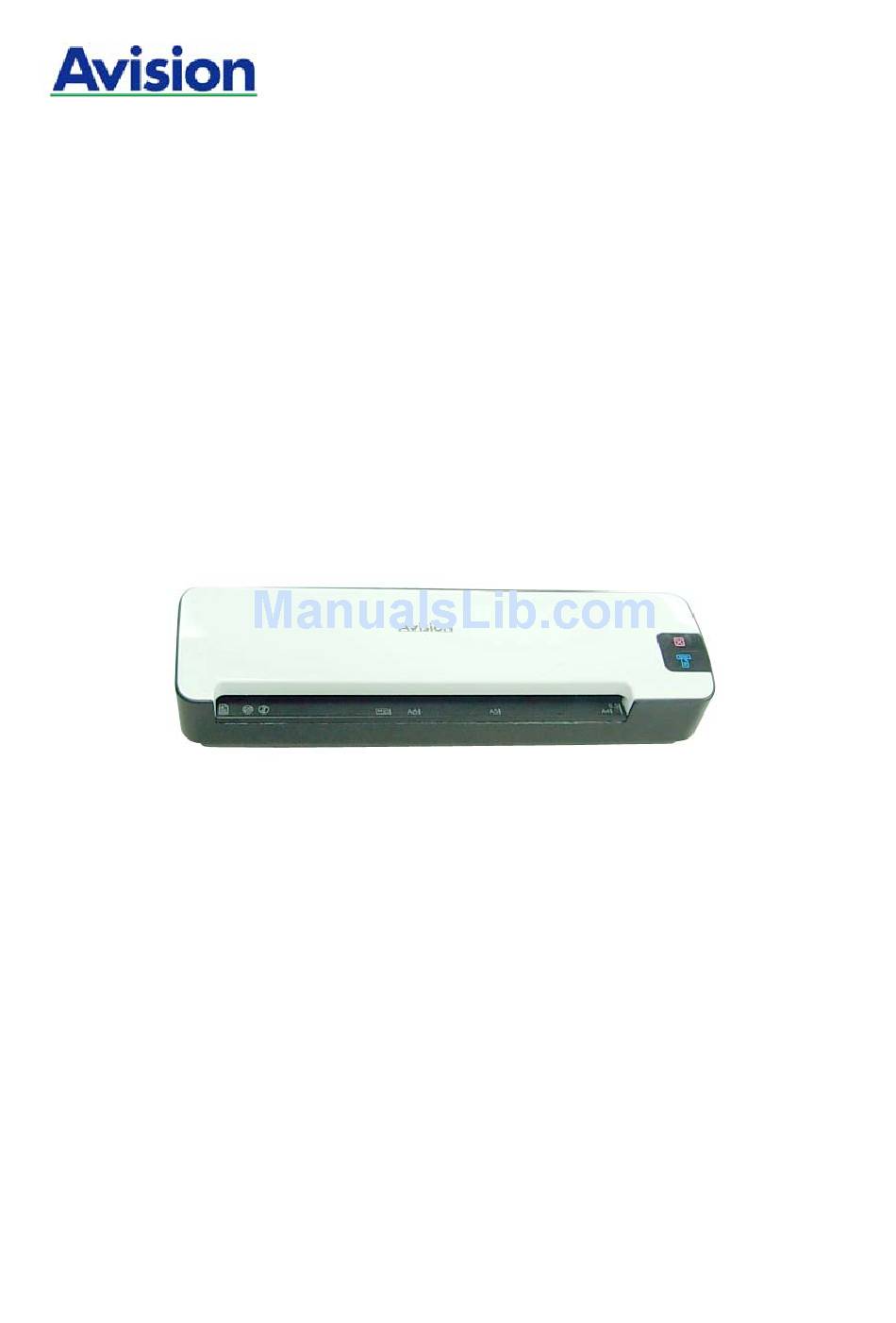

Mobile Scanner
User's Manual
Regulatory model: FL-0914S
Avision Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL-0914S and is the answer not in the manual?

Questions and answers

Related Manuals for Avision FL-0914S

Summary of Contents for Avision FL-0914S

  • Page 1 Mobile Scanner User’s Manual Regulatory model: FL-0914S Avision Inc.
  • Page 2 Warranty The information contained in this document is subject to change without notice. Avision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of fitness for a particular purpose. Avision shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 3 FCC Radio Frequency Interference Statement This product has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, this device...
  • Page 4 ® As an ENERGY STAR Partner, Avision Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. *This machine is certified as Class 1 laser product. This means...

  • Page 5: System Requirements

    System Requirements IBM compatible PC 586, Pentium or higher Microsoft Windows 2000, Windows XP, Windows Vista, Windows 7 USB port 2.0 (compatible with USB 1.1) At least 100 MB of free hard disk space (500 MB is recommended) At least 128 MB of system memory (512 MB of RAM is recommended) At least 1 GB of RAM for Windows Vista/7 A CD-ROM drive...

  • Page 6: Table Of Contents

    Table of Contents Introduction..........1-1 Scanner Installation........2-1 Installing the Scanner Driver and Cables ..2-1 2.1.1 Installing the Scanner Driver ..... 2-2 2.1.2 Connecting to Computer ....2-3 Completing Your First Scan ....... 3-1 Placing Your Document ....... 3-1 3.1.1 Notice on Using the ADF....
  • Page 7 The Preview Tab ........4-46 The Options Tab........4-47 The Setting Tab ........4-55 4.10 The Imprinter Tab ......... 4-58 4.11 The Information Tab ......4-61 The ISIS Interface Operation ....5-1 Using the Buttons........6-1 Installing Button Manager......6-1 Checking Button Configurations Before Scanning..........

  • Page 8: Introduction

    1. Introduction Congratulations on your purchase of the color image scanner. With this scanner, you can scan documents at a fast rate to increase productivity. Before you install and operate the new scanner, please take a few minutes to read through this manual. It provides proper instructions for you to unpack, install, operate and maintain the scanner.

  • Page 9: Scanner Installation

    2. Scanner Installation Precautions Keep the scanner out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit. Do not install the scanner in a humid or dusty place. Place the scanner securely on an even, flat surface. Tilted or uneven surfaces may cause mechanical or paper-feeding problems.

  • Page 10: Installing The Scanner Driver

    2.1.1 Installing the Scanner Driver Place the supplied CD-ROM onto your CD-ROM drive. The software installation graphic appears. If not, run “setup.exe”. Contents on the installation graphic: • Install Button Manager: To use the buttons on the scanner, you need to install Button Manager. To ensure Button Manager works properly, please FIRST install Button Manager before installing the scanner driver.

  • Page 11: Connecting To Computer

    • Install Adobe Reader: To view the user’s manuals for the scanner and Button Manager, you need to use Adobe Reader to open and view the manuals in PDF file format. If you already have Adobe Reader installed on your computer, you may disregard this item.
  • Page 12 2. The computer should detect a new USB device and prompt a “New Hardware Found” message. In Windows 2000, confirms that the “Search for a better driver.” is selected and click the “Next” button. In Windows XP, click the Next button to continue. When the XP certification screen appears, click Continue Anyway to complete the installation.

  • Page 13: Completing Your First Scan

    3. Completing Your First Scan Placing Your Document 3.1.1 Notice on Using the ADF Before using the ADF, please make sure that your paper meets the following specifications: • Document(s) can range in size from 2.9 by 2.1 inches to 8.5 by 14 inches (Legal).

  • Page 14: Loading Paper To The Paper Feed Slot

    3.1.2 Loading Paper to the Paper Feed Slot The scanner is a duplex scanner, which means it can scan one side of the page or both sides of the page at the same time. However, the scanner can only scan one page at a time.

  • Page 15: Loading A Card To The Paper Feed Slot

    3.1.3 Loading A Card to the Paper Feed Slot Place the card face up with the long dimension parallel to the paper feed slot and make sure the top of the card points to the paper feed slot. Align the original to the left side of the paper feed slot. Note: This scanner is able to scan plastic ID cards from the front input tray.

  • Page 16: Verifying Your Scanner Installation

    Verifying Your Scanner Installation To verify if your scanner installation is correct, Avision provides you a useful test program called Avision Capture Tool. With this tool, you can perform simple scans and view the captured images. In addition, it helps you complete your scan at a rated speed.
  • Page 17 Actual Page Size Save File Path File Format Scan Setup Choose your desired file format from the File Format drop down list box. (Default is BMP, other choice includes TIFF, GIF, and JPEG.) Type your desired folder name and file name in the File Path box.
  • Page 18 Image Selection From the Image Selection Box, choose your desired image type for your scanned image. (Default is Front B&W) If you have a duplex scanner, choose Front and Rear to scan both sides of your document. Click OK to quit the Scanner Properties dialog box. (To learn more details about the Scanner Properties dialog box, please see the subsequent chapter, Using the Scanner Properties Dialog Box.)
  • Page 19 Status Bar Fit Page View Thumbnail View 11. You can view the scanned image in Fit Page ( ) or Actual Size (100%) button ( ) from the Viewing toolbars at the right side. 12. Click the Close box or Quit from the File menu to exit the Scan Validation Tool.

  • Page 20: A Glance Of The Scanner Properties Dialog Box

    3.2 A Glance of the Scanner Properties Dialog Box 1. Tab Options Choice: Image, Compression, Color Dropout, Paper, Options, Settings, Information. 2. Image Choose your image type and the side of Selection Box document you wish to scan. Options vary based on type of scanner.

  • Page 21: Scan From The Scanner Button

    3.3 Scan from the scanner button To scan using the scanner buttons, follow these steps: Load the originals. Press the Scan button to start a scan. The Scan Progress Window will be displayed and the scanned image will be saved in a default location or a user defined location.

  • Page 22: Using The Scanner Properties Dialog Box

    4. Using the Scanner Properties Dialog Box The Scanner Properties dialog box allows you to configure the scanner’s settings. It consists of several tabbed windows each of which will be described in this chapter. The Scanner Properties dialog box...

  • Page 23: Buttons On The Scanner Properties Dialog Box

    4.1 Buttons on the Scanner Properties Dialog Box The buttons on the Scanner Properties dialog box Buttons Description Defaults Click the Defaults button, the factory default settings will be shown on each tab. Scan After all the scan settings are satisfactory, click the Scan button to start scanning your document.
  • Page 24 The following table shows the default settings： Tab name Default settings Image Image：Front B&W Binarization：Dynamic Threshold Resolution：200 dpi Invert：Blank on White Scan Source：Auto Document Feeder Threshold：None Brightness：None Contrast：None Compression None Color Dropout None Paper Cropping：Automatic Deskew：Yes Orientation：Portrait OverScan：0.00 Multifeed Detection：None Unit：Inch Options Rotation Degrees：None...

  • Page 25: The Image Tab

    4.2 The Image Tab The Image tab allows you to choose the front side and (or) the rear side of your document, the type of image, and to set several basic scan settings. Note that except for the resolution, you can set individual scan settings for the front side and the rear side.

  • Page 26: The Image Selection Box

    4.2.1 The Image Selection Box The Image Selection box includes the image type and document side option. If you wish to scan both the front side and the rear side of your color document, you can check both Front Color and Rear Color at the same time.
  • Page 27 Example 2：Scanning a two-sided color document, one in B&W(Drop Blue Color：Threshold：10, Background：79), the other in color Side/Image Selection Rear Front Image Description Type Color Choose Color if you wish to scan a color image for your original in color. Gray Choose Gray image if your original contains actual shades of gray.
  • Page 28 Front/Rear Auto Color Detection: Click to automatically detect and scan the front or the rear page of your color document in color image mode. If your document is in colors, the scanner will automatically scan the document into a color image. If your document is non-color, you can choose the output to be either B&W or Gray from the Non-Color Selection option.

  • Page 29: Other Image Options

    4.2.2 Other Image Options This is the process of converting a Binarization grayscale or color image to a bi-tonal image. There are several different methods of performing this conversion. Options: Dynamic Threshold, Fixed Processing, Halftone 1~5, Error Diffusion. Dynamic Threshold: Selecting Dynamic Threshold allows the scanner to dynamically evaluate each document to determine the optimal threshold value...
  • Page 30 Fixed Processing: Used for black-and- white and other high contrast documents. A single level is set to determine the black- and-white transition. The threshold is programmable over the entire density range. Fixed Processing sets Contrast to 0. If Fixed Processing is selected, Contrast is not available.
  • Page 31 Error Diffusion Image 4-10...
  • Page 32 Threshold Used to convert a grayscale image to a bi-tonal image. The value ranges from 0 to 255. A low threshold value produces a lighter image, and can be used to subdue backgrounds and subtle, unneeded information. A high threshold value produces a darker image, and can be used to help pick up faint images.
  • Page 33 Gray Document Type: Choice: Normal, Photo, Document Three options of document type are provided when you choose Gray as the image type for your scanned document. Choice: Normal, Photo, Document. • Document: Choose Document if your original contains pure text or a mixture of text and graphic since it is an optimal setting for regular business document.
  • Page 34 Normal Photo Document (Threshold: 230) Normal Photo Document (Threshold: 230) 4-13...
  • Page 35 Adjusts the lightness or darkness of an Brightness image. The higher the value, the brighter the image. Drag the slider to the right or left to increase or decrease the brightness. The range is from –100 to +100. Adjusts the range between the darkest and Contrast the lightest shades in the image.
  • Page 36 Resolution A good control of the resolution results a good detail of an image that scans. The resolution is measured by dots per inch (dpi). Normally, the greater the dpi number, the higher the resolution and the image file size. Be aware that greater resolution takes more time to scan, and more disk space for the scanning image.
  • Page 37 Invert Reverses the brightness and the colors in the image. The default setting is Black on a White background. Reverse mode is White on a Black background. For color images, each pixel will be changed into its complementary color at the command of Invert.
  • Page 38 Scan Choice: Source Auto Document Feeder: Used to scan multiple pages. Flatbed: Used to scan a single page. For example, pages from newspaper clipping, paper with wrinkles or curls. Flatbed (book): Used to scan several inside pages from book. Automatic: Allow the scanner automatically set its scan source.

  • Page 39: Scanning Color Images

    Color The purpose of Color Matching is getting the Matching accurate color. This option uses the default parameters (ICC profile) to adjust the colors of the image. Normal After Color Matching 4.2.3 Scanning color images The following options are available for scanning color images. Brightness Contrast Resolution...

  • Page 40: Scanning Grayscale Images

    4.2.4 Scanning grayscale images The following options are available for scanning gray images. Brightness Contrast Resolution Invert 4.2.5 Scanning B&W images The following options are available for scanning B&W images. Binarization (Dynamic Threshold) Resolution Invert Binarization (Fix Processing) Threshold Brightness Resolution Invert 4-19...

  • Page 41: Editing Profiles

    4.2.6 Editing Profiles The Scanner Properties dialog box allows you to change and save your frequently used scan settings into a profile. You can edit these profiles by renaming or deleting them. To add a new profile, Customize your settings. (For example, change your resolution, image type, cropping method, scan size, or other scan settings.) Click the Image tab and then choose “Profiles”...
  • Page 42 To load a profile, From the Image tab dialog box, choose your favorable profile from the “Profiles” dropdown list box. Your favorable profile will be immediately loaded and displayed on Scanner Properties dialog box. To delete a profile, From the Image tab dialog box, click “Profiles” to prompt the Edit Your Profile dialog box.
  • Page 43 To rename a profile, From the Image tab dialog box, click “Profiles” to prompt the Edit Your Profile dialog box. Choose the profile you want to rename from the dropdown list box and then click the Rename button. Enter new name for the profile. Choose “Save”...

  • Page 44: The Compression Tab

    4.3 The Compression Tab The Compression tab allows you to compress your scanned image and choose the level of compression. Bi-tonal images are normally compressed using CCITT standard called Group 4 (G4). Color and grayscale images are often compressed using JPEG technology.
  • Page 45 The Compression tab dialog box 4-24...

  • Page 46: The Color Dropout Tab

    4.4 The Color Dropout Tab 4.4.1 Color Dropout Selection Color Dropout tab allows you to drop either of the red, blue, or green color in your scanned image. If your image contains red color watermark or background, choose the R (Red) channel then any red watermark or background will be removed.
  • Page 47 The Color Dropout dialog box 4-26...

  • Page 48: Other Color Dropout Options

    4.4.2 Other Color Dropout Options Advanced Processing provides two options that can adjust your scanned image in the best optimal result. Filter This value is used to determine the color Threshold which will be dropped out. A lower value will drop more of the selected color out, while a higher value will leave more of the selected color in.
  • Page 49 Remove Blue, Threshold: 20, Background: Remove Blue, Threshold: 20, Background Level: 210 4-28...

  • Page 50: The Paper Tab

    4.5 The Paper Tab The Paper tab allows you to define values relating to image output (i.e., Auto Crop or not, Scan Area, OverScan, Multi-Feed Detection). The Paper tab dialog box 4-29...

  • Page 51: Cropping

    4.5.1 Cropping Cropping allows you to capture a portion of the document being scanned. Choice: Automatic, Fixed to Transport, EOP (End of Page) Detection. Options Description Automatic Automatic adjusts the cropping window according to different document sizes. Use this option for batches of mixed-sized documents.
  • Page 52 Automatic This option allows you to place various Multiple sized documents such as photos, ID Cards, or business cards on the flatbed (if available) and lets you create multiple individually cropped images in one scan. Note: To correctly create multiple images, please make sure there is at least 12mm (0.5”) of space between each document.

  • Page 53: Other Paper Selection

    4.5.2 Other Paper Selection Deskew Use this option to automatically deskew a document. Note: If the skew angle is too great, some of the image may be cut off. Scan Area Choose your desired paper size with the drop-down list box. Or you may select a custom paper size by clicking the Scan Area box and then click Add to include in the choice.

  • Page 54: Transport Timeout

    Choose “Unknown Length” if you have a batch of long page document with unknown length. Choose “Enter Length” to enter the length and width of your documents or your desired scan size on documents. This is useful when you have a batch of documents with the same scan size or a batch of same-sized documents.
  • Page 55 Note: Within the specified timeout period, if you load your document to the feeder, the scanner starts scanning automatically. If your scanner has a flatbed option and you place your paper on the flatbed, after the timeout period, you need to click the Scan button on the TWAIN user interface to start scanning.

  • Page 56: The Multi-Feed Detection Tab

    4.6 The Multi-Feed Detection Tab Multi-Feed Detection Multi-Feed Detection allows you to detect overlapped document that go through the auto document feeder. Multi-Feed usually occurs due to stapled documents, adhesives on documents, or electro-statically charged document. Note： The availability of the function varies based on type of scanner.
  • Page 57 Additional Length Detection Additional Length Detection allows you to define the length of document being multi-fed. This value indicates the additional length exceeding your scan area. The Display window will show the size of the document as you change the value. A value of 0 indicates no additional length detection.
  • Page 58 By Length+Position: When a multi-feed is detected for the first time, the scanner memorizes the length and position of the paper attached to the document. When you perform next scanning, this pattern of multi-feed will be bypassed. To use the intelligent mode, Choose your desired multi-feed detecting method to bypass by.
  • Page 59 Detection Area This option allows you to specify a multi-feed detection area. To specify a multi-feed detection area, Choose Disable from the Intelligent Mode. The Detection Area will be enabled. Choose Inside the Range or Outside the Range. The detection area will be highlighted. Drag your mouse pointer on the top or the bottom of the detection area to specify your area in the display window.
  • Page 60 Detection Area: Outside the Range, Box, Top: 3”, Bottom: 7” 4-39...
  • Page 61 Ultrasonic Detection Ultrasonic Detection allows you to set overlapped document by detecting paper thickness between documents. Note： The availability of the function varies based on type of scanner. There are two options available if Multi-Feed is detected. Stop Scanning after Multi-Feed If this is selected, the scanner will stop the feeder and display the following Warning dialog box if multi-feed is detected.
  • Page 62 Clear the Multi-Fed Paper: Choice: Manual, Auto If Auto is selected, once multi-feed is detected and scanning operation is stopped, the scanner will automatically clear the transport of the multi-fed paper. If manual is selected, once multi-feed is detected and scanning operation is stopped, you need to manually clear the transport of the multi-fed paper.
  • Page 63 How to add the sound alarm： 1. Click the Browse button on the right side of the speaker icon. The Open dialog box appears. 2. Choose your wave file. 3. Click the Open button. The wave file is added. Units Defines the primary measurement system.

  • Page 64: Relative To Document

    4.6.1 Relative to Document Relative to Document: (used for batches of same-sized documents) This option allows you to crop different areas on your documents and deliver these images in B&W, Gray, or Color separately. For example, there are applications which require you to store the entire document in B&W and a part of the document in color to save storage space.
  • Page 65 Click the Preview tab to display the Preview window. A black rectangular box appears to indicate the max. scan size your have just selected. The Image The selected Selection image A black rectangular Click the Preview button to view the entire image in low resolution to correctly crop your relative scan area.
  • Page 66 A Cross Sign Relative Area Check the B&W image from the Image Selection box to scan the entire document. Click the Scan button to start scanning the document in two image types and sizes. (See the result in below.) The entire document in B&W The relative area in color 4-45...

  • Page 67: The Preview Tab

    4.7 The Preview Tab The Preview tab allows you to preview (a low-resolution scan) your image before final scan. This preview image lets you allocate your scan area. You can choose your scan area by the “Scan Area” drop down list box or placing your cursor on the Display window and dragging it diagonally on the Display window.

  • Page 68: The Options Tab

    4.8 The Options Tab The Options tab allows you to set following additional image processing settings. The Option tab dialog box 4-47...
  • Page 69 Flip Side Select “fanfold” to rotate the image Rotation of the reverse side to 180 degrees. This is applied to double-sided document which are viewed in portrait are sometime fed into the scanner in landscape or vice versa. Choice: Book, Fanfold. If “Book”...
  • Page 70 Rotate Image Choose the rotation angle from the drop down list if you wish to rotate your scanned image. Choice: None, 90°CW(clockwise), 90°CCW(counter clockwise), 180°, Auto based on contents, Auto rotate every even page. Rotate 90°CW Original Rotate 90°CCW Rotate 180° Auto based on contents: When Auto based on contents is selected, images can be rotated to their proper...
  • Page 71 Blank Page Check if you wish to remove the blank page Removal and move the slider to the left or right to your desired threshold. Edge Fill Check White or Black if you wish to add white or black edge on the border of your scanned image.
  • Page 72 Image Check the Mirror box if you wish to reverse the right Control and left side of your image. Option Original The Mirror Effect 4-51...
  • Page 73 Despeckle Occasionally small dots or specks appear in the background of a scanned image. Remove unwanted speckles provides a cleaner image for OCR (Optical Character Recognition) processing, and also helps to reduce compressed file size. Define the speckles (also known as image noise) you wish to remove by specifying its number (size) and radius (range).
  • Page 74 Note: • The function is currently available for Black and White image only. • To scan at rated speed, it is recommended to set the noise radius up to 10 pixels. 4-53...
  • Page 75 Background This option allows you to set your scan Setting background. Choice: White Background, Black Background. White Background Black Background 4-54...

  • Page 76: The Setting Tab

    4.9 The Setting Tab The Setting tab allows you to set the following settings: The Setting tab dialog box Energy Saving Check the Enable Energy Saver box Control and move the slider to the right to set the amount of time to start the energy saver after your last action.
  • Page 77 Cache Mode: None, Page Number, Memory Size. This option allows you to assign a specified memory size from the available RAM to process the image data. By specifying a smaller memory size, you can free more memory for other applications you are running.
  • Page 78 Show Scanning Check and the scanning progress bar Progress will be shown during scanning. Show Warning Check to show the warning messages Message such as “ADF pad count exceeds 50,000 scans (the number varies based on type of scanner). Please replace the ADF pad and reset the pad count.”...

  • Page 79: The Imprinter Tab

    4.10 The Imprinter Tab The Imprinter tab allows you to print alphanumeric characters, date, time, document count and custom message on your scanned image if digital imprinter is selected or at the back of your document if external imprinter is selected. Choice: External Imprinter, Digital Imprinter.
  • Page 80 Contents Print All Check Print All to automatically print the text at all pages of your documents. Uncheck Print All to print the text for the first page of your documents only. Custom Enter your custom text to be included in your print string.
  • Page 81 String Choice: Normal, Rotated (180 degrees) Orientation Delay Choose the position of the print string. Move the slider from 1 to 5000. Default: 300. This feature is available only if an external imprinter is installed. Print Position Choose the position of your printed string. Choice: Top, Middle, Bottom, Custom.

  • Page 82: The Information Tab

    4.11 The Information Tab The Information tab displays the following system and scanner information. The Information tab dialog box The “Report” button： If you encounter any error message while using the scanner, click the Report button. A report.txt file (C:\AVxxx) will be generated.
  • Page 83 The “Reset Pad Count” button： After scanning approximately 50,000 pages (the number varies based on type of scanner) through the Auto Document Feeder (ADF), the ADF pad may be worn out and you may experience problems with document feeding. In this case, it is highly recommended to replace the ADF pad with a new one.

  • Page 84: The Isis Interface Operation

    5. The ISIS Interface Operation The ISIS driver operation method is similar to the TWAIN’s functions on the ISIS interface screen is briefly described as below: Mode: Select one of scan modes, including B&W, gray, color options. Dither: 5 halftone levels available, can be disabled. Dots per inch: Select your desired resolution.

  • Page 85: Using The Buttons

    6. Using the Buttons To use the buttons on the scanner, you need to install the Button Manager. To ensure the Button Manager work properly, please FIRST install Button Manager before installing the scanner driver. 6.1 Installing Button Manager Installing the Button Manager is easy. Insert the supplied CD to your CD-ROM drive and follow the instructions on the screen to complete the installation of the Button Manager.
  • Page 86 This indicates the scanner model The Function Icon (The number of function icons vary based on type of scanner.) The Button Icon The Button Panel The Button Panel shows the first five scanning buttons. Right-click the button (function) you wish to check. The Button Properties window appears.

  • Page 87: Scanning From One Touch Of The Button

    The default setting is indicated in highlighted color. If you wish to change the setting, use this window to reset the setting for the file format, destination application, or other scan settings. See “Configuring the Button” in the subsequent section to reset the settings. Click the OK button to leave the window.
  • Page 88 Note: To accurately use the default settings, you need to install the necessary software application such as E-mail software or Adobe Reader before installing the Button Manager. Or you may install these applications and add these applications to the Button Manager. For details information on how to use the Button Manager, please refer to the user’s manual in the supplied CD.

  • Page 89: Care And Maintenance

    7. Care and Maintenance 7.1 Cleaning the Scanner Glass Use the included cleaning cloth to clean the rollers and the scanner glass on the following conditions: • As a guideline, clean the rollers after every 5,000 scans. Note that this guideline might vary based on the type of documents you are scanning.
  • Page 90 Caution: Wait two minutes for the components to dry before proceeding to the next step. Place one sheet of paper in the scanner. Scan and view the results. If streaks still appear, repeat steps 3 through 5. The cleaning cloth can be cycled through the scanner up to five times within 30 minutes.

  • Page 91: Troubleshooting

    8. Troubleshooting 8.1 Clearing a Paper Jam In the event of a paper jam, follow the procedures below to remove the paper: To clear a paper jam: Gently pull the paper from the scanner. Smooth out any wrinkles caused by the jam. Reinsert the paper to the paper feed slot.

  • Page 92: Technical Service

    Technical Service Before contact Avision, please prepare the following information: Scanner serial & revision number (located on the bottom of the scanner); Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card, interface card);...

  • Page 93: Specifications

    9. Specifications All specifications are subject to change without notice. Model Number FL-0914S Scanner Type Duplex scanner Light source Technology CIS (Contact Image Sensor) Optical Resolution 600 x 600 dpi Maximum Scanning Size 8.5”x14” Minimum Scanning Size 2.9”x2.1” Paper Weight 13.3~32 lbs (50 ~ 120 g/m...

  • Page 94: Index

    Index Remove Red, Remove Green, Remove Blue, Custom, Ａ 4-18 Color Matching, Additional Length Detection, 4-14 Contrast, Cropping Auto Color Detection Automatic, Fix to Transport, sensitivity, 4-7 4-30 Automatic Multiple, 4-31 EOP Detection, Ｂ Ｄ B&W, default settings, 4-27 4-32 Background Level, Deskew, Background Setting, 4-54...
  • Page 95 Gray, Ｐ , 4-12 Print All, 4-59 Ｉ Intelligent Mode (Skip Ｒ Multi-feeds) Reset Pad Count, 4-62 Disable, By Length, By Position, By Reset Roller Count, 4-62 Length+Position, 4-36 4-16 Invert, Resolution, 4-15 4-49 Rotate Image, Ｊ Ｓ 4-23 JPEG, 4-32 Scan Area, String Orientation...
