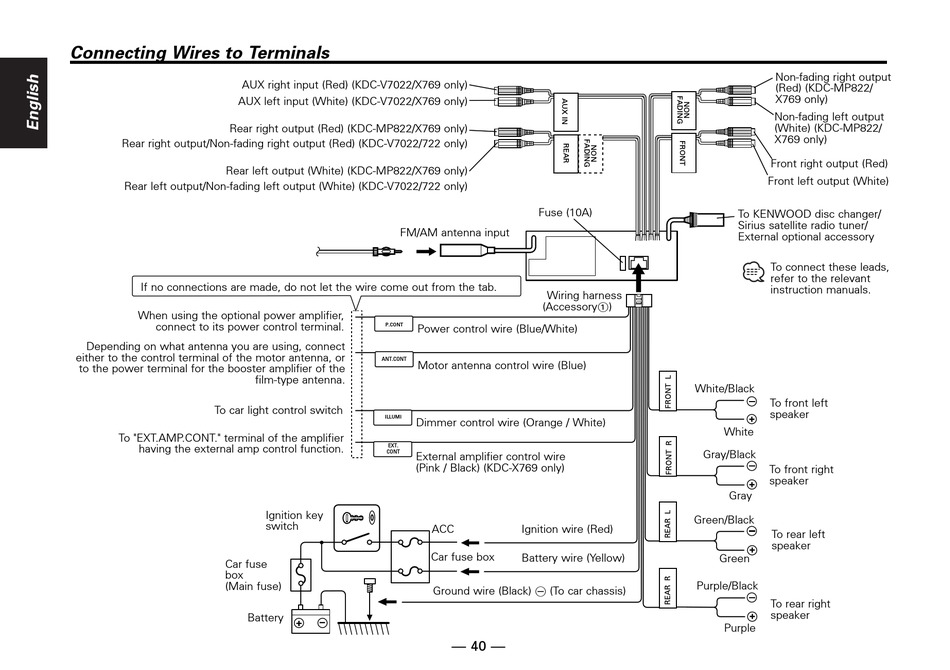

Connecting Wires to Terminals

51 AUX right input (Red) (KDC-V7022/X769 only)
52 AUX left input (White) (KDC-V7022/X769 only)
11 Rear right output (Red) (KDC-MP822/X769 only)
11,10 Rear right output/Non-fading right output (Red) (KDC-V7022/722 only)
10 Rear left output (White) (KDC-MP822/X769 only)
12,29 Rear left output/Non-fading left output (White) (KDC-V7022/722 only)
If no connections are made, do not let the wire come out from the tab.
4 When using the optional power amplifier,
connect to its power control terminal.
5 Depending on what antenna you are using, connect
either to the control terminal of the motor antenna, or
to the power terminal for the booster amplifier of the
7 To car light control switch
8 To "EXT.AMP.CONT." terminal of the amplifier
having the external amp control function.
Car fuse
box
(Main fuse)
42
Battery
43
FM/AM antenna input
P.CONT
Power control wire (Blue/White)
(KDC-__ only) 16
ANT.CONT
Motor antenna control wire (Blue)
(KDC-__ only) 17
film-type antenna.
ILLUMI
Dimmer control wire (Orange / White)
(KDC-__ only) 19
EXT.
CONT
External amplifier control wire
(Pink / Black) (KDC-X769 only)
Ignition key
switch 41
ACC
Car fuse box
Ground wire (Black) - (To car chassis)
–
+
Fuse (10A) 27
15
3a
Wiring harness
(Accessory1)22
20
44 Ignition wire (Red) 46
45
Battery wire (Yellow) 47
48
— 40 —
Non-fading right output
(Red) (KDC-MP822/
X769 only) 12
Non-fading left output
(White) (KDC-MP822/
X769 only) 49
Front right output (Red)
Front left output (White)
To KENWOOD disc changer/
Sirius satellite radio tuner/
External optional accessory
To connect these leads,
refer to the relevant
instruction manuals. 26
28
White/Black
To front left
speaker 29
+
White
31 30
Gray/Black
To front right
speaker 32
+
Gray
33
34
Green/Black
To rear left
speaker 35
+
Green
36
37
Purple/Black
To rear right
speaker 38
+
Purple
39
13
14
25
