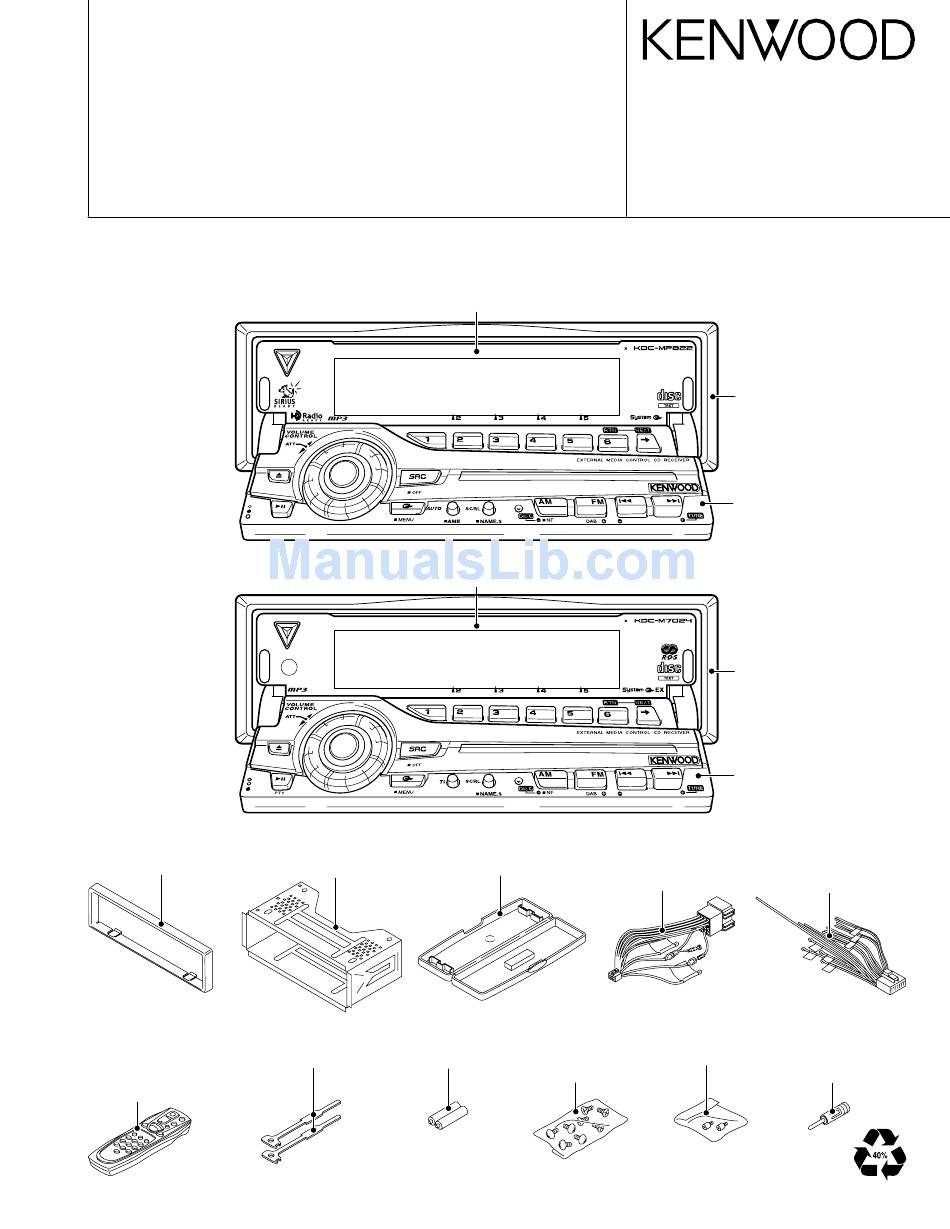

CD RECEIVER

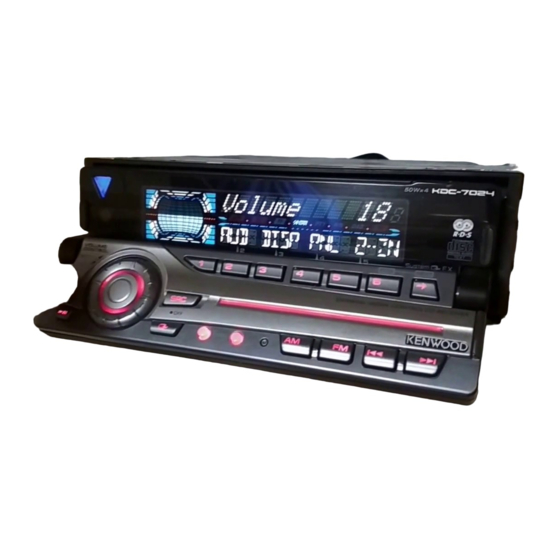

KDC-M7024
KDC-MP822

SERVICE MANUAL

CD mechanism operation description is
not in this service manual.
Please, refer to service manual X92-
4030-0x (B51-7867-00).
Escutcheon
Mounting hardware assy
(B07-3078-01)
(J21-9823-03)
Remote controller assy
Lever
(RC-505)
(D10-4674-04) x 2
(A70-2040-05)
: KDC-MP822
Panel assy
(A64-2978-01): KDC-MP822
Panel assy
(A64-2986-01): KDC-M7024
Plastic cabinet assy
(A02-2731-03)
Size AA battery
Screw set
(Not supplied)
(N99-1723-05)
: KDC-MP822
© 2003-2 PRINTED IN JAPAN
B53-0035-00 ( N ) 3114
CD mechanism extension cord : W05-0935-00
50
W
4
Escutcheon
COMPACT
(B07-3078-01)
DIGITAL AUDIO
Panel assy
(A64-2995-02):
KDC-MP822
50
W
4
Escutcheon
COMPACT
(B07-3078-01)
DIGITAL AUDIO
Panel assy
(A64-3003-02):
KDC-M7024
DC cord (ISO)
(E30-4942-05)
: KDC-M7024
Screw set
(N99-1734-05)
DC cord
(E30-6106-05)
: KDC-MP822
Antenna adaptor
(T90-0552-05)
: KDC-M7024
