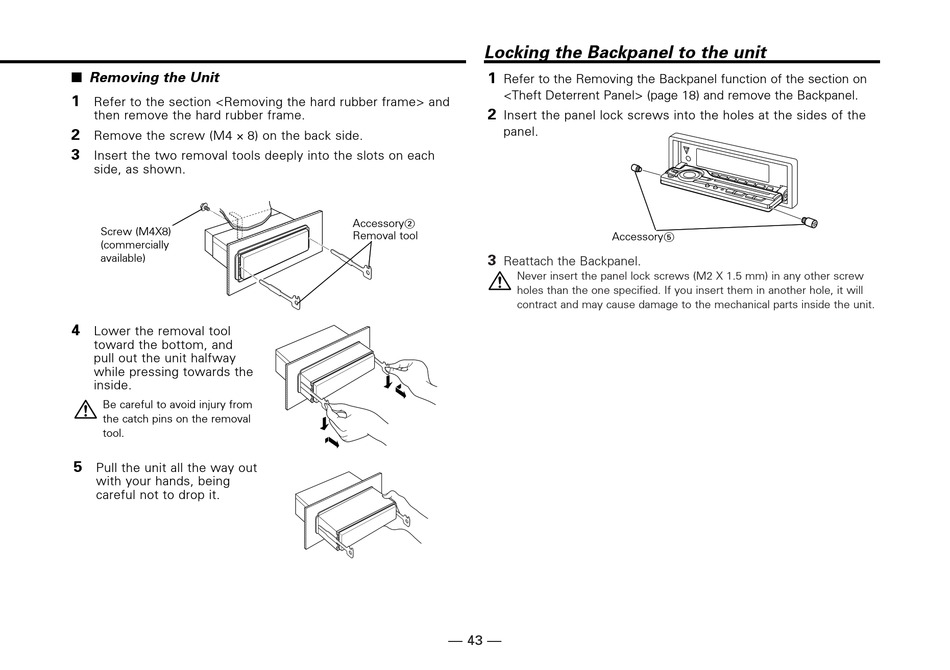

■ Removing the Unit
1
Refer to the section <Removing the hard rubber frame> and
then remove the hard rubber frame.
Remove the screw (M4 × 8) on the back side.
2
3
Insert the two removal tools deeply into the slots on each
side, as shown.
Screw (M4X8)
(commercially
available)
4
Lower the removal tool
toward the bottom, and
pull out the unit halfway
while pressing towards the
inside.
Be careful to avoid injury from
the catch pins on the removal
tool.
5
Pull the unit all the way out
with your hands, being
careful not to drop it.

Locking the Backpanel to the unit

1
Refer to the Removing the Backpanel function of the section on
<Theft Deterrent Panel> (page 18) and remove the Backpanel.
2
Insert the panel lock screws into the holes at the sides of the
panel.
Accessory2
Removal tool
3
Reattach the Backpanel.
Never insert the panel lock screws (M2 X 1.5 mm) in any other screw
holes than the one specified. If you insert them in another hole, it will
contract and may cause damage to the mechanical parts inside the unit.
— 43 —
Accessory5
