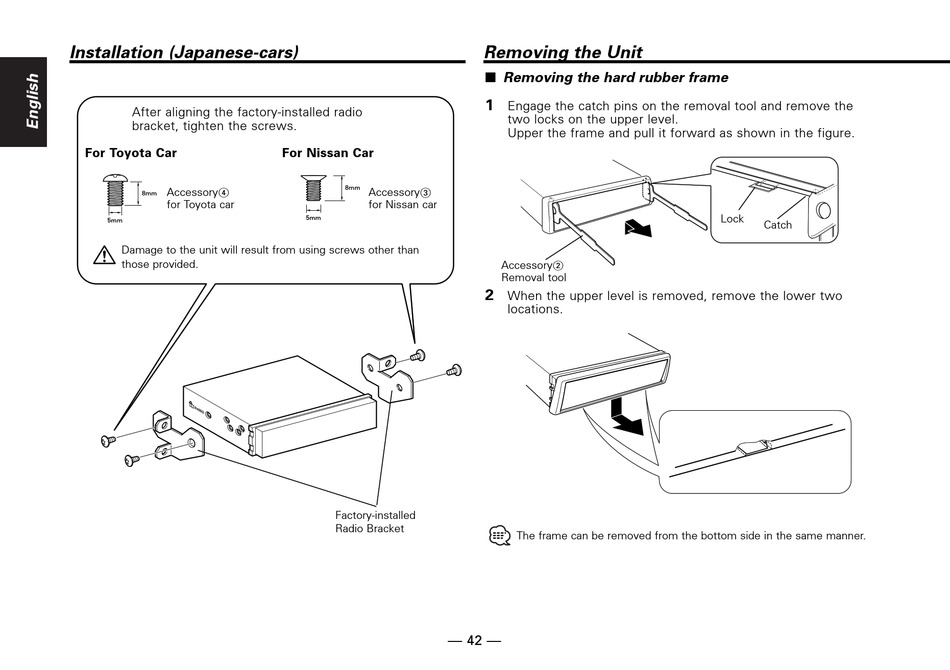

Installation (Japanese-cars)

After aligning the factory-installed radio
bracket, tighten the screws.
For Toyota Car
Accessory4
8mm
for Toyota car
5mm
Damage to the unit will result from using screws other than
those provided.
For Nissan Car
8mm
Accessory3
for Nissan car
5mm
Factory-installed
Radio Bracket
— 42 —

Removing the Unit

■ Removing the hard rubber frame
1
Engage the catch pins on the removal tool and remove the
two locks on the upper level.
Upper the frame and pull it forward as shown in the figure.
Accessory2
Removal tool
2
When the upper level is removed, remove the lower two
locations.
The frame can be removed from the bottom side in the same manner.
Lock
Catch
