Ambient Air Temperature/
Engine Temperature:
Vector displays different temperature information on each of the three
normal mode screens.
Screen 1: Engine temperature
Screen 2: Air (ambient) temperature
Screen 3: Displays maximum engine temperature received by the
sensor since the last reset

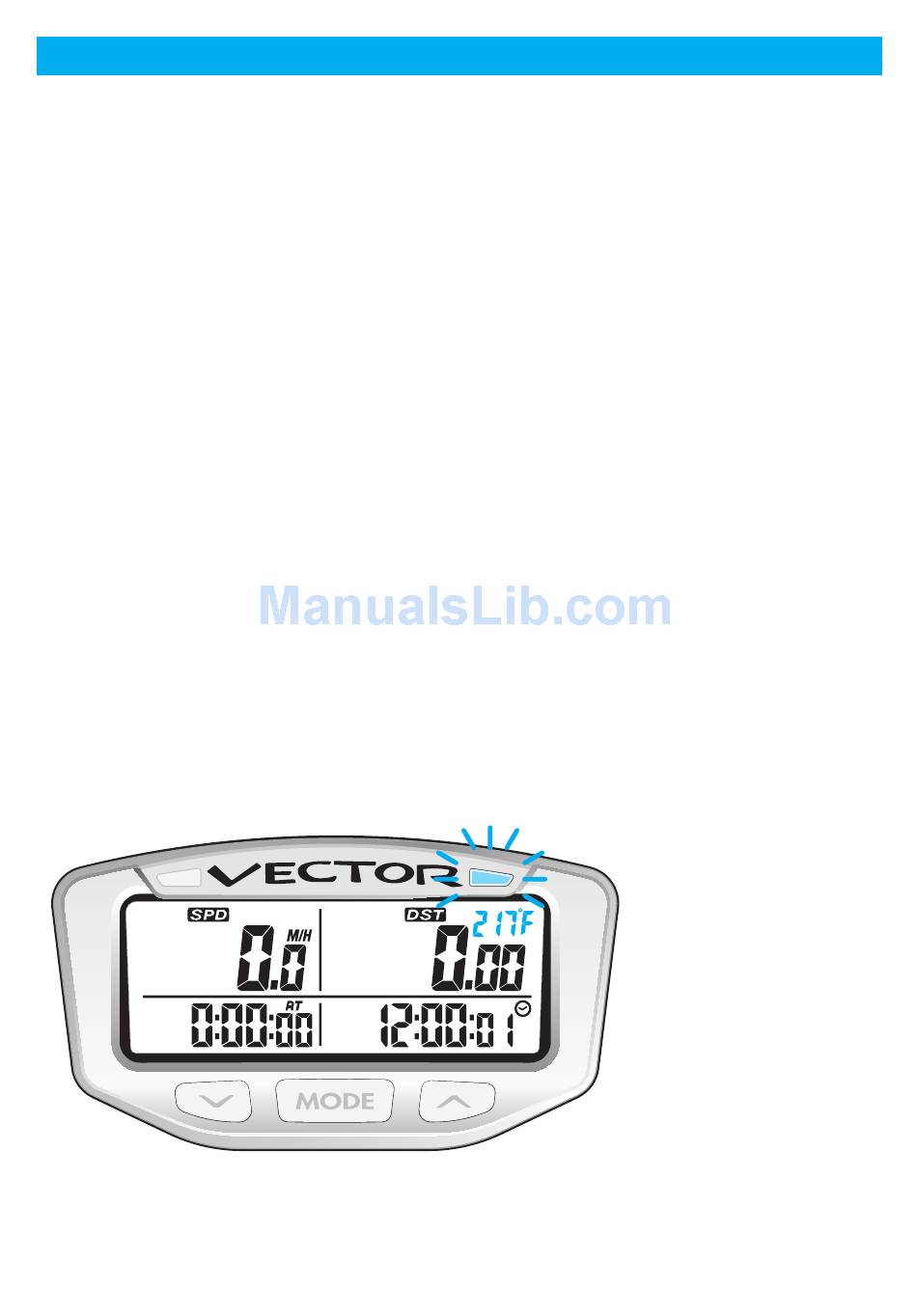

Temperature LED's:
• When Temperature reaches Vector's High Temp Setting, the left
LED will light, signaling the bike is starting to get too hot.
• When Temperature reaches Vector's Danger Temp Setting, the
right LED will light, signaling the bike is dangerously hot.
• Temperature measurements use user defined values to advise
when the engine is getting too hot. Temperature cut-off values
must be programmed manually. See page 22.
• Vector must be connected to external power or LED's will not
function.
Vector will display "- -" for engine temperature
until the temperature reaches 100ºF (38ºC.)
32
Vector Features
RIGHT LED:
Over-Temp Alert
LEFT LED:
Temperature
Caution Alert
