Motorcycle Sensor/Magnet Installation:

Motorcycles, like ATV's,
need a magnet placed on
the spinning part of the
wheel and the sensor
installed to a non-spinning
part.
The magnet typically gets
bolted or glued to the
brake rotor.
The sensor wire should
come from the back of the
computer, be cable-tied to
the brake line as it travels
down the front forks, then
attached to the brake
caliper.

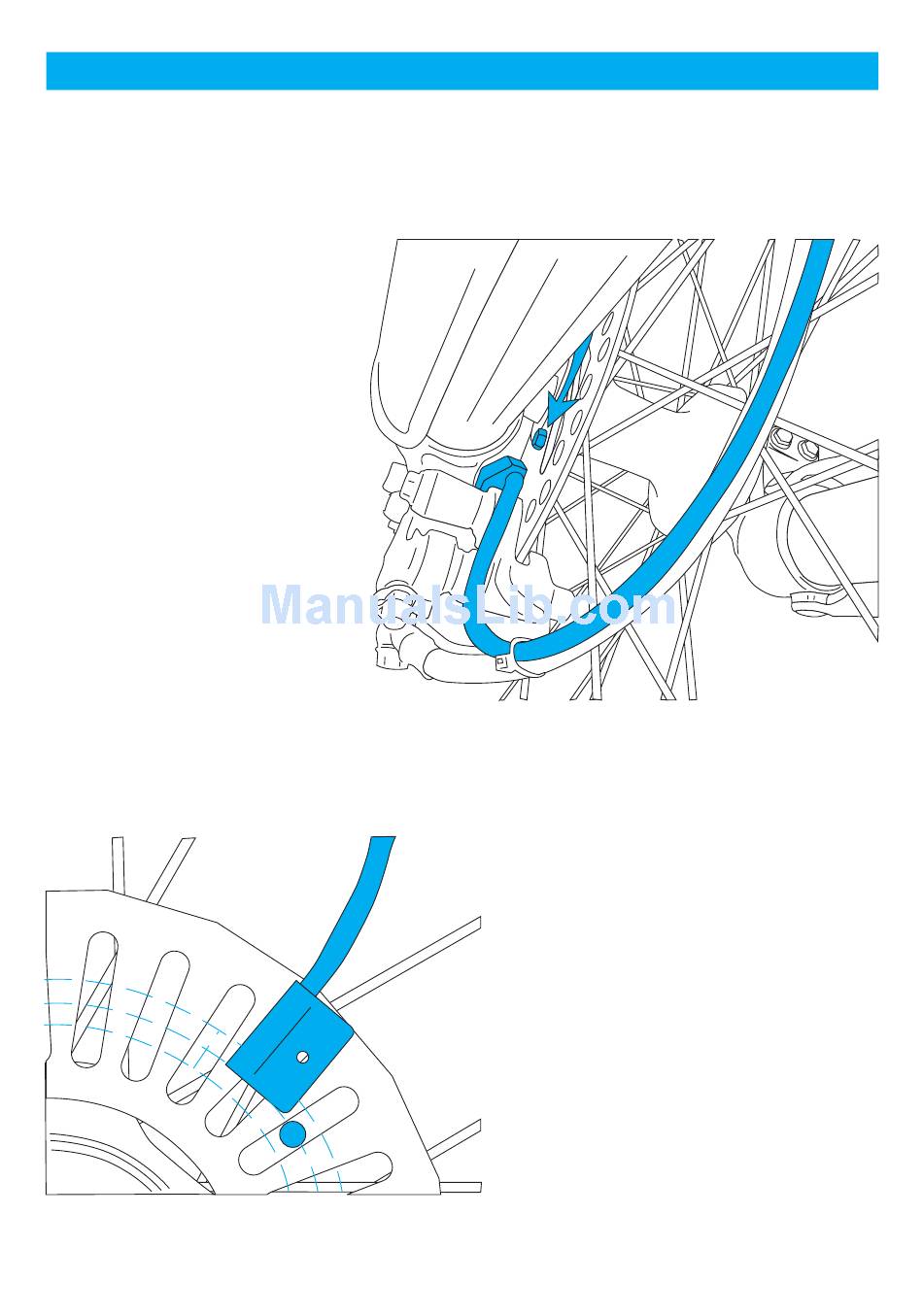

Optimum Magnet Rotation Path
Magnet About to Pass Under Sensor
Vector can tell how far and fast
it's traveled by keeping track of
how many times the magnet
passes under the sensor switch.
Many Motorcycles and ATV's
have special installation
procedures. Refer to the
provided installation insert for
specific instructions for your
machine or visit
www.TrailTech.net.
