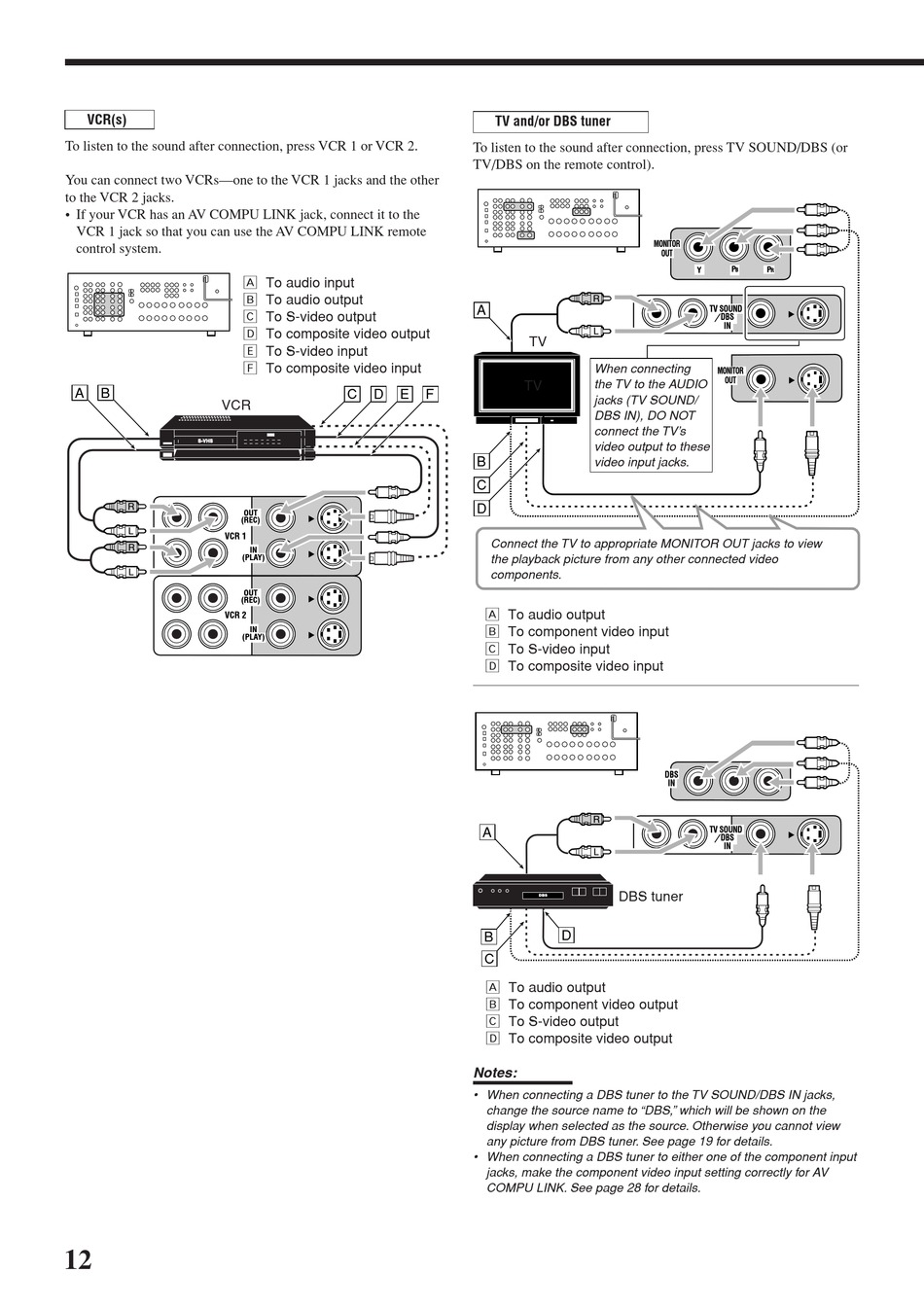

VCR(s)
To listen to the sound after connection, press VCR 1 or VCR 2.
You can connect two VCRs—one to the VCR 1 jacks and the other
to the VCR 2 jacks.
• If your VCR has an AV COMPU LINK jack, connect it to the
VCR 1 jack so that you can use the AV COMPU LINK remote
control system.
A B
VCR
R
L
VCR 1
R
L
VCR 2
12
Å To audio input
ı To audio output
Ç To S-video output
Î To composite video output
‰ To S-video input
Ï To composite video input
C D E
OUT
(REC)
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
TV and/or DBS tuner
To listen to the sound after connection, press TV SOUND/DBS (or
TV/DBS on the remote control).
R
A
L
TV
When connecting
TV the TV to the AUDIO
F
jacks (TV SOUND/
DBS IN), DO NOT
connect the TV's
video output to these
B
video input jacks.
C
D
Connect the TV to appropriate MONITOR OUT jacks to view
the playback picture from any other connected video
components.
Å To audio output
ı To component video input
Ç To S-video input
Î To composite video input
R
A
L
DBS
D
B
C
Å To audio output
ı To component video output
Ç To S-video output
Î To composite video output
Notes:
• When connecting a DBS tuner to the TV SOUND/DBS IN jacks,
change the source name to "DBS," which will be shown on the
display when selected as the source. Otherwise you cannot view
any picture from DBS tuner. See page 19 for details.
• When connecting a DBS tuner to either one of the component input
jacks, make the component video input setting correctly for AV
COMPU LINK. See page 28 for details.
MONITOR
OUT
P P
Y
B R
TV SOUND
DBS
IN
MONITOR
OUT
DBS
IN
TV SOUND
DBS
IN
DBS tuner
