JBL Application Engineered Series Application Manual page 14

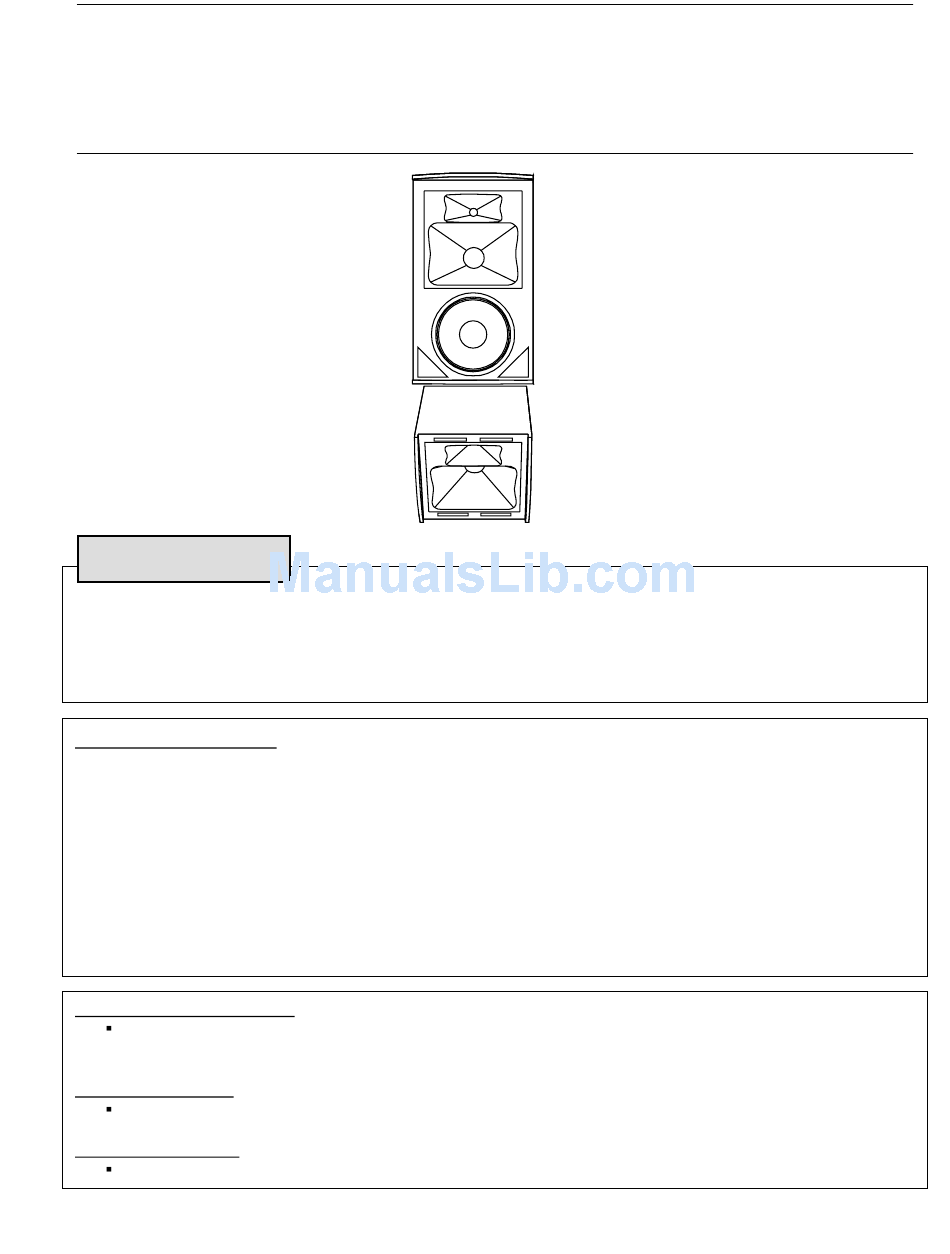

Array A2
A O
RRAY VERVIEW
This array is a good choice for small to medium-sized rooms as part of a Left/Right or
•
exploded cluster system. The configuration is particularly appropriate for use left and right of
the proscenium opening for speech or speech + music program requirements.
This system may be augmented with ground supported subwoofers. (e.g. ASB6128)
•
Array Specifications
Loudspeakers: (1) AM6315/64, (1) AM6200/95 downfill
•
Medium Power Solution: (1) AM4315/64, (1) AM4200/95 downfill
•
Overall Coverage: 60°/90° horizontal x 85° vertical
•
Downfill enclosure vertical splay angle: -50°
•
Frequency range: 38 Hz – 19 kHz
•
Maximum SPL (1 meter equivalent): LF: 125, MF/HF: 133 dB-SPL cont. avg.
•
Power)
Total Power Capacity: 1700W
•
Overall Dimensions: 65.5" H x 22.1" W x 31" D (1664 x 562 x 788mm)
•
• Total Loudspeaker Weight: 171 lbs. (77.5kg)
Recommended Amplification:
AM6315: LF: 1 ch. 1250W [Crown CTs3000], AM6315 M/H: 1 ch. 600W [Crown CTs1200]
AM6200: 1 ch. 600W [Crown CTs1200]
Medium Power Solution: AM4315: 1 ch. 600W [Crown CTs1200], AM4200: 1 ch. 300W [Crown CTs600]
Recommended DSP:
3 channels required
BSS FDS-366, BSS SoundWeb]
Available Accessories
3 pc. M10 x 35mm Forged Shouldered Eye-Bolt Kit (JBL part #229-00009-01)
Two-element Vertical Array in Long-Throw/Short-
Application Engineered 3-way 15" and Mid-High loudspeakers
(40z – 23 kHz for Medium Power)
(475W for Medium Power)
(2 channels for Medium Power)
-14-
oriented and splayed vertically
(165 lbs. (75kg) for Medium Power)
. [Crown PIP-USP3, dbx Driverack, BSS FDS-334,
Throw Configuration
(124 dB-SPL for Medium
