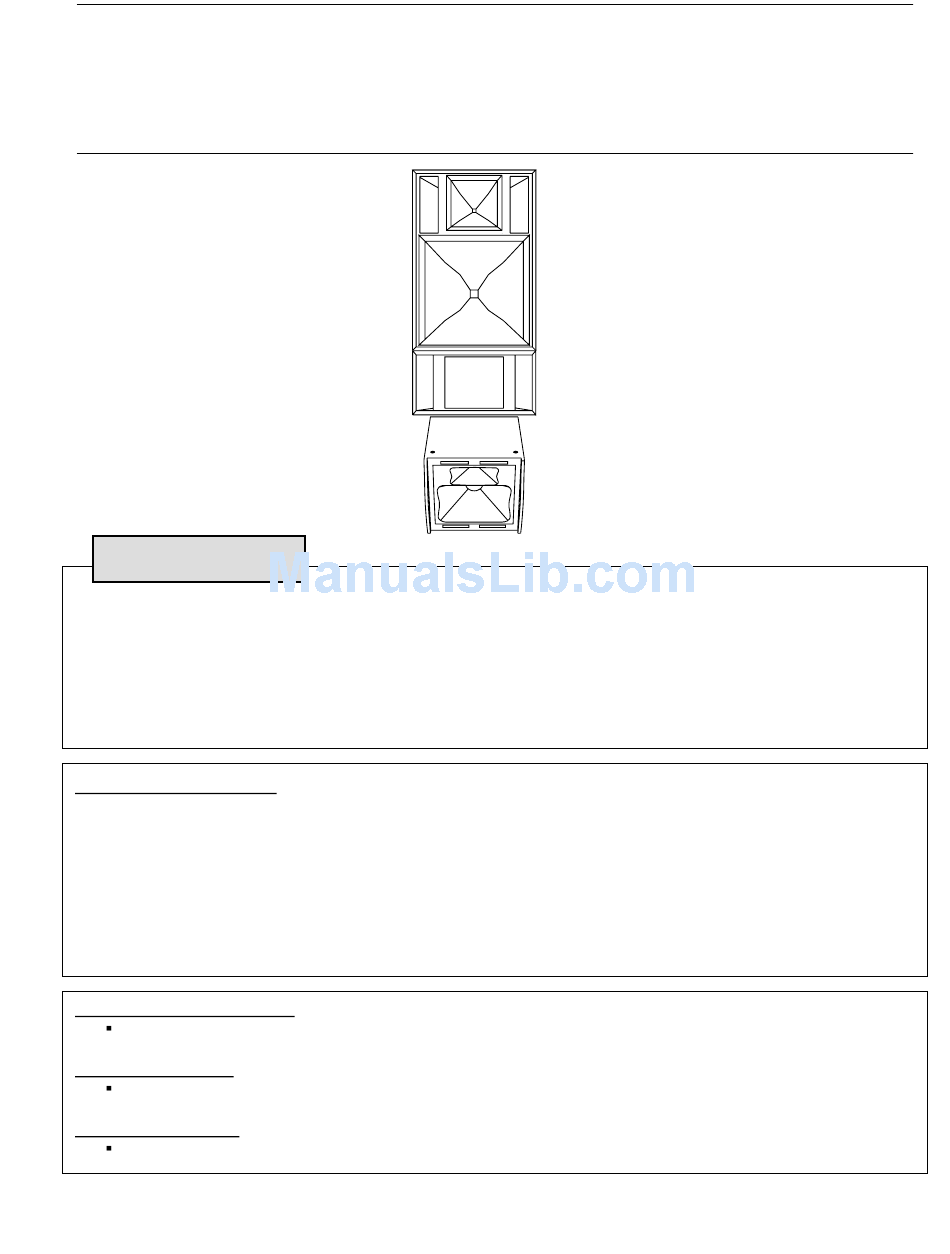

Array A4
A O
RRAY VERVIEW
This array is an excellent choice for larger rooms as part of a Left/Right or exploded cluster
•
system where high SPL levels and excellent gain before feedback are required.
Spaced-Source Bipole low-frequency driver arrays combine with the large mid-frequency
•
waveguide to maintain pattern control through 125Hz.
more information about PD5322/PD5122 LF steering). Also see page 18.
This system may be augmented with ground supported subwoofers. (e.g. ASB6128V)
•
Array Specifications
Loudspeakers: (1) PD5322/64 or /95, (1) PD5122, (1) AM6200/95 downfill
•
Overall Coverage: 60°/90° horizontal x 85° vertical
•
Downfill enclosure vertical splay angle: -50°
•
• Frequency range: 41 Hz – 19 kHz
Maximum SPL (1 meter equivalent): LF: 134, MF/HF: 134 dB-SPL continuous average
•
Total Power Capacity: 3900w
•
Overall Dimensions: 82" H x 26.5" W x 29" D (2077 x 673 x 737mm)
•
Total Loudspeaker Weight: 314 lbs. (142.5kg)
•
Recommended Amplification:
PD5322 LF 1 ch. 2000w [Crown I-T4000], PD5322 M/H: 1 ch. 600w [Crown CTs1200], PD5122: 1 ch.
2000w [Crown I-T4000], AM6200: 1 ch. 600W [Crown CTs1200]
Recommended DSP:
3 channels required. [Crown PIP-USP3, Crown I-Tech, dbx Driverack 260, BSS FDS-334, BSS FDS-366
BSS SoundWeb]
Available Accessories
3 pc. M10 x 35mm Forged Shouldered Eye-Bolt Kit (JBL part #229-00009-01)
Full Range array with Integrated, Bipole Low Frequency
Application Engineered vertically splayed mid-high downfill
-16-
Precision Directivity 3-way loudspeaker with
(see JBL Technote Volume 1, No. 32 for
