JBL Application Engineered Series Application Manual page 8

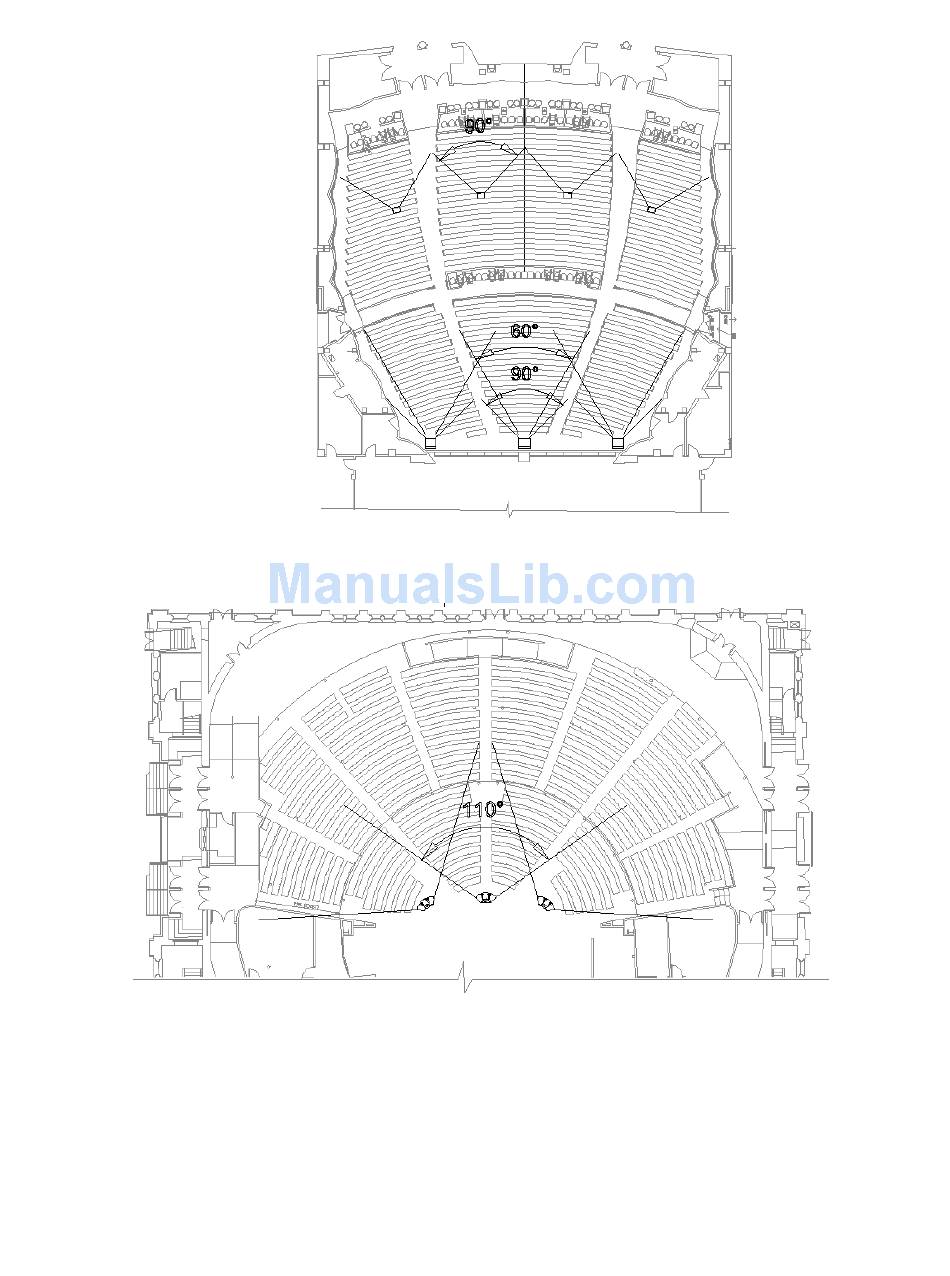

Figure 5: Array E3 (p. 25) used in an exploded
configuration in a fan-shaped room
Some of the array types described have subwoofers integrated into the array; others do
not. Of course, subwoofers are often a requirement for this kind of system and can
always be flown adjacent to the arrays or ground supported.
Figure 4: Array G4 (p. 34) used in an
exploded configuration in an auditorium
-8-
