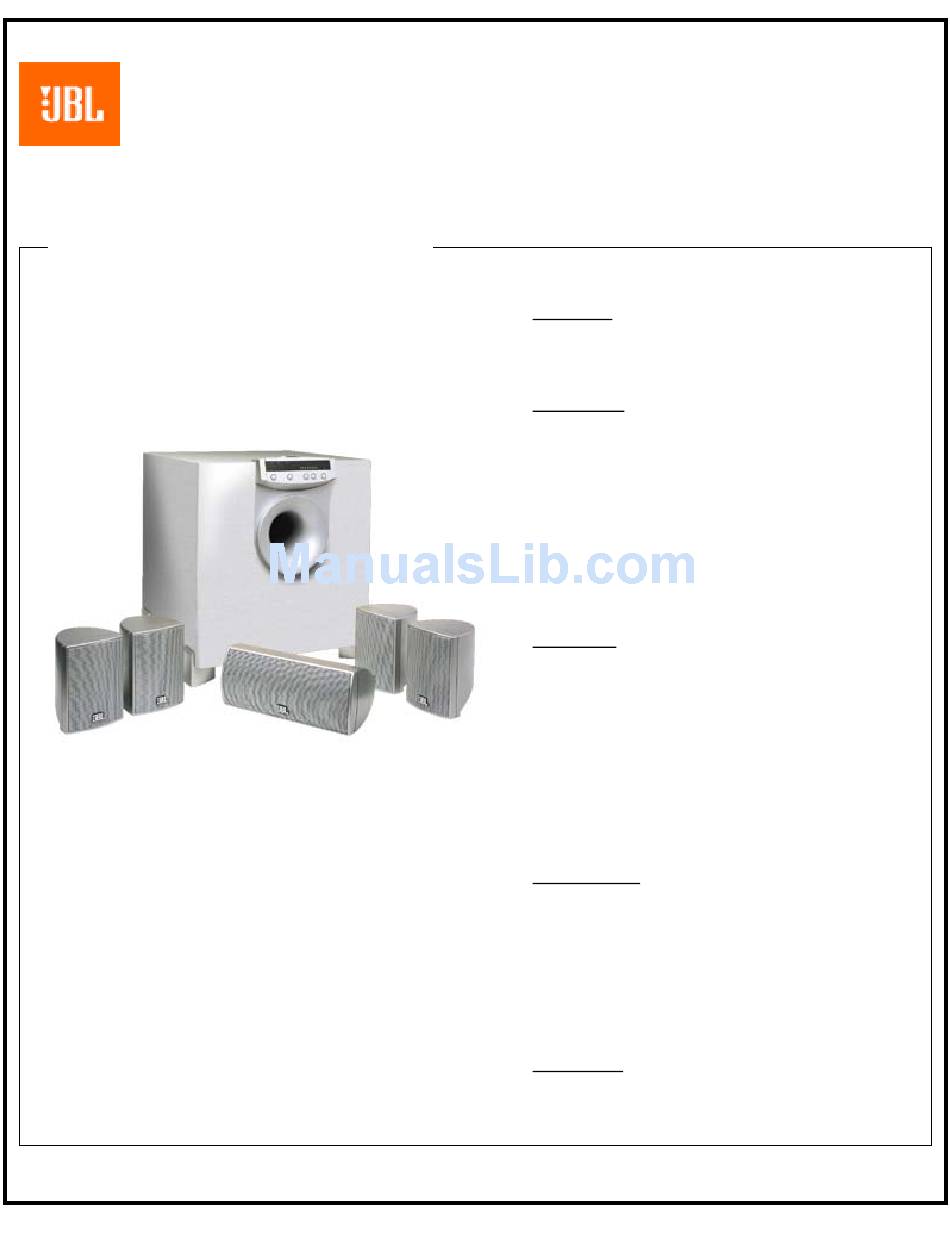

JBL ESC 360 Service Manual

Hide thumbs

Advertisement

ESC 360
Service Manual

SPECIFICATIONS:

Audio Section
Surround Formats: Dolby Digital - DTS - Dolby Pro Logic
Frequency Response at 1W (+0dB, -3dB): 55Hz - 20 kHz
Signal-to-Noise Ratio (IHF-A): 80 dB
Satellite Section
Frequency Response (-6db): 120 Hz-20 kHz
Sensitivity (2.83V @ 1m): 84 dB
Nominal Impedance: 4 Ohms
Recommended Amplifier Power: 25 Watts RMS (in sub)
Titanium Laminate HF: 12 mm
Paper Cone Midrange : 75 mm
Dimensions (H x W x D): 111 x 81 x 92 mm
Weight: 0.5 kg
Finish: silvergray
Center Section
Frequency Response (-6db): 120 Hz-20 kHz
Sensitivity (2.83V @ 1m): 86 dB
Nominal Impedance: 4 Ohms
Recommended Amplifier Power: 25 Watts RMS (in sub)
Titanium Laminate HF: 12 mm
Paper Cone Midrange : dual 75 mm
Dimensions (H x W x D): 83 x 194 x 95 mm
Weight: 0.8 kg
Finish: silvergray
Subwoofer Section
Low Frequency Cut-off: 40 Hz
High Frequency Cut-off: 160 Hz
Built-in Power Amplifier (RMS): 25 Watts x 5 + 60 Watts
Paper Cone Long Throw Driver : 165 mm
Dimensions (H x W x D): 315 x 300 x 310
Weight: 7.2 kg
Finish: silvergray
General Section
Power Requirement: 230V/50-60Hz
Power Consumption: 80 Watts

Advertisement

   Related Manuals for JBL ESC 360

   Summary of Contents for JBL ESC 360

  • Page 1: Specifications

    ESC 360 Service Manual SPECIFICATIONS: Audio Section • Surround Formats: Dolby Digital - DTS - Dolby Pro Logic • Frequency Response at 1W (+0dB, -3dB): 55Hz - 20 kHz • Signal-to-Noise Ratio (IHF-A): 80 dB Satellite Section • Frequency Response (-6db): 120 Hz-20 kHz •...
  • Page 2: Tweeter

    ESC 360 CENTER SPEAKER : AFK200003-0001 BPA400007-01011 IVM110001-0001 APE200080-0001 TWEETER FSA243010-1801 YLB1060003-0002 BRF400006-0001 BRF400005-0001 HSP140054-1080 BPF405006-01011 BPL40003-0102 FSA213012-1801 HSP140071-3160 GSP400008-0101...
  • Page 3: Tweeter

    ESC360 SATELLITE : AFK200002-0001 BPA400004-0101 IVM000002-0004 TWEETER FSA243010-1801 BRF400006-0001 BRF400005-0001 APE200040-0001 BPF405003-0101 FSA213012-1401 GSP400002-0102 BPL400003-0102...
  • Page 4 EXPLODED VIEW JBL ESC 360...
  • Page 5: Hsp140071

    PORT EDGE ABS W/SPRAY MA4810 BPR000042-0BA0 PORT (F) ABS MA4810 BPF005056-0AY1 CNTL PANEL METALIC LIGHT GREY SILVER BFP211001-0001 PVC PLATE BPL000013-0001 LOGO PLATE 22.5xW18mm JBL BPK005031-0000 CONTROL KNOB W/SPRAY MA4810 APE200140-4001 CNTL PCB ASSY (HI) IVE200001-0001 SPONGE OD165xID143xT1.0mm FSA226061-1401 SPK DRIVER 6.5" 4OHM 60W...
  • Page 6 Main Installation Point Qty. Description Material No. MAIN PCB ASSY HI APE200061-4001 IC302 IC 14 PIN TL074CD RCI000740-0001 IC621 IC622 IC623 IC701 IC 8 PIN TL072CD RCI000720-0001 IC620 IC 42 PIN M62446FP MITSUBISHI RCI062446-0001 IC301 IC 16 PIN TC4052BFN CHIP RCI004052-0001 IC201 IC 44 PIN TC9819 U-CON V2 MASK...
  • Page 7 C109 C305 C306 C311 COND ELECT 47uF 25V PRE039550-4700 C312 C315 C316 C319 C320 C327 C209 C527 C330 COND ELECT 10 uF 50V PRE039570-1000 C104 C108 C201 C323 C324 COND ELECT 1uF 50V PRE039570-1090 C765 C785 COND ELECT 100uF 10V PRE039530-1010 C768 COND ELECT 100uF 16V...
  • Page 8 C623 C624 CHIP CAP 0.0022 uF 50V 5% PYL456370-2220 C719 C507A C508A C416A C651A C652A CHIP CAP 47 pF 50V 5% PYL410370-4700 C726 CHIP CAP 0.022 uF 50V 5% PYL456370-2230 C413 C501 C502 C352 C354 C353 C355 CHIP CAP 0.0022 uF 50V 5% PYL456370-2220 C411 C412 C620 C622 C619 C621 C722...
  • Page 9: Ape200061

    IC901 IC 3 PIN 7815 15V 1A RHI007815-0001 IC902 IC 3 PIN AN7915T SAMSUNG RHI007915-0001 Q906 XISTR PNP 2SA733Q,P NEC RAP200733-0001 D913 DIODE 1N4002 1A 70VRMS RAD114002-0010 BD904 BRIDGE RECTIFIER;RS402L 4A 100V UL RHD204010-0010 BD901 BRIDGE KBU808 8A 800V UL RHD208080-0010 BD902 BD903 BRIDGE RS202L 2A 100V UL...
  • Page 10: Rcn200945

    R243 R244 RESISTOR 390 OHM 1/6W 5% CF QAF065000-3910 R242 RESISTOR 470 OHM 1/6W 5% CF QAF065000-4710 TA201 TA202 TA203 TA204 TA205 AI TACT SW SKHVBE3520 MAW060001-0010 LED HOLDER BPH000054-0000 LED interface pcb Installation Point Qty. Description Material No. LED INTERFACE PCB ASSY HI APE200065-4001 IC202 IC203 IC204 IC 16 PIN TC4094BFN TOSHIBA...
  • Page 11: Qcf015020

    C24 C25 CHIP CAP 0.0068 uF 50V 10% PYL456470-6820 C77 C78 COND ELECT 10uF 25V PRE039550-1000 COND ELECT 1uF 50V PRE039570-1090 COND ELECT 2.2 uF 50V PRE039570-2290 C42 C43 C44 C45 C46 CHIP CAP 220 pF 50V 5% PYL410370-2210 C47 C48 C49 C50 C51 C52 CHIP CAP 330 pF 50V 5% PYL410370-3310 CHIP CAP 470 pF 50V 5%...
  • Page 12: Gse200012

    LOGO PLATE 22.5xW18mm JBL BPL000013-0001 PORT EDGE ABS W/SPRAY MA4810 BPR000020-0001 PORT (F) ABS MA4810 BPR000042-0BA0 BUSHING AC LINE BUSHING FOR BLACK FOR POWER WIRE DBU001002-0011 WIRE 22 GA 90mm RED 4-4 FOR POWER SW-2 VWR0333BB-0090 TUBING SRK DIA=6 L=20mm BLACK POWER SW TO POWER FUSE HOLDR DTB006000-0200 SCREW DRIVER TO WOOD BOX-4.
  • Page 18 U 12 CS4926...
  • Page 19 U14 CS4226...
  • Page 20 TDA7265A LM3886...
  • Page 21 M62446...
  • Page 23 D+5V OPTCAL 1 330P 100uH RX178A 220P OPTCAL 2 TL072 TL072 R110 R111 100uH RX178A 47/10 1u/50 100/16 100/16 2SC1623 4700P 3300P COAXICAL 1 R133 -15V -15V 2SC1623 OPTION COAXICAL 2 OPTION OPTION TL072 330P TL072 220P 0.0068 TL072 CMOUT CMOUT TL072 R132...
