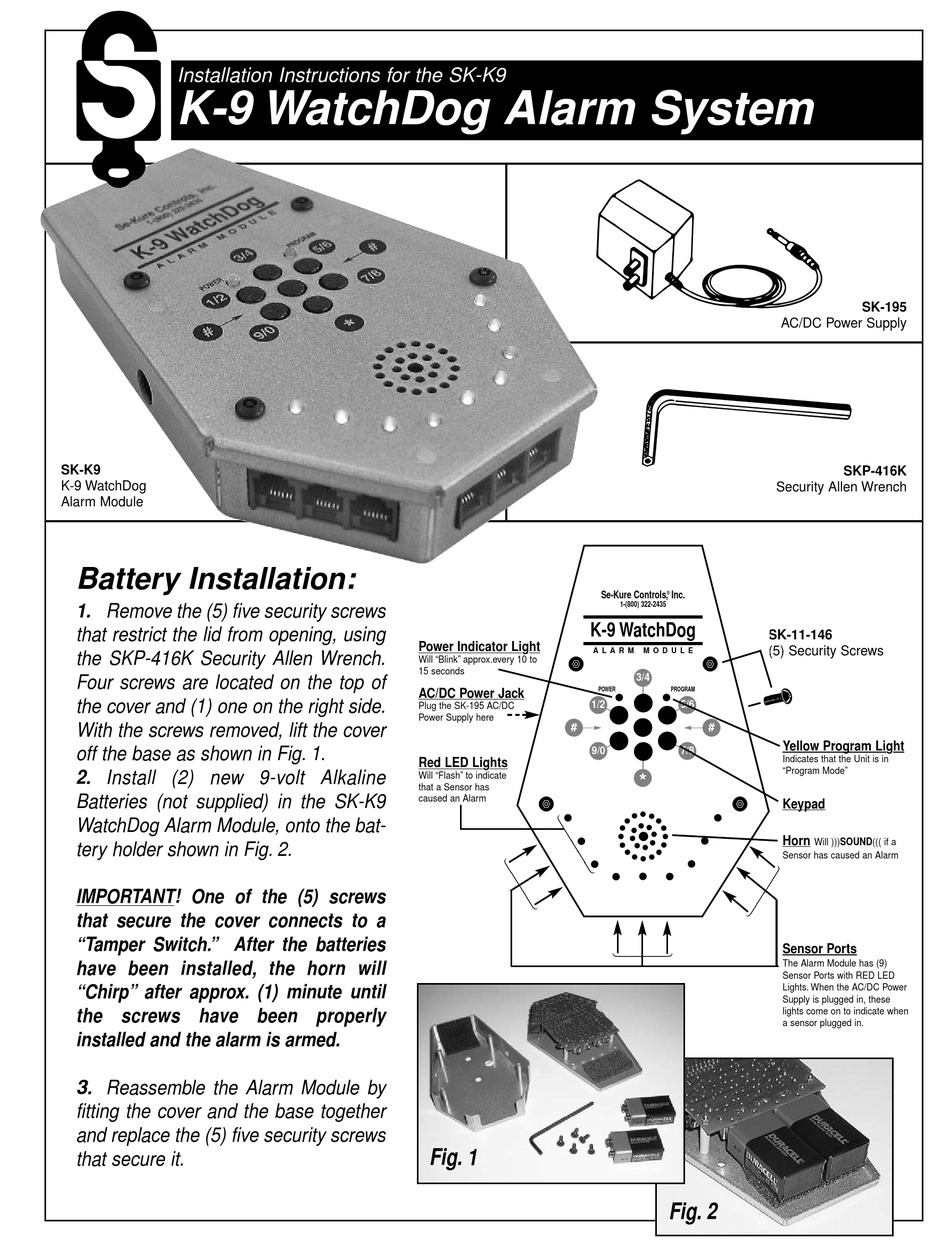

Se-Kure Controls K-9 WatchDog Installation Instructions

Installation Instructions for the SK-K9
K-9 WatchDog Alarm System
SK-K9
K-9 WatchDog
Alarm Module

Battery Installation:

1. Remove the (5) five security screws
that restrict the lid from opening, using
the SKP-416K Security Allen Wrench.
Four screws are located on the top of
the cover and (1) one on the right side.
With the screws removed, lift the cover
off the base as shown in Fig. 1.
2. Install (2) new 9-volt Alkaline
Batteries (not supplied) in the SK-K9
WatchDog Alarm Module, onto the bat-
tery holder shown in Fig. 2.
IMPORTANT! One of the (5) screws
that secure the cover connects to a
"Tamper Switch." After the batteries
have been installed, the horn will
"Chirp" after approx. (1) minute until
the screws have been properly
installed and the alarm is armed.
3. Reassemble the Alarm Module by
fitting the cover and the base together
and replace the (5) five security screws
that secure it.
K-9 WatchDog
Power Indicator Light
A L A R M
Will "Blink" approx.every 10 to
15 seconds
POWER
AC/DC Power Jack
1/2
Plug the SK-195 AC/DC
Power Supply here
#
9/0
Red LED Lights
Will "Flash" to indicate
that a Sensor has
caused an Alarm
Fig. 1
Security Allen Wrench
Se-Kure Controls, ® Inc.
1-(800) 322-2435
SK-11-146
(5) Security Screws
M O D U L E
3/4
PROGRAM
5/6
#
7/8
*
1443
Fig. 2
SK-195
AC/DC Power Supply
SKP-416K
Yellow Program Light
Indicates that the Unit is in
"Program Mode"
Keypad
Horn
Will )))SOUND((( if a
Sensor has caused an Alarm
Sensor Ports
The Alarm Module has (9)
Sensor Ports with RED LED
Lights. When the AC/DC Power
Supply is plugged in, these
lights come on to indicate when
a sensor plugged in.
