Se-Kure Controls SK-T6 Installation & Operation Instructions

Installation & Operation Instructions for the
SK-T6 ALARM MODULE

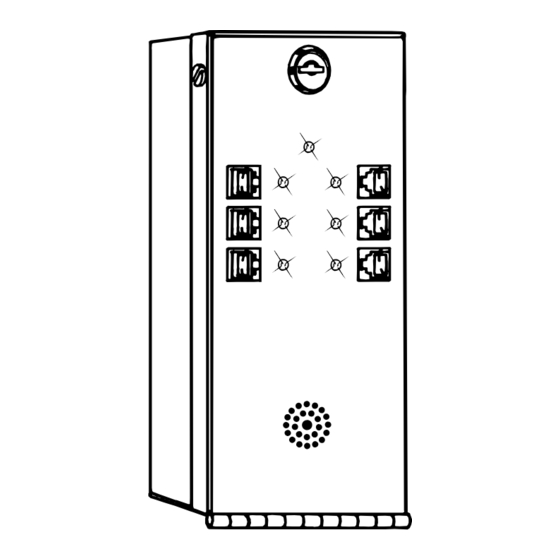

SK-T6
6 Port T-6 Alarm Module
(6) "AA" Alkaline Batteries
(Not Included)
SK-110
Extra Key
SK-195
AC/DC Power Supply
Se-Kure Controls,
3714 Runge Street • Franklin Pk., IL 60131 • 1-(800) 322-2435 • (847) 288-1111 • Fax (847) 288-9999
AC Power & Battery Installation:
1. Unlock the cover and open the lid.
2. Install (6) NEW "AA" Alkaline Batteries in the
SK-T6 Alarm Module, onto the battery holder as
shown at right.
VERY IMPORTANT! When installing the batteries,
follow the polarity indicated on the battery holder.
3. Close the lid.
4. To install the AC/DC Power Supply, plug the unit
into any standard 110-115v outlet, and the other end
into the AC/DC Power Supply Jack on the Alarm
Module.
Note: The AC/DC Power Supply: is the primary power source and pro-
vides the power for the sensor lights. If power is cut off, the sensor lights will
go out, but the alarm remains active and will )))sound((( if battery is good.
Check battery condition regularly.
The Battery: provides back-up power to the Alarm Module. If power is cut
off, or the AC/DC Power Supply is removed, the Alarm transfers to battery
operation. Alarm will not sound when AC power is cut off, but remains active
and will )))sound((( without AC power in an alarm condition.

Alarm Module Testing:

5. Install an "LE" sensor into any of the (6) sensor ports, making sure the
sensor is "closed." Turn the key to the LEFT "ON" position.
Special Note: The key can only be removed in the "ON" position.
WHEN THE UNIT IS TURNED ON: each port that has a sensor plugged into
it will flash for about (5) seconds. At the end of (5) seconds, the green light
at the top of the Alarm Module will flash once and remain on if AC power is
available.
The Red Light(s) Flashing for (5) Seconds Indicates: that the unit has
located that sensor and it is "working correctly." In the Battery Mode the
Green Light that Flashes every (5) Seconds Indicates: that the unit is con-
stantly checking the condition of the batteries, and they are in GOOD condi-
tion.
Low Battery Indication: The GREEN indicator light will continually flash
along with a "BEEP" from the horn.
® Inc.
©2001 Se-Kure Controls, ® Inc. Rev. 5/4/01
When
installing
batteries be
sure to
follow the
POLARITY
marked on
the battery
holder
SCI-9610
