Se-Kure Controls Klothing Kontrols SK-3600 Series Installation Instructions

Installation Instructions for the
Klothing Kontrols Alarm
Lights:
Green LED Light–
"Flashes"
Every 10 Seconds to Indicate
Unit Is Operating
Red LED Lights–
"Flash"
To Indicates which Sensor
Caused an Alarm
Yellow LED Light–
Indicates
That The Unit Is In "Program
Mode"
Note: The Cover Screws
Must Be Installed For
Alarm To Operate.
(Remove these (2) screws
to install batteries. Close
cover and replace screws).

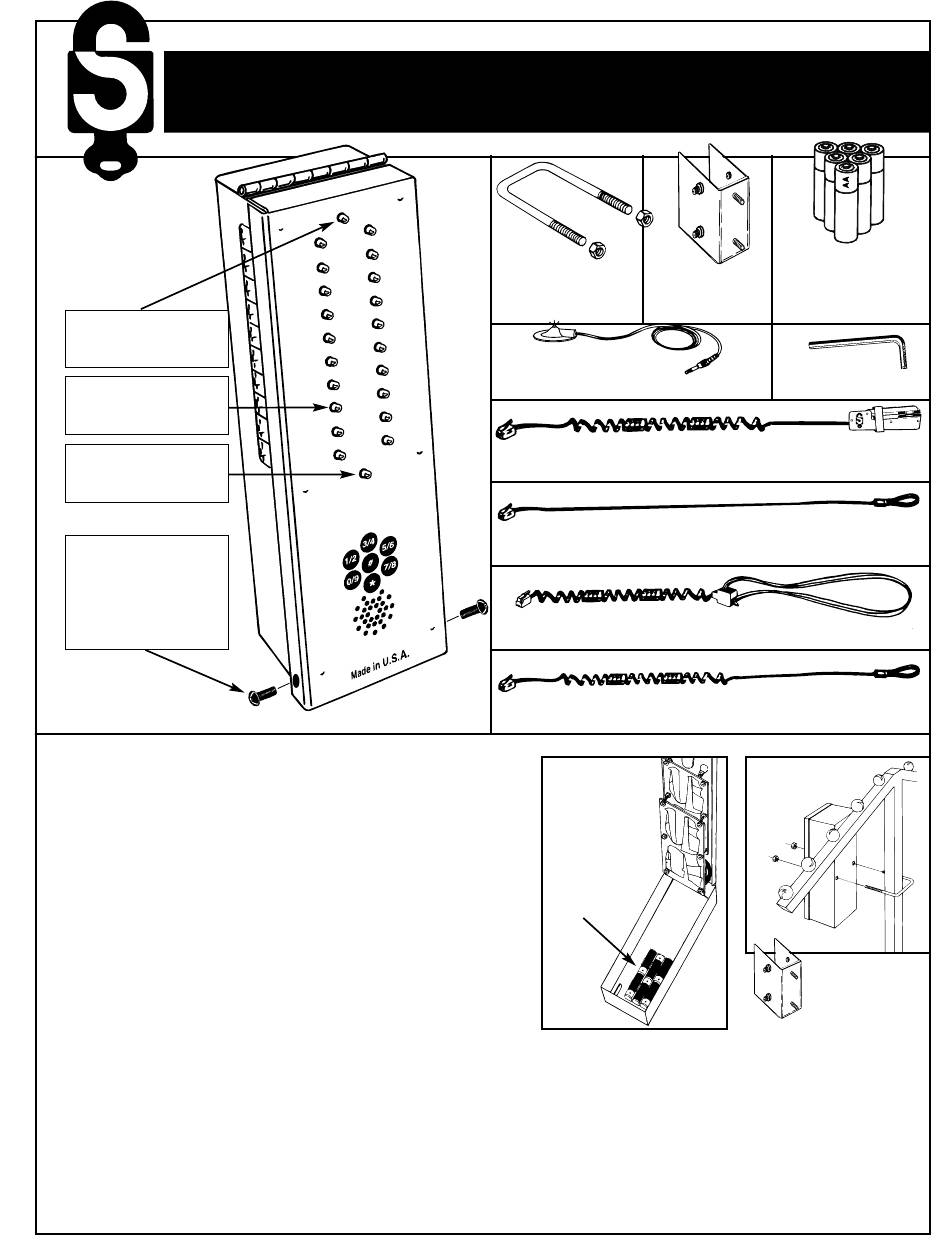

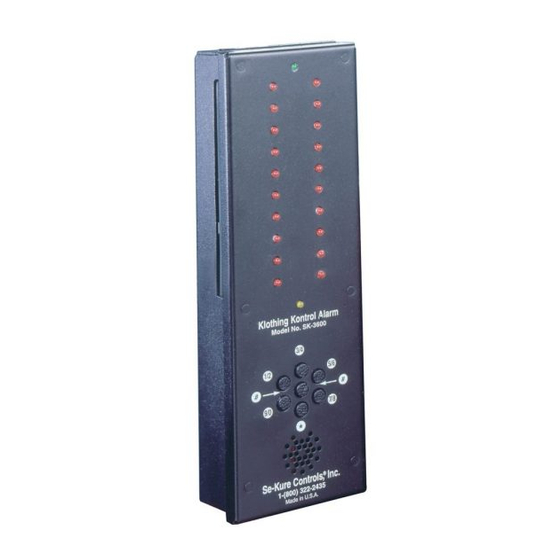

SK-3600
Klothing Kontrol
Alarm Module
Battery & U-Bolt Installation:
1. Remove the two security screws that restrict the lid from opening, using
the SKP-416K Security Allen Wrench. These screws are located at the bot-
tom of the cover on each side. With the screws removed, open the cover.
2. Install six (6) new "AA" Alkaline Batteries, supplied with the SK-3600
Klothing Kontrol Alarm Module, onto the battery holder shown in Fig. 1.
VERY IMPORTANT! When installing batteries, always
follow the polarity indicated on the battery holder.
3. While the unit is still open, install the Alarm Module to the display with
the U-Bolt & Nuts as shown in Fig. 2.
4. Close the lid and replace the (2) two security screws to secure cover.
5. Please note that the Alarm Module has a tamper switch, and you
cannot arm the unit until the security screws have been replaced.
Alarm Module Testing:
6. Install at least one sensor into any of the (20) twenty sensor ports making sure the sensor(s) are closed on a garment,
and arm the unit using the keypad instructions.
When the unit is Armed: Each port that has a sensor plugged into it will flash for about (2) seconds. At the end of five sec-
onds, the green light at the top of the Alarm Module will flash once every fifteen (15) seconds.
The Red Light(s) Flashing for (5) Seconds Indicates: That the unit has located that sensor and it is "Working Correctly."
The Green Light that Flashes Every (15) Seconds Indicates: That the unit is constantly checking the condition of the bat-
teries, and they are in GOOD Condition.
Low Battery Indication: The GREEN indicator light will continually flash and "Beep", (approximately ever 10 seconds).
(optional)
U-Bolt & Nuts SK-336
Included with Alarm Universal Saddle
Module Bracket
SK-3699
(Optional) "Flashing Light" for top of display
SK-3617
12' (Coiled) Klothing Kontrol Sensor
SK-3652S
12' (Straight) Standard Klothing Kontrol Cable with Lasso
SK-3653S
12' (Coiled) Klothing Kontrol Sensor for Garment Sleeves
SK-3660S
5' (Coiled) plus 8' (Straight) Klothing Kontrol Cable with Lasso
Fig. 1
When installing
"AA" Batteries
be sure to
follow the
polarity marked
on the battery
holder.
SK-3600 Series
SK-11-AA
(included)
(6) "AA" Alkaline
Batteries
SKP-416K
Security Allen Wrench
Fig. 2
Also available:
the SK-336
Universal
Saddle Bracket
