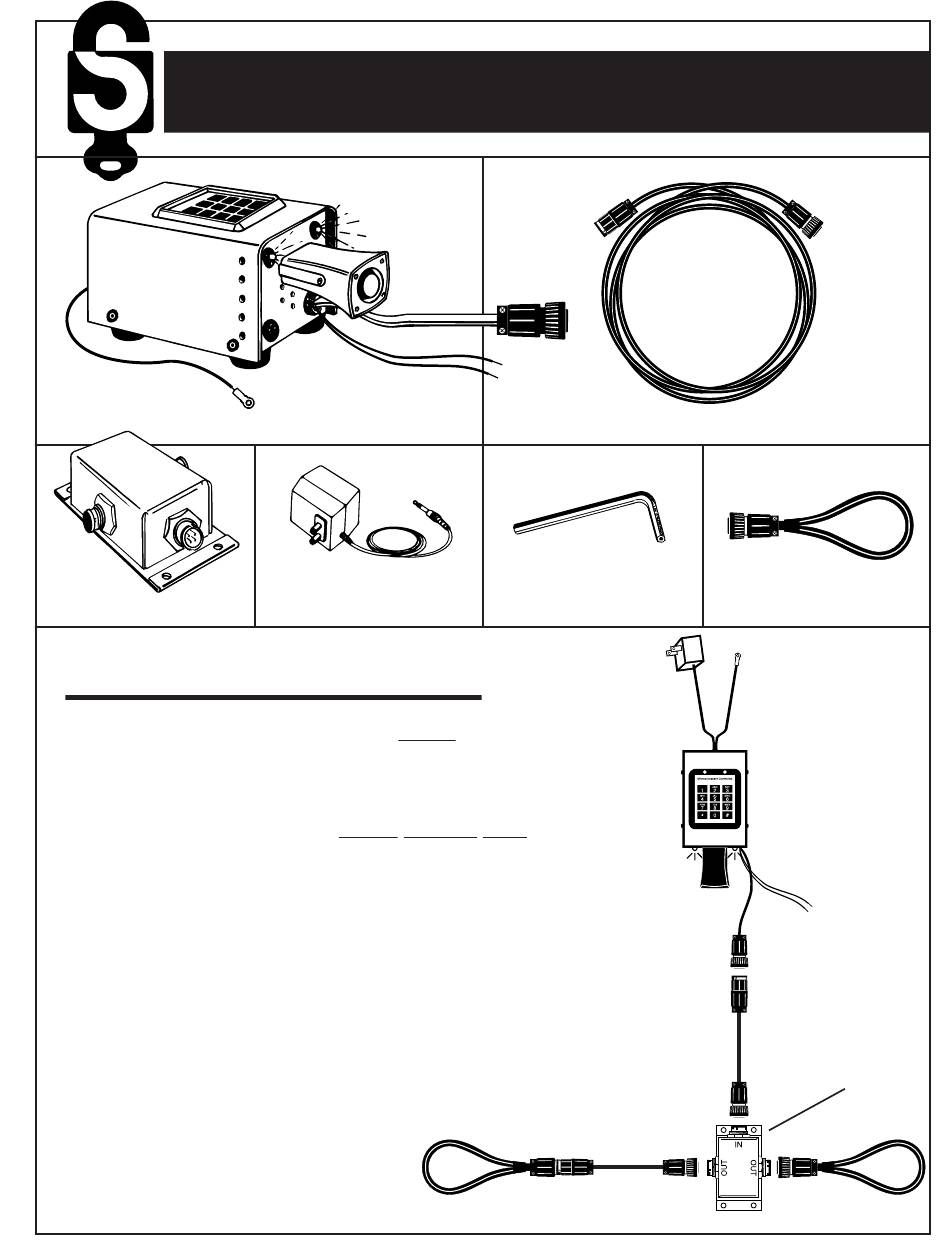

Se-Kure Controls SK-903KB Installation Instructions

Installation Instructions for the
Outdoor Product Alarm System
Outdoor Product Alarm Module w/External Horn
SK-907KB
Outdoor Product Alarm Splitter

Installation Instructions:

Special Note: Make all connections before installing
batteries and connecting the AC/DC Power Supply.

Indoors:

1. Screw the Alarm Module's Green Ground Wire to the
ground screw located on the center of a grounded 110v AC
outlet cover plate, and plug the AC/DC Power Supply into
the outlet. (Hold off until the battery step to plug the Power
Supply into the Alarm Module).
2. Attach an (SK-947KB) Outdoor Cable to the end of the
Alarm Module Cable, and extend it Outdoors.

Outdoors:

3. Connect the cable extending from indoors to the
(SK-907KB) Outdoor Splitter. (The Splitter can be mounted
to a wall with #10 screws).
Do not allow Splitter or Connectors
to remain in standing water.
SK-903KB
Outdoor Cable (Available in Combinations of 8') - [xx = 8, 16, 24, etc.]
SK-195
AC/DC Power Supply Security Screw Allen Wrench
SK-109KB
Terminator Loop
SKP-416K
SK-195
AC/DC
Power supply
SK-947KB
Outdoor Cable
SK-947KB
Outdoor Cable
SK-947KB8
SK-109KB
Terminator Loop
Ground (GREEN)
(connect eyelet to
center screw on
standard outlet plates)
SK-903KB
Outdoor Product
Alarm w/Keypad &
External Horn
Dry Contacts
(can handle up to 24v)
1 Amp
SK-907KB
Outdoor Splitter
SK-109KB
Terminator Loop
