Se-Kure Controls ME Jr. plus 2 SK-800MEI Series Installation Instructions

Installation Instructions for the
ME Jr. plus 2 Infrared Alarm System
SK-800ME I

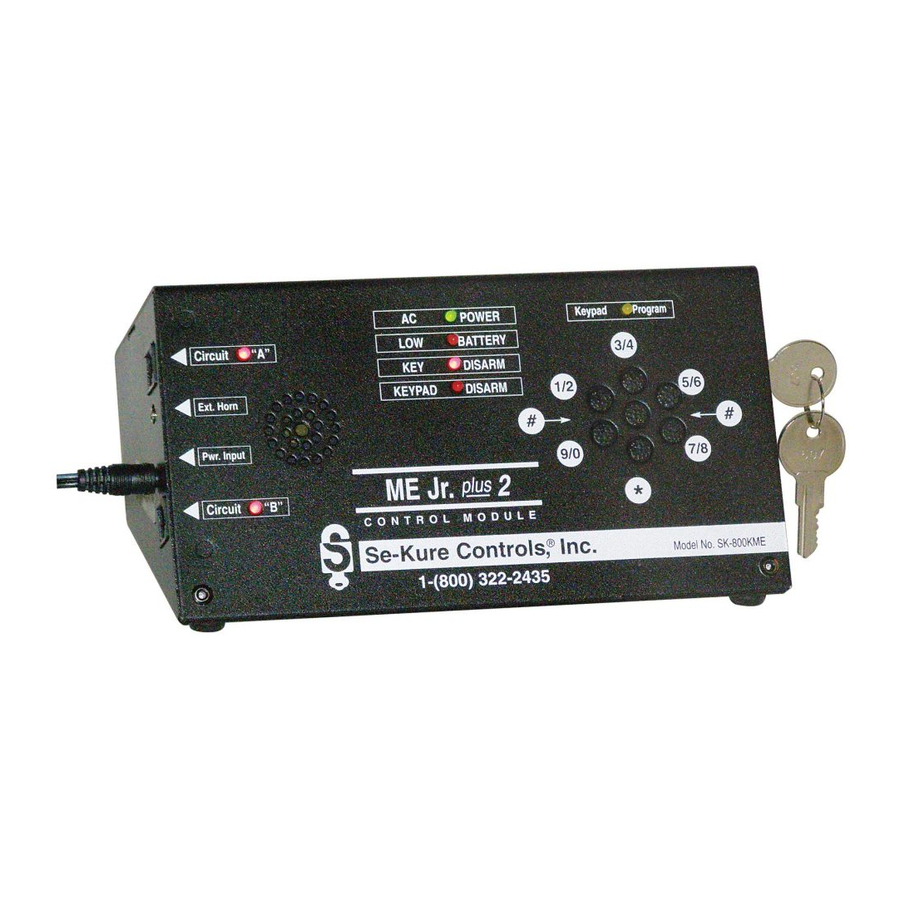

ME Jr. plus 2 Alarm Module with Key Switch & Infrared Remote

Battery Installation:

1. Remove the screw that restricts the battery
door from opening using a phillips head
screwdriver as shown in Fig. 1.
2. Insert the key and turn it to the disarmed
position (the key cannot be removed in the
disarmed position).
Note: The battery door will not open without the
key in the lock and in the disarmed position.
3. Remove the battery door.
4. Before installing batteries, plug the (SK-195)
AC/DC Power Supply into the Alarm Module
jack marked Pwr. Input as shown in Fig. 2.
5. Install (4) fresh "C" Cell Alkaline batteries
following (+) and (-) polarity shown in Fig. 3.
VERY IMPORTANT! When installing batteries,
always follow the polarity indicated on the
battery holder.
6. Close the door as shown in Fig. 4. The horn
will "Double Chirp" until the door is securely
closed.
7. Replace the battery door retaining screw as
shown in Fig. 5. (If the key is in the disarmed
position for 1-1/2 minutes, the horn will
"Single Chirp" every 15 seconds to indicate
that the unit is in the disarmed mode.
SK-800ME I Series
SK-808ME
ME Jr. plus 2 (8) Port Splitter Box
SK-109
Telephone Modular "Shunt Plug"
Fig. 1
Fig. 3
Fig. 5
SK-3690
(Optional) "Where it's At Light"
SK-847-x
Extension (Connects Alarm Module
to Splitters & Splitters to Splitters)
SK-882
Infrared Remote Transmitter
Fig. 2
Fig. 4
