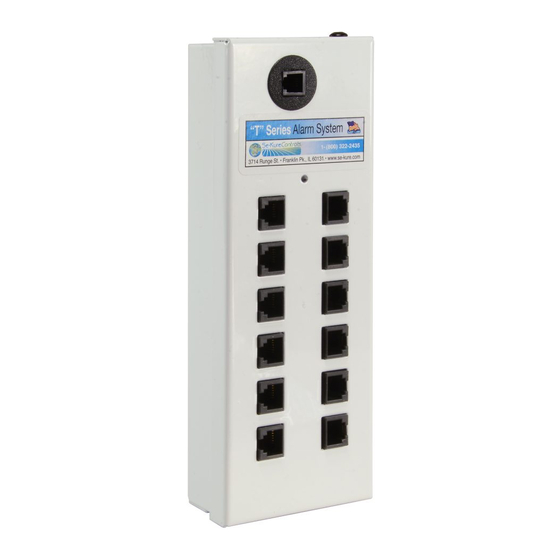

Se-Kure Controls Mini T Series Instructions

Mini T-6 & T-12 Alarm Instructions
Battery Installation:
1. Remove the screw
at the top of the alarm
module with a Phillips
Head Screw Driver.
Insert the key and
turn it clockwise to
open the box.
3. Close the Lid and
turn the key "counter
clockwise" to lock the
box. Then, replace
the screw at the top
of the alarm module.
Note: The AC/DC Power Supply is the primary power source for the alarm.
When connected, it powers the alarm and the LED lights. If the AC power is
cut off, the sensor lights will go out, but the alarm still functions, using the
battery back-up power.
3714 Runge Street • Franklin Pk., IL 60131-1112 • 1-800-322-2435 • (847) 288-1111 • Fax: (847) 288-9999
SK-T12MA-W
SK-T6MA-W
Controls,
Se-Kure
www.se-kure.com • email: info@se-kure.com
Unit
Requires
6
Batteries
(Not
Included)
(6) "AA" Alkaline Batteries
SK-195
AC/DC Power Supply
The Mini T-Series Alarms use the entire line of
Se-Kure Sensors. Ask your Customer Service
Representative for additional information.
2. Install (6) new "AA"
Alkaline batteries
(Not Included) onto
the battery holder as
shown in the image at
right.
4. Plug the AC/DC
Power Supply into a
standard 110-115v
AC outlet and the
other end into the
Power Supply Jack
on the Alarm module.
® Inc.
SK-110
Extra Single Bit Key
Follow the (+) & (-)
Polarity Markings on
the battery holder.
