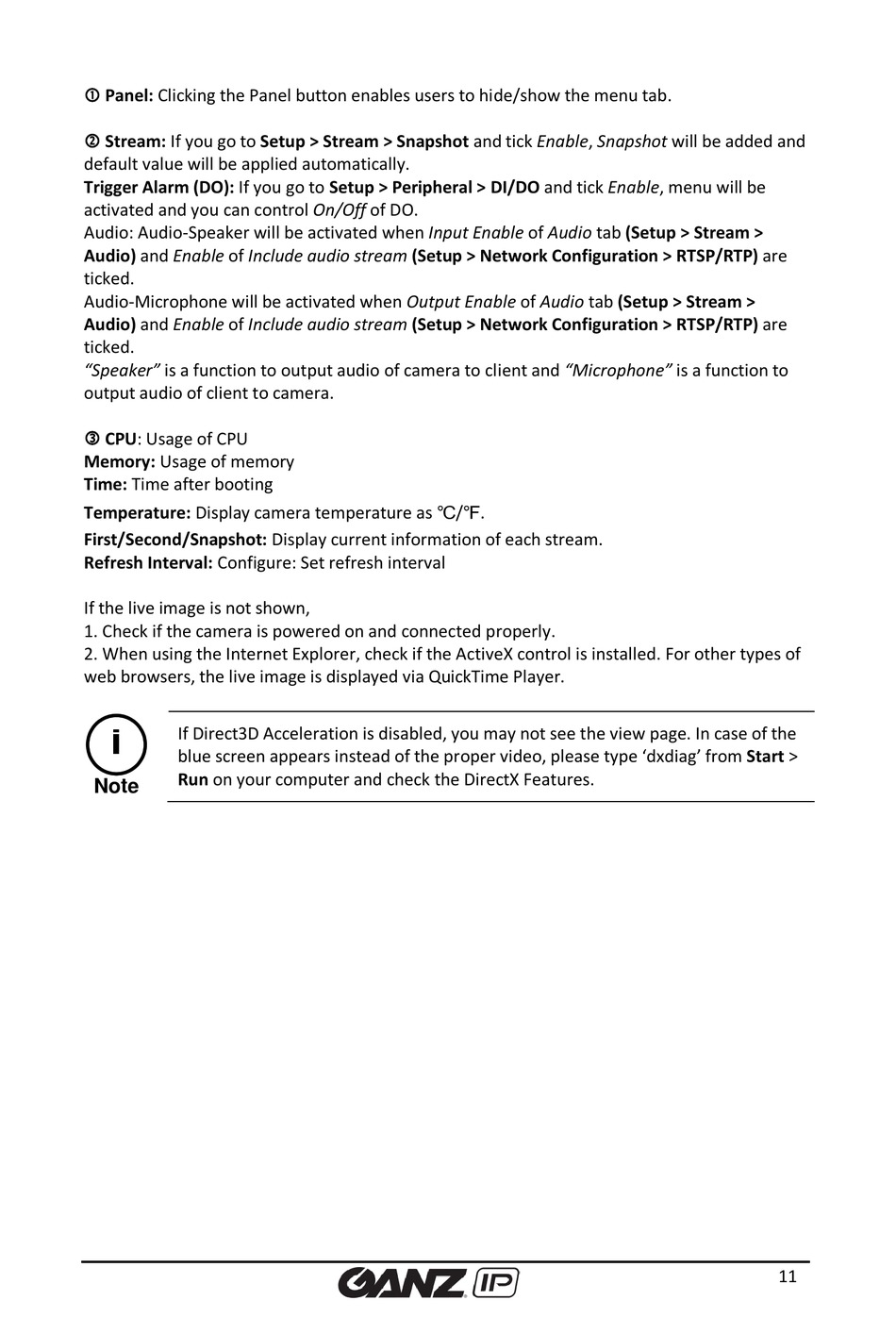

Ganz IP Camera User Manual page 11

 Panel: Clicking the Panel button enables users to hide/show the menu tab.
 Stream: If you go to Setup > Stream > Snapshot and tick Enable, Snapshot will be added and
default value will be applied automatically.
Trigger Alarm (DO): If you go to Setup > Peripheral > DI/DO and tick Enable, menu will be
activated and you can control On/Off of DO.
Audio: Audio-Speaker will be activated when Input Enable of Audio tab (Setup > Stream >
Audio) and Enable of Include audio stream (Setup > Network Configuration > RTSP/RTP) are
ticked.
Audio-Microphone will be activated when Output Enable of Audio tab (Setup > Stream >
Audio) and Enable of Include audio stream (Setup > Network Configuration > RTSP/RTP) are
ticked.
"Speaker" is a function to output audio of camera to client and "Microphone" is a function to
output audio of client to camera.
 CPU: Usage of CPU
Memory: Usage of memory
Time: Time after booting
Temperature: Display camera temperature as
First/Second/Snapshot: Display current information of each stream.
Refresh Interval: Configure: Set refresh interval
If the live image is not shown,
1. Check if the camera is powered on and connected properly.
2. When using the Internet Explorer, check if the ActiveX control is installed. For other types of
web browsers, the live image is displayed via QuickTime Player.
i
If Direct3D Acceleration is disabled, you may not see the view page. In case of the
blue screen appears instead of the proper video, please type 'dxdiag' from Start >
Run on your computer and check the DirectX Features.
Note
/ .
11
