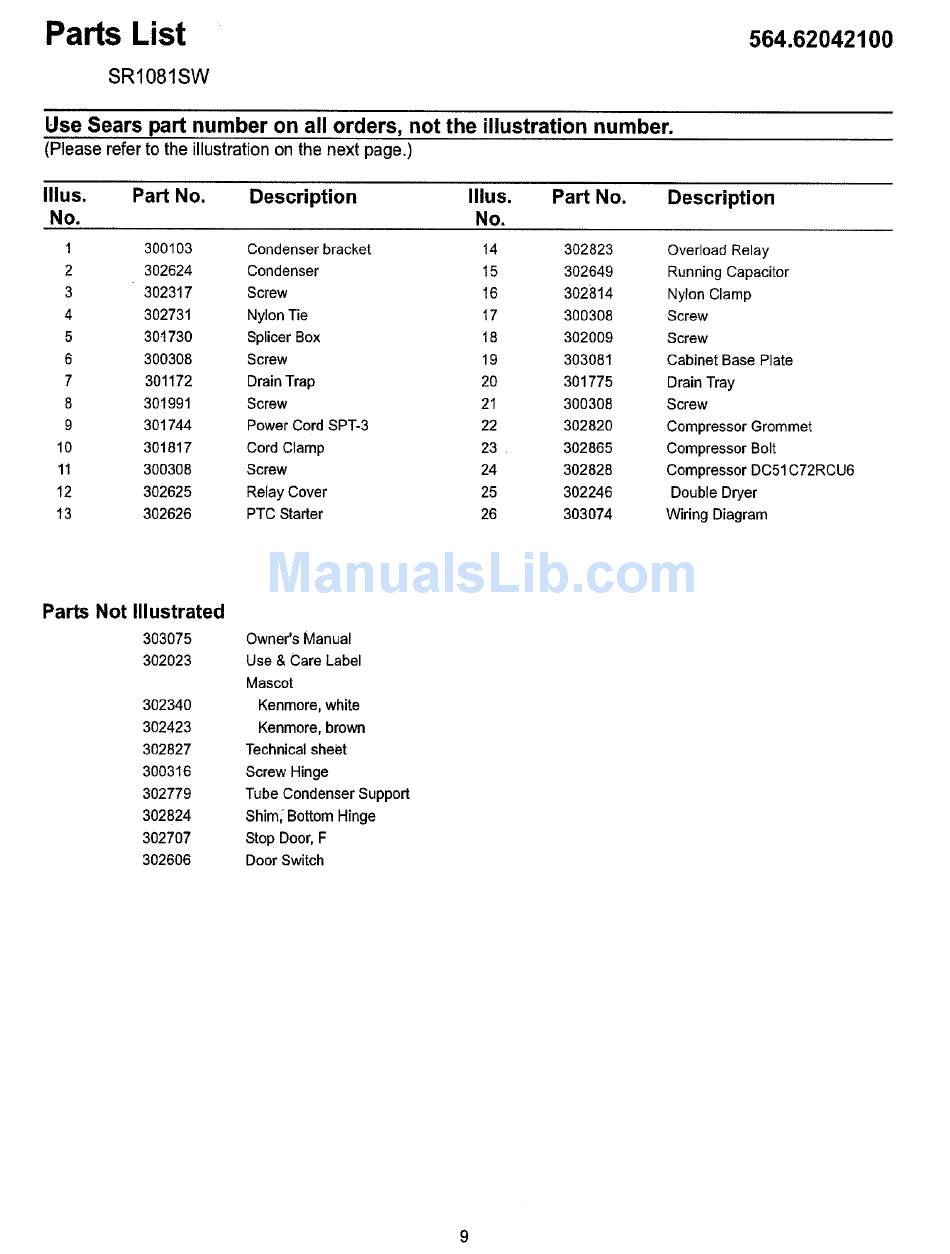

Parts List
564.62042100
SR1081SW
Use Sears part number on all orders,
not the illustration
number.
(Please
refer to the illustration
on the next page.)
Illus.
Part No.
Description
Illus.
Part No.
Description
No.
No.
1
300103
Condenser bracket
14
302823
Overload Relay
2
302624
Condenser
15
302649
Running Capacitor
3
302317
Screw
16
302814
Nylon Clamp
4
302731
Nylon Tie
17
300308
Screw
5
30t 730
Splicer Box
18
302009
Screw
6
300308
Screw
19
303081
Cabinet Base Plate
7
301172
Drain Trap
20
301775
Drain Tray
8
301991
Screw
21
300308
Screw
9
301744
Power Cord SPT-3
22
302820
Compressor Grommet
10
301817
Cord Clamp
23
302865
Compressor Bolt
11
300308
Screw
24
302828
Compressor DC51 C72RCU6
12
302625
Relay Cover
25
302246
Double Dryer
13
302626
PTC Starter
26
303074
Wiring Diagram
Parts Not Illustrated
303075
302023
302340
302423
302827
300316
302779
302824
302707
302606
Owner's Manual
Use & Care Label
Mascot
Kenmore, white
Kenmore, brown
Technical sheet
Screw Hinge
Tube Condenser Support
Shim, Bottom Hinge
Stop Door, F
Door Switch
