TOE PLATE INSTALLATION
When the unit is secured in place, install the louvered toe plate.
Secure louvered toe plate by snapping the latch into the latch
catch on the unit. Refer to Figure 8 (below) for Toe Plate Installation
Illustration and Figure 9 (page 11) for Toe Plate Wood Overlay
template.
CAUTION
The louvered toe plate must be removed to service the unit. The
floor cannot interfere with removal. The louvered sections must
not be covered or obstructed to prevent proper air circulation.
IMPORTANT NOTE: To achieve maximum performance, interior
louver openings and fan guard openings should never be
obstructed.

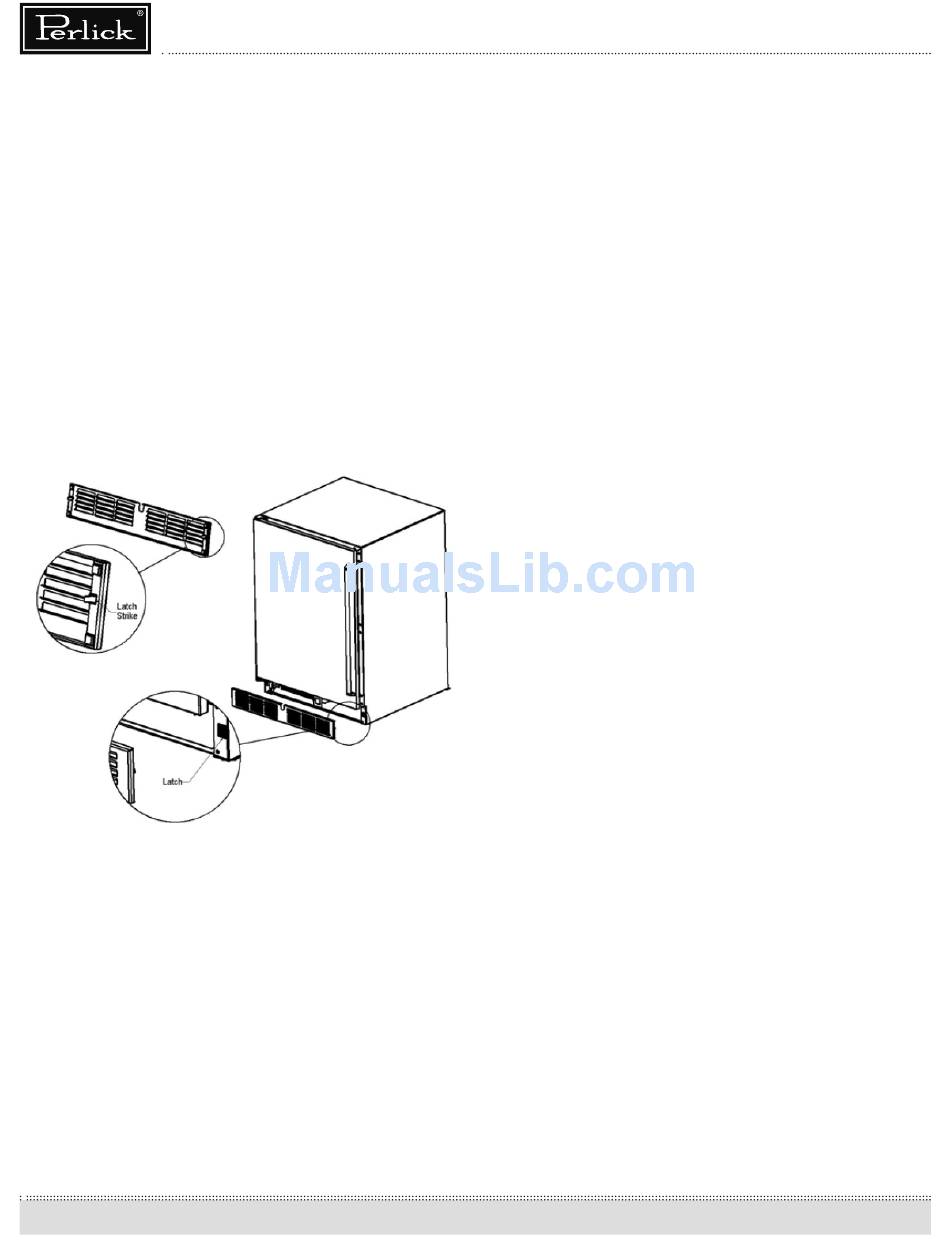

Figure 8- Toe Plate Installation

SHELVING

Single Door Freezer/Refrigerator
The single door unit comes standard with two Industry Exclusive
full-extension black vinyl-coated pullout shelves.
Single Door Wine Reserve
The single door unit comes standard with five full extension
black vinyl coated pullout wine racks capable of storing 40 total
wine bottles. Wine shelves are removable and adjustable to
accommodate oversized (magnum) bottles. Additional storage is
available on the lower step for an additional five wine bottles.
10
Single Door Beverage Center
The single door unit comes with two full-extension black vinyl-
coated wine racks and one Industry Exclusive full-extension black
vinyl-coated pullout shelf allowing for storage of both wine and
beverages. Shelving positions are adjustable.
Two Door All-Refrigerator
The two door all-refrigerator comes standard with four black
vinyl-coated pullout shelves and a bottome step shelf. Up to two
additional full-extension black vinyl-coated pullout shelves can be
used with these cabinets.
Two Door Refrigerator/Wine Reserve
The two door refrigerator/wine reserve (HP48RW) comes standard
with two full-extension black vinyl-coated pullout shelves and six
full-extension black vinyl-coated pullout wine racks capable or
storing 48 wine bottles.
Two Door Refrigerator/Beer Dispenser
The two door refrigerator/beer dispenser (HP48RT) comes standard
with two full-extension black vinyl-coated pullout shelves.
Two Door All-Wine Reserve
The two door all-wine reserve (HP48WW or HP48WO) comes
standard with ten full-extension black vinyl-coated pullout wine
racks capable of storing 88 total wine bottles. If the cabinet is a
multi-zone win reserve the first door can hold 40 total wine bottles
while the second door can hold 48 total wine bottles.
