PREPARING THE CABINET

TO achieve maximum
NOTICE
performance, interior louver
openings and fan guard openings should never be
obstructed.
Refrigerator:
The refrigerator compartments come standard with black
vinyl coated adjustable full extension shelves.
Wine Reserve:
The two-door unit comes standard with 4 full extension
wine shelves and six full extension black vinyl coated
wine shelves. The shelves are removable and adjustable
to accommodate oversized (magnum) bottles.
Sliding Shelf Extender Tabs
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice
Operation/Installation Manual

ADJUSTING FULL EXTENSION SHELVING

Shelves should be emptied and
CAUTION
free of any product prior to
moving or adjusting.

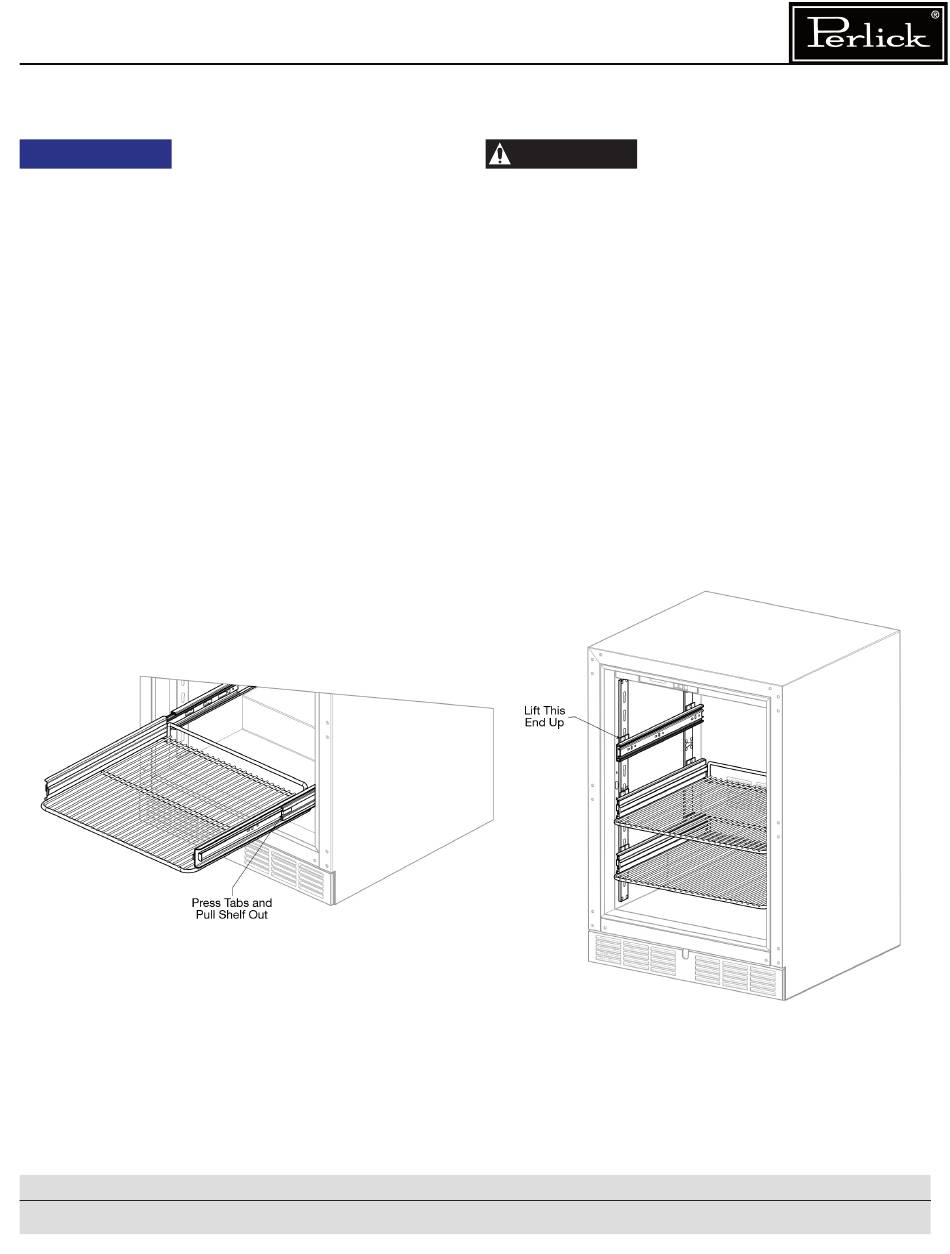

Pull the shelf out to its furthest position Locate the tabs in
the middle of both extenders (see extender tabs below).
Press tabs and pull out.
• Reposition each bracket separately. Grasp the middle
of the bracket, pull the front end up and out, then
forward to remove (See mounting brackets below).
• Place bracket at desired position. Push the rear hook
into the rear key slot. Set front of bracket on the wall
hook.
• Repeat for other bracket(s).
• Push extenders completely into the unit. Align the
shelf grooves with the extenders and slide completely
into the unit.
Sliding Shelf Mounting Brackets
9 Form No. Z2363
