Left or Right Hand Installation

The opener is shipped from the factory ready for installation
on the RIGHT SIDE of the door (when viewed from inside
the garage). If installing on the LEFT SIDE then ensure you
specify the correct orientation in the next step.
1 Press SET for 3 secs to enter set up. The display will
show Right Hand Installation (default). If
this is correct press SET to confirm.

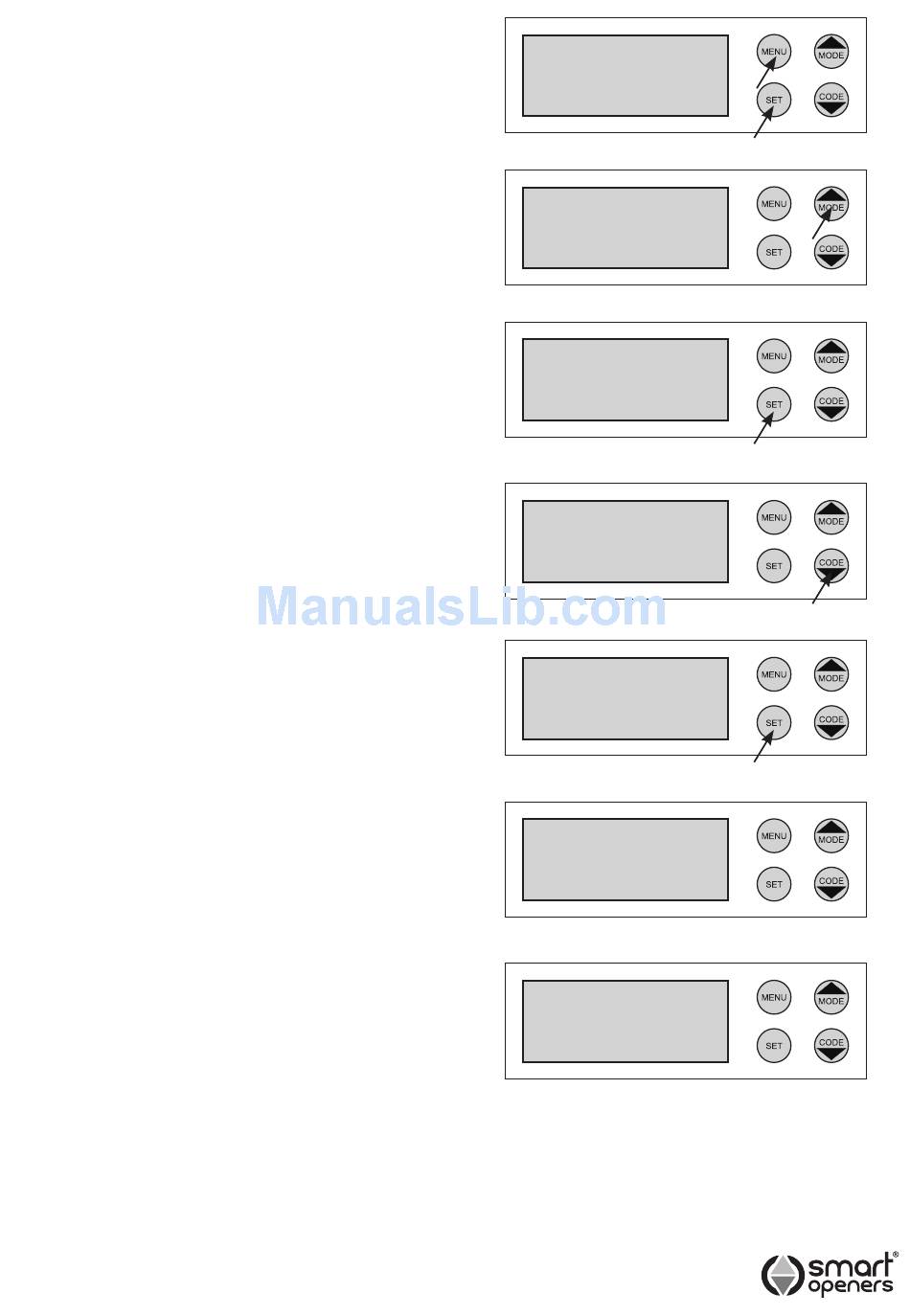

2 To change to Left Hand Installation,
press MENU then press SET to confirm (Fig. 20).
The opener will now go to limits set up.

Setting Limits Via Controller

1 With the door open approximately half way, make sure
that the drive motor is engaged. The display will show
Set Open Position (Fig. 21).
Note: If the door starts closing instead of opening the
opener needs to be reset to the correct side (Left/
Right). Press MENU to abort limits set up and
repeat initialising procedure as per above.
2 Press and hold MODE to move the door (at half
speed) to the desired open position and release.
If you over shoot the desired position press CODE
and drive the door down at least 100mm. Then press
MODE again to drive the door up.
3 Press SET to confirm. The display will show Open
Position Set for 2 secs then will show Set
Close Position.
4 Press and hold CODE to move the door (at half
speed) to the desired closed position. If you over
shoot the desired position press MODE and drive the
door up at least 100mm. Then press CODE again to
drive the door down.
5 Press SET to confirm. The display will show Close
Position Set for 2 secs.
6 The opener will now run through a full cycle to
measure the force margin required to open and close.
Then the display will show Set Up Complete.
The system will now exit set up mode and return
to normal operation. The display will show Door
Closed (Fig. 26). If no further settings or adjustments
are required, the system is now ready to use.
Now that transmitters are coded and limits set, if
the parameter settings do not need alteration from
factory default then the door is now ready for normal
use. If further set up is required refer to page 12 for
parameter set up.
Resetting Limits
If you are not happy with the limits positions and you are
still in the process of setting limits, press MODE to abort
limits set up then press SET again for 3 secs and repeat
initialising procedure as per above.
If limits set up and door force margin profile has been
completed, to reposition limits press SET for 3 secs to
reenter set up mode.
© February 2009 Smart Openers Pty Ltd
Left Hand
Installation
Set Open
Position
Open Position
Set
Set Close
Position
Close
Position Set
Set Up
Complete
Door Closed
-10-
Fig. 20
Fig. 21
Fig. 22
Fig. 23
Fig. 24
Fig. 25
Fig. 26
