Before Installation

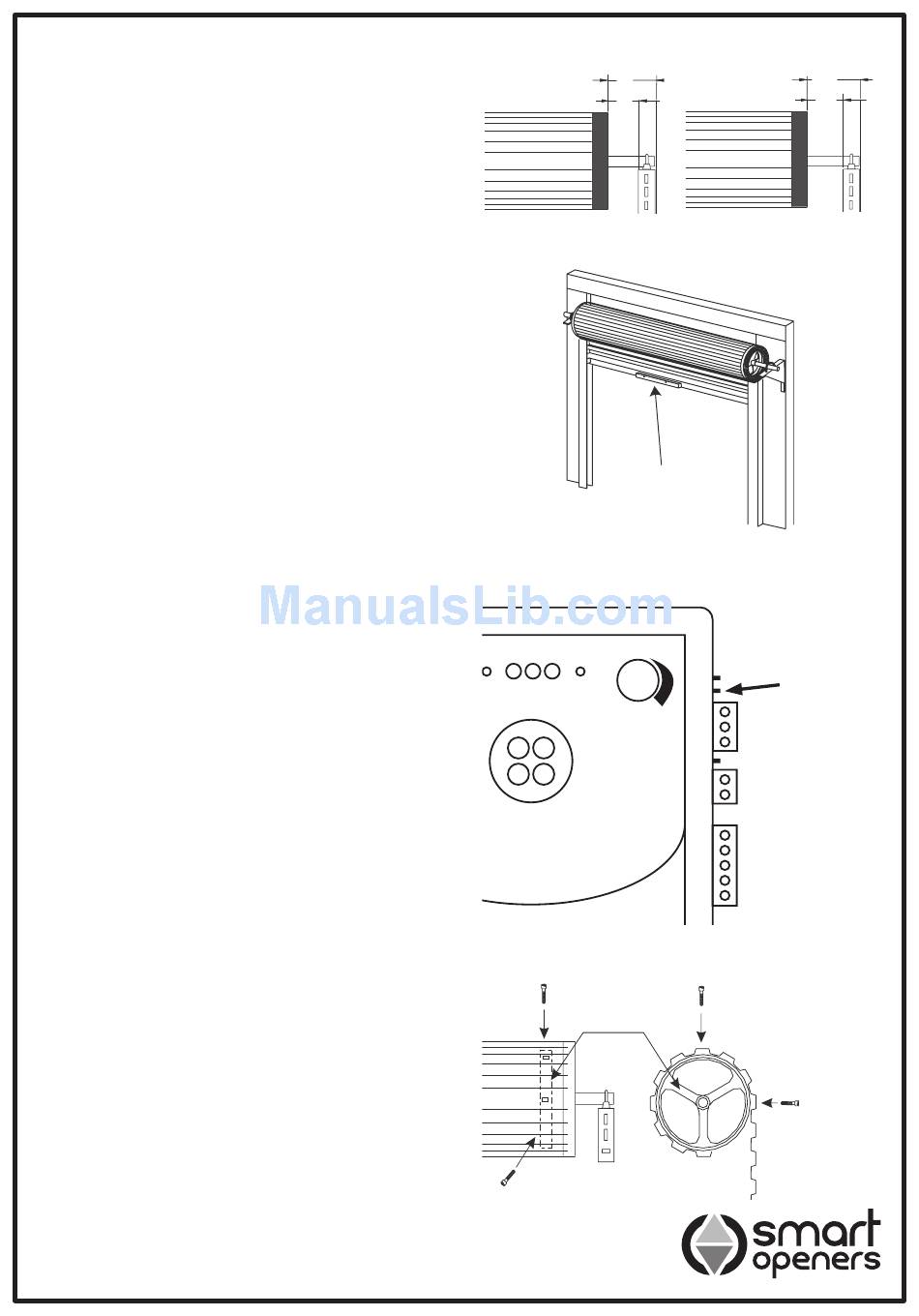

Side Room
The minimum sideroom required is just 30mm between
the edge of the door curtain and wall bracket with a total
of 80mm from the wall to the edge of the door curtain
(Fig 1). If the situation permits, it is recommended that
80mm is allowed between door curtain and bracket and
a total of 130mm between the door curtain and the wall
(see Fig 2).
Weight Bar
Position the weight bar so that it is centrally spaced
along the bottom rail of the door. Secure with fasteners
provided and test operation. If the door feels heavy
extra tension may need to be added to the door springs.
Refer to the door manufacturer's instructions for proper
adjustment procedure.

Left or Right Hand Installation

The Smart Roller Duo is shipped from the factory ready
for installation on the RIGHT SIDE of the door (when
viewed from inside the garage).
If you are installing this opener on the RIGHT SIDE then
proceed to the next step.
If installing on the LEFT SIDE then the dip-switch No. 1
must be shifted up as per Fig 4.
Fixing The Door Curtain To Drum Wheel
The door curtain has to be secured to the drum wheel
with suitable fasteners.
(a) With the door in the fully closed position mark the
curtain on both ends of the door.
(b) Open the door slightly to access the marked positions.
Secure the curtain to drum wheel using self drilling
screws (two on each end). The screws should be at
least 90 degrees apart as per Fig 5.
80
Minimum sideroom
30
Fig. 1
WEIGHT BAR
Prog Lrn Run
DRUM WHEEL
-7-
Recomended sideroom
Fig. 2
MIN
MAX
130
80
Fig. 3
Fig. 4
Fig. 5
