Setting Limits Via Transmitter - Smart Openers Smart Roller Nano Installation Manual

Left or Right Hand Installation
The opener is shipped from the factory ready for installation
on the RIGHT SIDE of the door (when viewed from inside
the garage). If installing on the LEFT SIDE then ensure you
specify the correct orientation in the next step.
1 Press SET for 3 secs to enter set up. The display will
show Right Hand Installation (default). If
this is correct press SET to confirm.
2 To change to Left Hand Installation,
press MENU then press SET to confirm .
The opener will now go to limits set up.

Setting Limits Via Transmitter

1 With the door open approximately half way, make sure
that the drive motor is engaged and the display shows
Set Open Position (Fig. 27).
Note: If the door starts closing instead of opening the
opener needs to be reset to the correct side (Left/
Right). Press MENU to abort limits set up and
repeat initialising procedure as per above.
2 Press and hold TX Button 1 to move the door to the
desired open position. If you over shoot the desired
position press Button 4 and drive the door down.
3 When desired open position is reached pause for 5 secs
for opener to beep and lights to flash to indicate position
set.
4 Press and hold Button 4 to drive the door to the
closed position. If you over shoot the desired position
press Button 1 and drive the door up.
5 When desired closed position is reached pause 5 secs
for opener to beep and lights to flash to indicate position
set.
6 Use the remote to test travel limits.
If no further settings or adjustments are required, the
system is now ready to use.
Now that transmitters are coded and limits set, if
the parameter settings do not need alteration from
factory default then the door is now ready for normal
use. If further set up is required refer to page 12 for
parameter set up.
Resetting Limits
If you are not happy with the limits positions and you are
still in the process of setting limits, press MODE to abort
limits set up and repeat procedure as per above.
© February 2009 Smart Openers Pty Ltd
Set Open
Position
Set Up
Complete
Door Closed
-11-

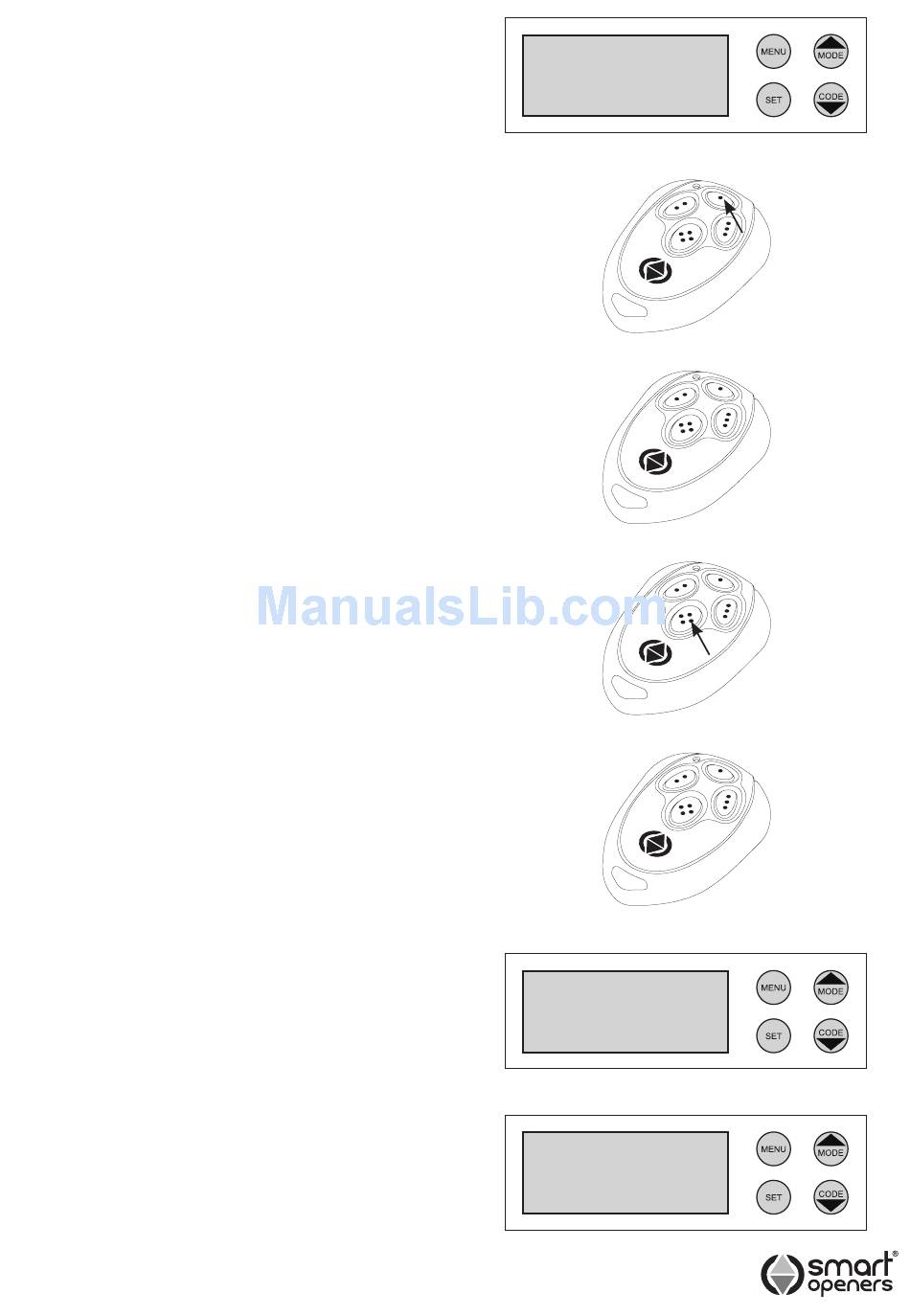

Fig. 27
