Shun Hing HKTG Gas Hobs (50865(M)).indb 1
Hong Kong Towngas/
Hong Kong LP Gas
Gas Hobs
2 Burners Built-in Type
User Manual
GD LUX 76 2G
R e a d t h i s i n s t r u c t i o n m a n u a l a n d w a r r a n t y c a r d c a r e f u l l y
b e f o r e i n s t a l l i n g a n d o p e r a t i n g t h e h o b c o o k e r . P l e a s e
k e e p t h i s c o p y f o r f u t u r e r e f e r e n c e .
20/06/23
Advertisement
Table of Contents
Related Manuals for Teka Hong Kong Towngas
Summary of Contents for Teka Hong Kong Towngas
- Page 1 Hong Kong Towngas/ Hong Kong LP Gas Gas Hobs 2 Burners Built-in Type User Manual GD LUX 76 2G R e a d t h i s i n s t r u c t i o n m a n u a l a n d w a r r a n t y c a r d c a r e f u l l y b e f o r e i n s t a l l i n g a n d o p e r a t i n g t h e h o b c o o k e r .
- Page 2 Gas hob instructions for use Welcome Shun Hing HKTG Gas Hobs (50865(M)).indb 2 20/06/23...
- Page 3 Gas hob instructions for use Welcome Dear customer, Thank you for your confidence in our product. We are supplying you with a high-quality Teka product. As part of quality controls conducted prior to its delivery, it was inspected to ensure that it is in its proper condition. The instructions for use contain information which guarantees the safety use of the appliance. Please inform us there be any mistakes or any information is missing. The instructions for use is copyrighted and intended exclusively for users of the appliance. Customer Service Our Customer Service will be glad to help you for any queries concerning the product or should you require more information. Shun Hing Electric Services Centre Ltd. Shun Hing Centre, 2 Shing Yiu Street, Kwai Chung, N.T. Hong Kong Repair Services Hotline: 2400 6899 Consumables/Accessories Sales Hotline: 2406 5555 Warning!! According to the Gas Safety Regulations of Hong Kong, any gas installation works including the installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for appropriate classes and employed by registered gas contractors. Use approved gas tubing bearing EMSD approval marking (such as: 機電工程署批准 EMSD APPROVAL GTXXXX) for connection to appliances, or other appropriate methods accepted by EMSD. When installing built-in gas hob on top of stove cabinet, please check that there is provision for ventilation at the cabinet to ensure proper operation of the gas hob. Do not store any flammable materials, sprays or pressurized containers inside the stove cabinet. The top panel of this cooker is made of ceramic glass which is safer than normal glass for this application. However, the following safety precautions for using gas hob with glass top panel should also be considered in order to prevent the glass top panel from breaking: 1. Clean the burner assembly frequently to maintain a clear gas passage on the flame distributor. Clean and tidy up the flame distributor after spillage of food and liquid once the burner assembly cooled down.
- Page 4 Gas hob instructions for use Contents Shun Hing HKTG Gas Hobs (50865(M)).indb 4 20/06/23...
-
Page 5: Table Of Contents
Gas hob instructions for use Contents Contents Safety and Responsibility .............. 6 Appropriate use ........................6 1.2 User responsibility ......................6 1.3 Qualification of Persons .....................7 1.4 Warnings in these instructions for use ................7 Overview of the Gas Hobs ............. 8 Gas hob GD LUX 76 2G .....................8 Installation and Operation ............. 9 3.1 Installation and operation safety..................9 3.2 Gas hob installation ......................10 3.2.1 Making a hole in the worktop ................10... -
Page 6: Safety And Responsibility
Gas hob instructions for use Safety and Responsibility 1 Safety and Responsibility For the purpose of safe, appropriate use, please observe the safety instructions before you use the appliance. 1.1 Appropriate use The appliances may only be operated when they have been adapted to the local gas supply – see the marking on the back of the appliance – and when the instructions for use are available in the language of the respective country. The instructions for use is a component of the appliance and must be handed over when it is passed on or sold. Any other possible field of applications or uses, modifications, attachments or alterations may considerably jeopardise the safety, reliability and functioning of the appliance. Such measures rule out any guarantee, and responsibility for personal injury and damage to property is passed on to the user. 1.2 User responsibility The user is responsible for the safe, appropriate operation of the appliance. This includes: ● A supply of energy and spatial requirements (space needed, ventilation, room air conditions, etc.) ● Children must be under permanent supervision when the appliance is operating in order to ensure that they do not play with the appliance. ● The appliance must be installed in accordance with local regulations. ● Regular inspections are to be carried out by a registered gas installer. ● It is recommended that you conclude a maintenance agreement in order to ensure long-term, failure-free operation. -
Page 7: Qualification Of Persons
Gas hob instructions for use Safety and Responsibility 1.3 Qualification of People For the activities in the different stages of life of the appliance, people with different qualification are required. Operations Person Qualification Registered gas installer Assembly, installation Knowledge of these instructions for use Registered electrical workers Installation of gas connections, Knowledge of specifications for gas initial operation, maintenance, fault Registered gas installer connections rectification, repairs Operation, cleaning, fault rectification (provided permitted by the user, see User Knowledge of these instructions for use Section 5.2 “Troubleshooting”) Knowledge of regional specifications, Disposal User if necessary enquiries at local waste disposal enterprises 1.4 Warnings in these instructions for use The following safety alert symbols and signal words are used to distinguish potential hazards in these instructions for use. -
Page 8: Overview Of The Gas Hobs

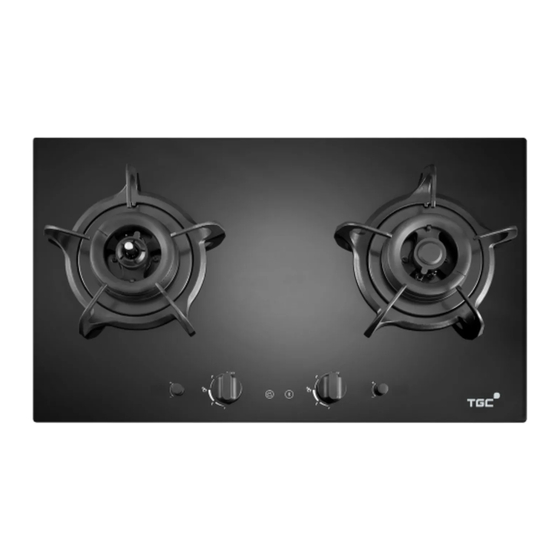

Gas hob instructions for use Overview of the Gas Hobs 2 Overview of the Gas Hobs This section contains an overview of the gas hobs and their control elements. 2.1 Gas hob GD LUX 76 2G ③ Right burner ① Left burner ④ Right burner control knob ② Left burner control knob Shun Hing HKTG Gas Hobs (50865(M)).indb 8 20/06/23... -
Page 9: Installation And Operation
Gas hob instructions for use Installation and Operation Installation and Operation Installation and operation safety WARNING Fatal injury caused by explosive gas ● Gas connections must all be installed by a registered gas installer. ● Only operate gas hobs in a well-ventilated, sufficiently large room (at least 20 m³) or install a mechanical ventilation device, e.g. a cooker hood. Take account of ventilation when making constructional changes to buildings. Fatal injury caused by fire ● Never install gas hobs near flammable items, e.g. decorations. ● Use heat-resistant wall connection strips which do not rest more than 30 mm on the worktop. ● For combustible installation walls: ○ Minimum clearance at the back: 100 mm (wall made of heat-resistant material, no sockets, no wood, no plastic materials, etc.) ○ Minimum clearance on the left and right: 100 mm ○... -
Page 10: Gas Hob Installation
Gas hob instructions for use Installation and Operation Gas hob installation IMPORTANT! Check the delivery note to ensure that the consignment is complete and intact. Do not install a damaged hob; notify the dealer so that your complaint can be processed without any delay. 3.2.1 Making a hole in the worktop Take into account the space required for the gas connection in the centre underneath the gas hobs. Align the worktop with a spirit level. Saw out the hole for the gas hobs. Installation dimensions for the appliance types: GD LUX 76 2G installation dimensions Seal the cut-out edges with water-resistant varnish. Use a heat-resistant, permanently elastic sealant to even out edges and uneven surfaces. *This picture is for reference only and subject to the actual product. Shun Hing HKTG Gas Hobs (50865(M)).indb 10 20/06/23... -
Page 11: Installing The Gas Hob
Gas hob instructions for use Installation and Operation 3.2.3 The placement of the burner GD LUX 76 2G Burner cap (center) Important: Please confirm that the burner caps are correctly positioned before using the appliances. Otherwise, it may affect burning. Burner cap (outside ring) Place the burner spreader on to the burner base so that the ignition pin and Burner spreader thermocouple extend through their respective Ignition pin holes. Burner base Place the burner caps on to the burner spreader correctly. Thermocouple Make sure all the components are placed Figure 1 correctly, burner caps must not be inclined (See figure 1). Ignition pin and thermocouple must be aligned to the burner caps. -
Page 12: Connecting The Gas Hob
Gas hob instructions for use Installation and Operation Connecting the gas hob ● Electrical connection: DC 1.5V Size "D" Battery. ● Gas connection: ○ The gas connection must be made by a registered gas installer. ○ Observe local gas suppliers’ regulations. ○ Observe regulations concerning permissible types of gas; see marking on the back of the appliance. ○ Check the connection pressure (flow pressure) and exhaust system. ○ Check the gas connection, supplies lines and connections to make sure there are no leaks. The appliance connection may only be checked at a maximum pressure of 1.5Kpa (Hong Kong ○ Towngas) / 2.9Kpa (Hong Kong LP Gas). Do not operate any valves while carrying out the check. Shun Hing HKTG Gas Hobs (50865(M)).indb 12 20/06/23... -
Page 13: Operation
Gas hob instructions for use Installation and Operation Operation The appliance is intended to be used for cooking food only. WARNING Fatal injury caused by explosive gas A smell of gas means that there is a risk of explosion: ● DO NOT ignite gas hobs or turn on gas hob. ● Immediately close gas shut off valves. ● Open windows and doors. ● Registered gas installer find out the cause and rectify it. DO NOT operate any electrical appliances ● Fatal injury caused by fire ● Do not allow food to cook until pots and pans are dry. ● Only switch the burners on to cook food; do not, for example, use them to heat rooms. ● Keep combustible materials, e.g. plastics, sheeting, sugar and food containing sugar away from hot hobs. -
Page 14: Hints On Using The Hob
Gas hob instructions for use Installation and Operation 3.4.2 Hints on using the hob Utensils should always be placed centrally on the pan supports. Using suitable flame to save the energy. Do not use any utensils with the diameter is more than 260mm. These may cause over heat and damage the burners, glass surface and worktop. -
Page 15: Cleaning And Maintenance
Gas hob instructions for use Cleaning Cleaning and Maintenance Keep the surface clean. Immediately remove dirt, e.g. lime, fat, protein, starch, salt and spices. Always clean the appliance after usage. Switch off the appliance, allow it to cool down and observe the following: ● The knobs can be pulled off for cleaning purposes. ● Remove the saucepan supports and burner caps for cleaning purposes, rinse them with warm water and a little detergent and then dry. ● Clean the area under the saucepan supports. Use moistened sponges or cloths. ● Remove light stains with warm water and a little detergent. The thermocouple is delicate, do not use stiff brushes or rough cleaning pads for cleaning. ● ● During reassemble, all parts should locate correctly. Users must keep clean to the electrode and avoid damage from scratching. -
Page 16: Troubleshooting
Gas hob instructions for use Troubleshooting Troubleshooting Safety when troubleshooting WARNING Fatal injury caused by explosive gas ● A smell of gas means that there is a risk of explosion: ○ DO NOT ignite gas hobs or turn on gas hob. ○ Immediately close gas shut off valves. ○ Open windows and doors. ○ Contact the registered gas installer immediately to find out the cause and rectify it. Serious injury caused by improper troubleshooting ● Only carry out work described in these instructions. Any other work or repairs requires extensive technical knowledge. This is the responsibility of the dealer's customer service. ● Only use original components. Recognizing abnormal operation For any failures during operation, please check the following before contact our customer service: •... -
Page 17: Finding Faults
Gas hob instructions for use Troubleshooting Finding errors Malfunction Cause(s) Measure(s) Remove the saucepan support Take out the burner cap from the Holes on the burner cap are blocked burner spreader Clean the holes on the burner cap DC Power interrupted Check the Battery Burner is not ignited Gas stop valve closed Open the gas stop valve Close the gas stop valve Burner defect Contact the dealer's customer service Keep the control knob pressed for Burner goes off after ignition Control knob is not pressed long enough approx. 10 seconds after ignition Remove the saucepan support Take out the burner cap from the Holes on the burner cap are blocked burner spreader Flame flickers... -
Page 18: Technical Data
Width x Depth x Height 750 x 425 x 80 mm Weight: Approx. 17 kg Burners [rated heat input]: (Hong Kong Towngas) 6.0kW x 2 / (Hong Kong LP Gas) 5.0kW x 2 Gas & pressure (Hong Kong Towngas) 1.5kpa / (Hong Kong LP Gas) 2.9kpa Power supply (electrical): DC1.5V x 1 “D” Size Battery Gas inlet connection: 1/2”... - Page 19 Gas hob instructions for use Shun Hing HKTG Gas Hobs (50865(M)).indb 19 20/06/23...
- Page 20 Our Customer Service will be glad to help you for any queries concerning the product or should you require more information. Shun Hing Electric Services Centre Ltd. Shun Hing Centre, 2 Shing Yiu Street, Kwai Chung, N.T. Hong Kong Repair Services Hotline: 2400 6899 Consumables/Accessories Sales Hotline: 2406 5555 Version 1-Jun 2023 Shun Hing HKTG Gas Hobs (50865(M)).indb 20...
