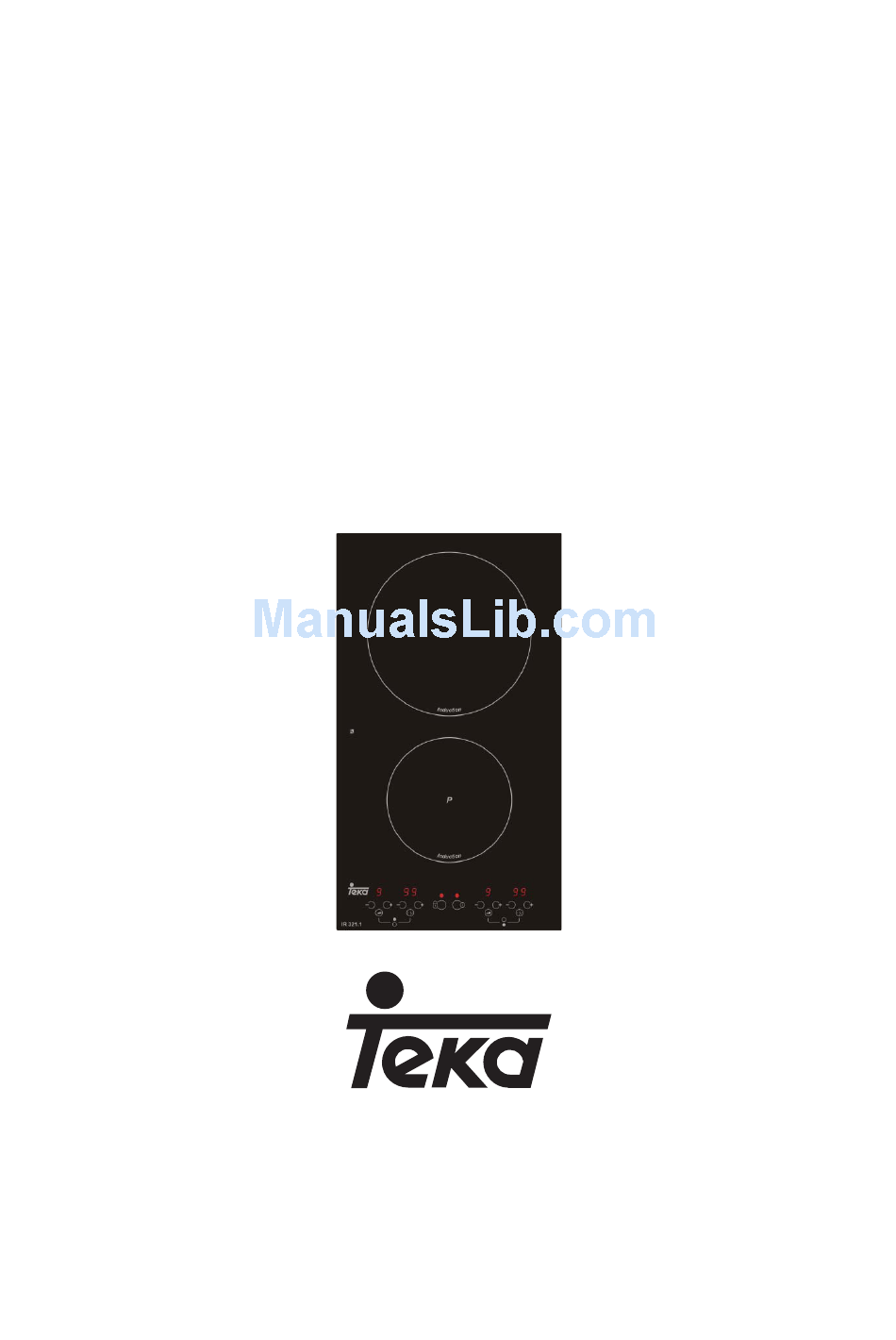

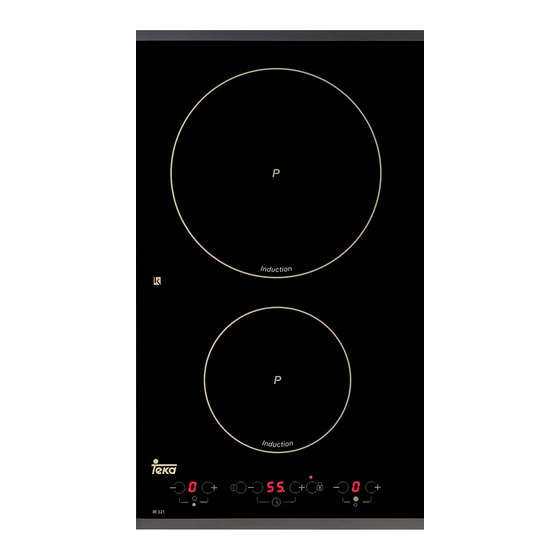

- Page 1 INSTALLATION INSTRUCTIONS AND RECOMMENDATIONS FOR USE AND MAINTENANCE INDUCTION HOB IR 321.1...
- Page 2 Disposing of the device When disposing of the device,do not bring it to regular municipal waste containers.Instead, bring it to electrical and electronic waste recycling and reuse center. A relevant label has been put on the device, its instructions manual, or the package. The device has been manufactured of recyclable material.
-
Page 3: Table Of Contents
CONTENTS WARNING....................1-2 INSTALLATION.....................3 1.CUTTING THE CUPBOARD.............3 2.PLACE OF INSTALLATION...............4 3.PREPARING THE HOTPLATE............5 4.ELECTRICAL CONNECTION............5 WHAT’S SPECIAL ABOUT INDUCTION COOKING ?.........6 1.POWER AND SAVINGS..............6 2.SAFETY.....................6 3.CLEANING..................7 FUNCTIONING.....................8 1.DESCRIPTION OF THE HOB............8 2.USING THE TOUCH CONTROL............8 3.TIMER FUNCTION ................9 4.PAN ....................10 WHAT SHOULD I DO IF................11 TECHNICAL DETAILS ................12... -
Page 4: Warning
WARNING •In case of failure,only the Authorised Technical Service may repare this hob. Otherwise the guarantee will be null and void. •The technical and identification data for the hob figure on the reference plate fixed to the appliance. •This refernence plate must be consulted before making the electrical connections. -
Page 5: Warning
WARNING:The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. --The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been... -
Page 6: Installation
INSTALLATION CUTTING THE CUPBOARD FITTING DIMENSIONS induction Hobs min 38 IMPORTANT There must be a minimum distance of 100 mm between the hole and the wall or adjoining cupboard.If the hob is more than 30 mm thick,or if it is placed on a false top,the ventilation cover must be fitted as shown in the figure below. -
Page 7: Place Of Installation
PLACE OF INSTALLATION ABOVE A DRAWER The electronic circuits of the induction hob must be cooled by a current of 9.5cm fresh air as shown in the diagram,and the points below must be carefully complied with.The greater the distance between the hob and the cupboard underneath it,the better the hob will function. -
Page 8: Preparing The Hotplate
ABOVE A OVEN The hotplate may be flush-mounted above an oven of the same brand. This oven has an upper ventilation system 5mm min and can therefore be installed in a high 40cm min 40mm min position. To do this ,remove the front cross bar of the cupboard to leave a minimum space of 5 mm free IMPORTANT... -
Page 9: What's Special About Induction Cooking
WHAT S SPECIAL ABOUT INDUCTION COOKING POWER AND SAVINGS Induction hobs heat up food much more quickly than other systems do. As the heat is produced in the pan itself, much less energy is lost and performance is much better. Induction cooking uses up only half as much energy as other systems. -
Page 10: Cleaning
CLEANING Spills and splashes will not harden and stick to the glass,as it hardly heats up. Both Vitro-ceramic and induction rings should however be cleaned of any spills or splashes as quickly as possible. Slight stains can be removed with kitchen paper or cloth. More resistant stains will need specific product for vitro-ceramic glass. -
Page 11: Functioning
FUNCTIONING DESCRIPTION OF HOB Ring indicators: These show the On/off sensor: Allows the hob to be location of each ring on the hob . switched on and off directly without using any other sensor. Safety sensor and display: Allows the Power displays: These show the power other sensors to be blocked to prevent setting each ring is working on. -
Page 12: Timer Function
IMPORTANT •If all the rings are turned off, the hob will switch off in a few seconds, and H will light up to indicate which rings are still hot. •You can activate the safety sensor whenever you wish by holding your fingertip on the sensor for three seconds. -
Page 13: Pan
IMPORTANT If the pan has a very small base, the ring will also flash and it will not heat up, even if the metal is suitable. We recommend not to use pans with a smaller base than these: 280 ring---->160 diameter 210 ring ---->180 diameter 180 ring---->160diameter 150 ring ---->120 diameter... -
Page 14: What Should I Do If
WHAT SHOULD I DO IF YOU NOTICE THAT POSSIBLE CAUSES WHAT SHOULD YOU DO Check the state of the There is no electrical The induction hob is not electrical installation. supply to the appliance. working. The pilot lights Check the fuses and The supply or on the keypad are all off differential switches. -
Page 15: Technical Details
Technical Information Technical details Class 1 hob. Dimensions and characteristics Model IR321.1 Hob dimensions Height (mm) Length (mm) Width (mm) Dimensions of the placement in the unit Length (mm)( L) Width (mm) (W) Depth (mm) Configuration Induction hotplate 1200W Induction hotplate 1800W Electrics Nominal Power...
