Summary of Contents for Galaxy Audio Any Spot DHT-QUAD

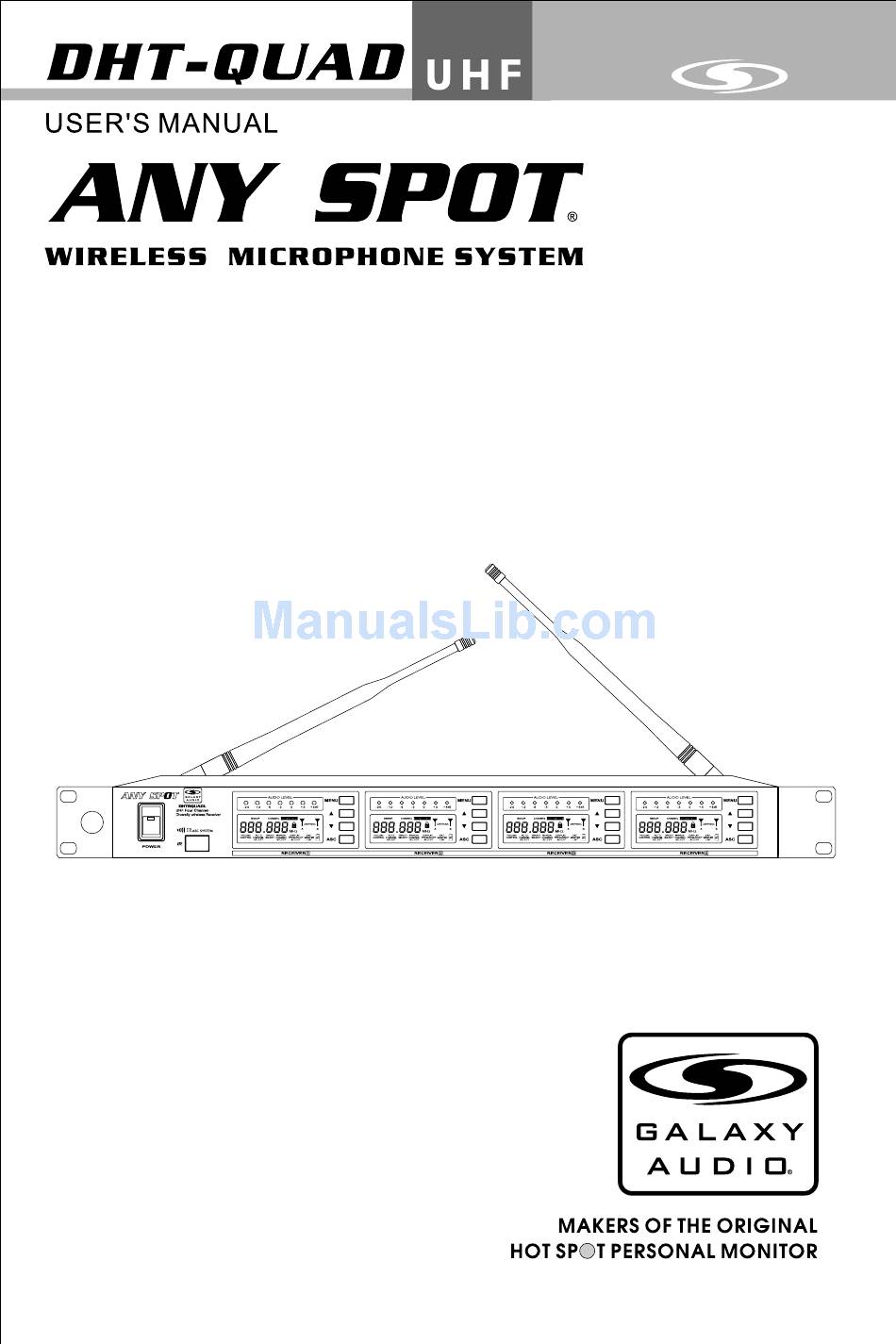

- Page 2 System Components.........1 DHT-QUAD Receiver Features......2 HH76/HH76SC Handheld Transmitter....3 MBP76 Body Pack Transmitter......4 System Setup............5 Rack-Mounting the Receivers......6 Troubleshooting..........7 Specifications............8 DHT-QUAD System Thank you for purchasing the DHT-QUAD wireless system. For users who need an advanced UHF wireless system, the DHT-QUAD provides an excellent solution. With 120 selectable channels, the DHT-QUAD is perfect for applications such as live shows, broadcast, meetings, musical instruments, etc.
- Page 3 All systems include: DHT-QUAD Receiver 2 (AA) Batteries ¼" to ¼" Audio Cable Power Supply Two Antennas Rack Ears User Guide DHT-QUAD Handheld System includes HH76 or HH76SC Handheld Mic/Transmitter DHT-QUAD/76 Lav/Headset/HLC Systems include: MBP76 Bodypack Transmitter. Mic (choice of Uni Lav, Uni Headset, or HLC Combo Lav/Headset) DHT-QUAD/76 Guitar system includes:...

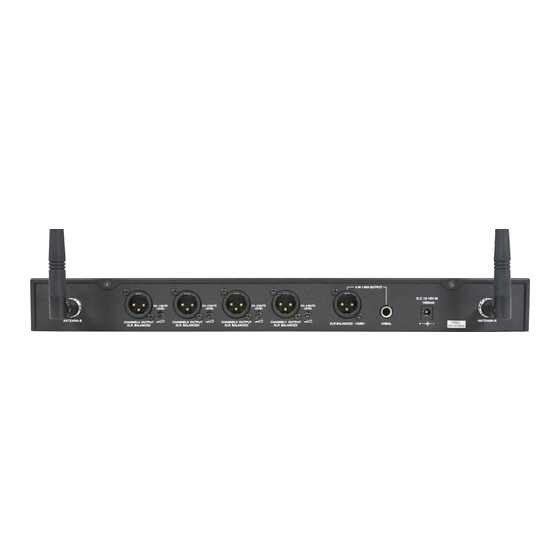

- Page 4 DHT-QUAD Receiver Features On/Off Switch System Menu Down button Please see ¡° System Setup¡± on Page 5 Infrared (IR) Window Antenna A Indicator Audio Level Meter Lights when Antenna A is active . LCD Panel Antenna B Indicator Lights when Antenna B is active . System Setup Button Please see “System Setup¡±...
-
Page 5: Battery Replacement
HH76/HH76SC Handheld Transmitter HH76/HH76SC Handheld Transmitter Functions: Interchangeable Microphone Head. HH76: Dynamic, HH76SC: Dynamic Super Cardioid LCD screen Power/Backlight/Mute Control Switch. Press and Hold for Power ON/OFF. Press and Release for Backlight. Press and Release for Mute On/Off. Select Button. Press and Hold to enter Group select. -
Page 6: Changing Batteries
Features Antenna. LCD panel. Please see (System Setup) on Page 5. Power/ASC/ Low Battery Indicator. Constant Green: Power ON. Flashing Green: IR ASC in progress, or Low Batteries. Mute Indicator. Constant Red: Audio Muted. Power/Mute Button. Push and Hold for Power On/Off. Push once for Mute On/Off. IR W indow. - Page 7 Receiver Programming Group and Channel Selection: Press “SET” button twice, “GROUP SELECT” will display, press to choose the appropriate frequency group, as shown on the left . Press “SET”again , “ MANUAL , press to choose the appropriate CHANNEL SELECT” will display channel, as shown on the left For best results when operating multiple systems, set all systems to a single group, then set each system to a unique channel within that...
- Page 8 Rack-Mounting the Receiver Maintain a line of sight between transmitter and antenna. Optional BNC Cables to Front mount antennas. Shown with optional ANTDIST antenna distributor. Four DHT-QUAD receivers Ten BNC connecting cables (optional) Two BNC connectors (optional)
-
Page 9: Tips For Improving System Performance
Tips for Improving System Performance Maintain a line of sight between transmitters and antennas. Avoid placing the receiver near metal surfaces or any digital equipment (CD players, computers, etc). Keep the receiver away from the wall and at least 1m from the ground. Cellular telephones and two-way radios can interfere with the operation of wireless systems. -
Page 10: Handheld Transmitter
System Frequency Range: 655 - 679 MHZ Handheld Transmitter: Transmitter Output level 10 dBm Band: UHF Max Audio input level: 0dBV Dimensions: 9.5" x 2.1" dia. (242mm x 54mm dia.) Operating Range Under Typical Conditions: 300' Note: actual range depends on RF signal Weight: 10.6oz (300 g) (without batteries) absorption, reflection, and interference. - Page 11 5. Damage occurring during the shipment or delivery of any Galaxy Audio product to Galaxy Audio after initial delivery of the product to you. 6. Damage to any Galaxy Audio product which has been altered or on which the serial number has been effaced or removed.
