Summary of Contents for Galaxy Audio VES

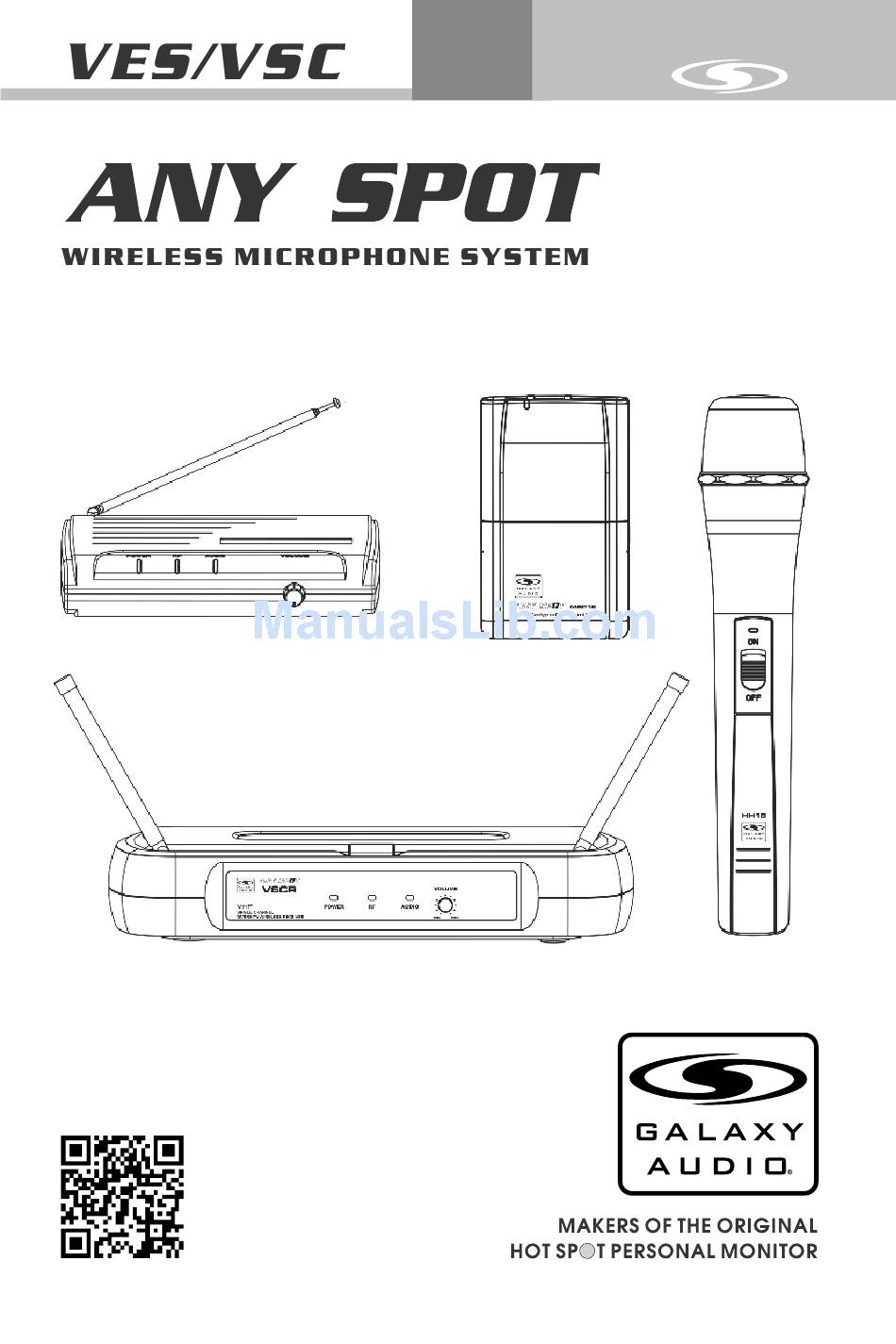

- Page 1 V H F USER'S MANUAL ®...
-
Page 3: Table Of Contents
Contents Contents System Components..................1 Functions of the VESR Receiver..............2 Functions of the VSCR Receiver..............3 Functions of the HH18 Hand Held Transmitter..........4 Functions of the MBP18 Body Pack Transmitter..........5 Troubleshooting....................6 Specifications....................7... -
Page 4: System Components

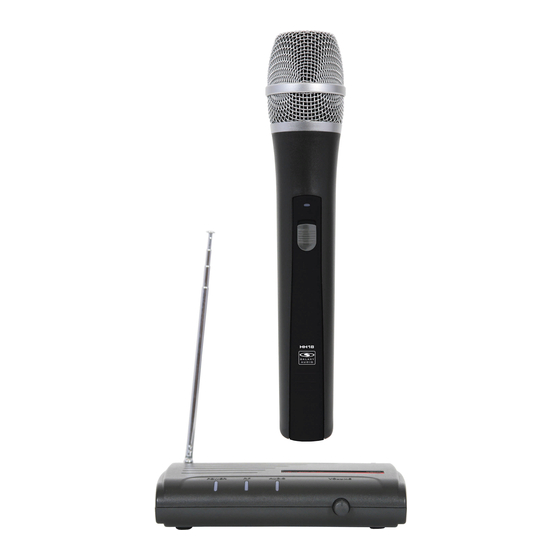

System Components System Components System Components All systems include: VESR or VSCR receiver 1 1/4" AF connector Power supply User guide VESR VSCR Hand Held System includes: HH18 handheld transmitter HH18 Triple Play System includes: MBP18 bodypack transmitter Lav, Headset mic and Guitar cable LV13-UBK Guitar Cable MBP18... -
Page 5: Functions Of The Vesr Receiver
Functions of the VESR Receiver Functions of the VESR Receiver Front Panel Power Indicator: Lights when Audio output level control is receiving power Clockwise increases the audio output, Counter RF signal indicator: Clockwise decreases the lights when transmitter is audio output. turned on indicating reception of RF signal Audio Signal Indicator:... -
Page 6: Functions Of The Vscr Receiver
Functions of the VSCR Receiver Functions of the VSCR Receiver Front Panel Power Indicator: Lights when Audio output level control is receiving power Clockwise increases the audio output, Counter RF signal indicator: Clockwise decreases the lights when transmitter is audio output. turned on indicating reception of RF signal Audio Signal Indicator:... -
Page 7: Functions Of The Hh18 Hand Held Transmitter
Functions of the HH18 Hand Held Transmitter Functions of the HH18 Hand Held Transmitter Microphone Grille Low Battery Indicator Lights when the battery is low Power Switch Battery Door Changing Batteries: Expected life for two 1.5V AA alkaline batteries is about 8 hours. When the battery indicator lights the batteries should be changed immediately (as shown below). -
Page 8: Functions Of The Mbp18 Body Pack Transmitter
Functions of the MBP18 Body Pack Transmitter Functions of the MBP18 Body Pack Transmitter On/Off/Mute switch. Gain adjustment switch Three gain settings are available on MBP18, Mic: Microphone 0dB: Guitar with passive pickups -10dB: Guitar with active pickups Microphone Input Jack Power/Low indicator light Red glow indicates low batteries and the batteries should be changed. -
Page 9: Troubleshooting
Trouble Shooting Trouble Shooting Trips for Improving System Performance • Maintain a line of sight between transmitter and antenna. • Avoid placing the receiver near metal surfaces or any digital equipment (CD players, computes, etc) • Keep the receiver away from the wall and over 3 feet from the ground •... -
Page 10: Specifications
Specifications Specifications VES/VSC System Frequencies: CODE V54 173.8 MHz CODE V59 174.1MHz CODE V60 174.5MHz CODE V61 174.8MHz Operating Range under Typical Condition: 150' (50m) Note: actual range depends on RF signals absorption, reflection, and interference. Audio Frequency Response: (+/-3 dB) 60Hz~16KHz Total Harmonic Distortion: (+/- 30 KHz deviation, 1 KHz tone) <1%... - Page 12 USER'S MANUAL THREE YEAR LIMITED WARRANTY WARRANTY Information can be viewed online at http://www.galaxyaudio.com/warranty.php 1-800-369-7768 www.galaxyaudio.com Specifications in this manual are subject to change without notice. © Copyright Galaxy Audio 2012 Printed in China V04242013...
