Summary of Contents for Galaxy Audio Dhtrquad

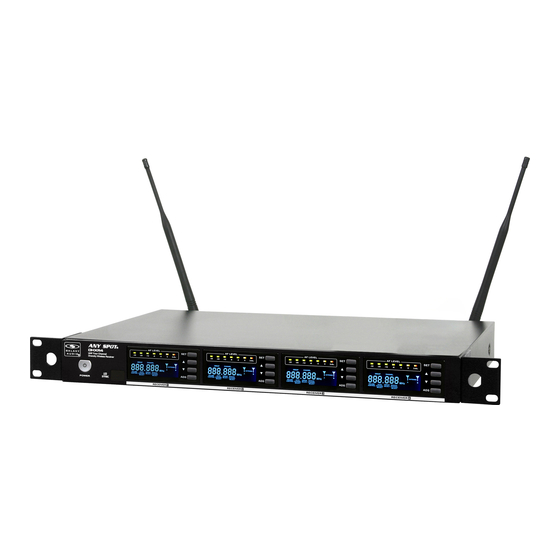

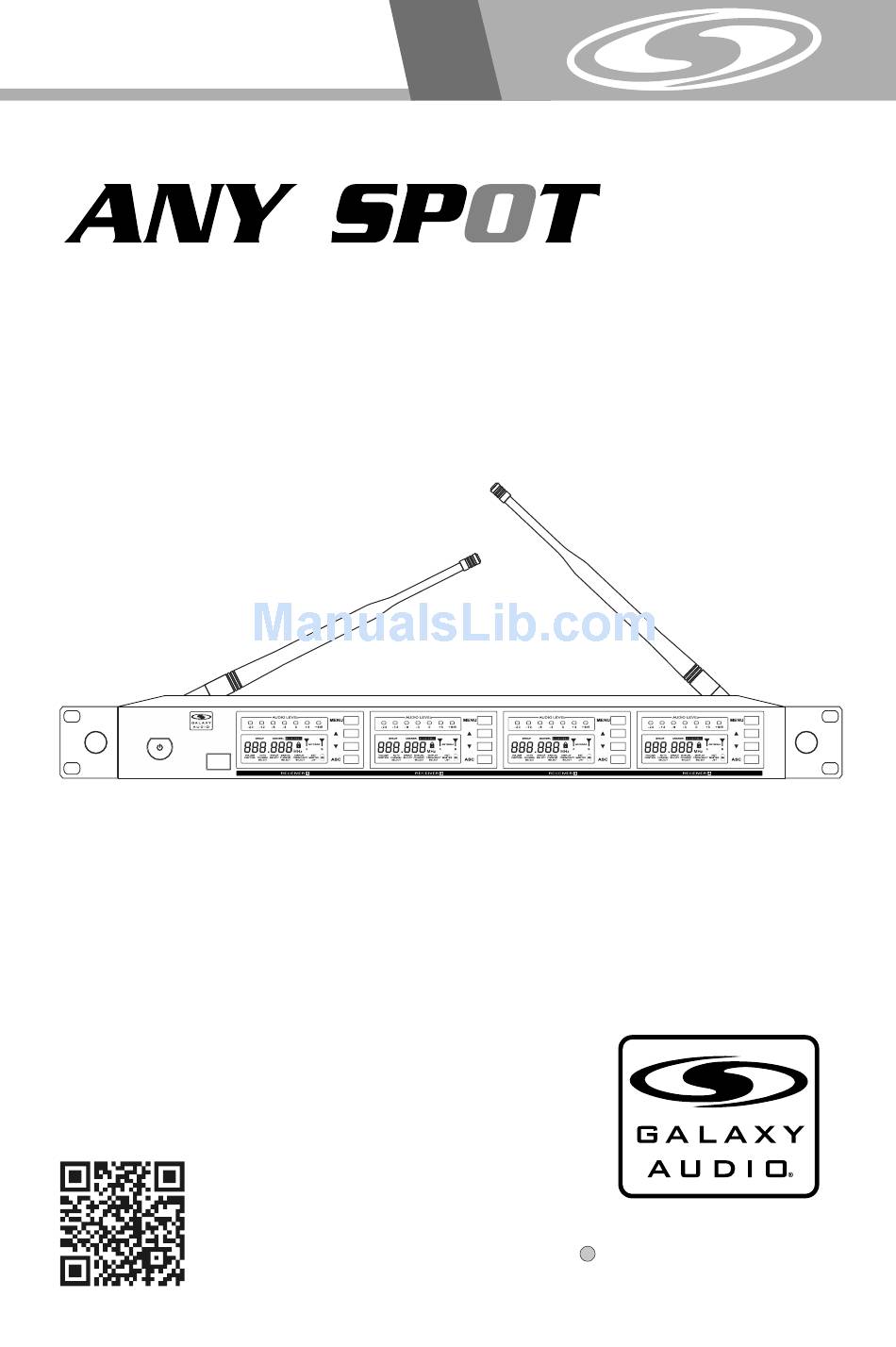

- Page 1 DHTRQUAD U H F USER'S MANUAL ® WIRELESS MICROPHONE SYSTEM ANY SPOT ® ® DHTRQUAD UHF Four Channel Diversity Wireless Receiver SYNC POWER MAKERS OF THE ORIGINAL HOT SPOT PERSONAL MONITOR...
-
Page 2: Table Of Contents
DHTRQUAD System DHTRQUAD System DHTRQUAD System Thank you for purchasing the DHTRQUAD wireless system. For users who need an advanced UHF wireless system, the DHTRQUAD provides an excellent solution. With 120 selectable channels, the DHTRQUAD is perfect for applications such as live shows, broadcast, meetings, &... -
Page 3: System Components
System Components ANY SPOT All systems include: ® ® DHTRQUAD UHF Four Channel Diversity Wireless Receiver SYNC DHTRQUAD Receiver POWER ¼" to ¼" Audio Cable Power Supply Two Antennas Extension Kit Rack Ears User Guide Transmitter Options: HH64 / HH64SC Handheld Mic/Transmitter... -
Page 4: Rack-Mounting The Receiver
Diversity Wireless Receiver ANT-DISTDC Info SYNC POWER ANY SPOT ® ® DHTRQUAD UHF Four Channel Diversity Wireless Receiver Four DHTRQUAD receivers POWER SYNC The ANT-DISTDC will provide DC power to operate up to 4 DHTRQUAD Receivers. ANT-DISTDC DC IN OUTPUT1 OUTPUT2... -
Page 5: Hh64/Hh64Sc Handheld Transmitter
HH64/HH64SC Handheld Transmitter HH64/HH64SC Handheld Transmitter Functions: Condensor mic Dynamic mic LCD screen Please See “system setup ” on page 8. Power Switch Microphone Input Sensitivity Control. GROUP CHANNEL Left turn for output level decrease, right BATT INFRARED turn for output level increase. IR Port receives infrared beam to synchronize frequencies. -
Page 6: Mbp64 Bodypack Transmitter
MBP64 Bodypack Transmitter MBP64 Bodypack Transmitter Functions: BodyPack Transmitter Antenna. Gain Switch. There are three Gain settings on the MBP64. Select the setting most suitable to your application. Mic: Microphone Level 0: Guitar Level -10dB: Line Level Low Voltage/IR Transmission LED. LED On: Battery Voltage OK. -
Page 7: Mbp76 Bodypack Transmitter
MBP76 Bodypack Transmitter MBP76 Bodypack Transmitter Features Antenna. LCD panel. Please see (System Setup) on Page 7. Power/ASC/ Low Battery Indicator. Constant Green: Power ON. Flashing Green: IR ASC in progress, or Low Batteries. Mute Indicator. Constant Red: Audio Muted. select Power/Mute Button. -
Page 8: Sm-W76 Wireless Shockmount Base
SM-W76 Wireless Shockmount Base SM-W76 Wireless Shockmount Base 1. Adjust the 16 position rotary knob on the rear of the SM-W76 base to change the frequency. A small flat headed screwdriver can be used. 2. Use the chart to set up the DHTR/TRCR Group & Channel to the frequency that corresponds to the SM-76 base. -
Page 9: System Setup
System Setup System Setup Receiver Programming Group and Channel Selection: GROUP CHANNEL Press “SET” button twice, “GROUP SELECT” will display, ANTENNA press to choose the appropriate frequency group. VOLUME AUTO GROUP MANUAL DISPLAY EXIT CONTROL CHANNEL SELECT CHANNEL FREQUENCY MASTER Press “SET”again , “... -
Page 10: Setting Up Multiple Receivers
Setting up multiple receivers Setting up multiple receivers ANY SPOT ® ® DHTRQUAD UHF Four Channel Diversity Wireless Receiver SYNC POWER 1) Power on any pre-existing wireless systems and transmitters except the first DHT system. 2) Power on the first DHT Receiver. -
Page 11: Functions Of The Dhtrquad Receiver
Functions of the DHTRQUAD Receiver Functions of the DHTRQUAD Receiver DHTRQUAD Receiver Features Front Panel ANY SPOT ® ® DHTRQUAD UHF Four Channel Diversity Wireless Receiver SYNC POWER On/Off Switch System Menu Down button Please see “ System Setup” on Page 8... -
Page 12: Troubleshooting
Troubleshooting Troubleshooting Tips for Improving System Performance Maintain a line of sight between transmitters and antennas. Avoid placing the receiver near metal surfaces or any digital equipment (CD players, computers, etc). Keep the receiver away from the wall and at least 1m from the ground. Cellular telephones and two-way radios can interfere with the operation of wireless systems. -
Page 13: Specifications
Specifications Specifications Shockmount Transmitter: System Number of Channels: 16 Frequency Range: CODE D 584~607 MHz Number of Simultaneous Systems: CODE L 655~679 MHz 4-8 across multiple bands Transmitter Output level: 10 dBm Carrier Frequency Bandwidth: Code D 584-607 MHz Band: UHF Code L 655-679 MHz Operating Range Under Typical Operating Range : 150'... -
Page 14: Accessories And Replacement Parts
Accessories and Replacement Parts Accessories and Replacement Parts Many of these parts and accessories may be found and purchased from the Galaxy Audio website in either the Galaxy Store (www.galaxyaudio.com/store.php) or in the accessories tab of each products web page. -
Page 15: Dhtrquad Frequency Chart
DHTRQUAD FREQUENCY CHART FCC Consumer Alert for Wireless Microphones (U.S.) Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts);... - Page 16 Information can be viewed online at http://www.galaxyaudio.com/warranty.php DHTRQUAD USER'S MANUAL Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2013 V09132013 Printed in China...
