Page 2: System Components

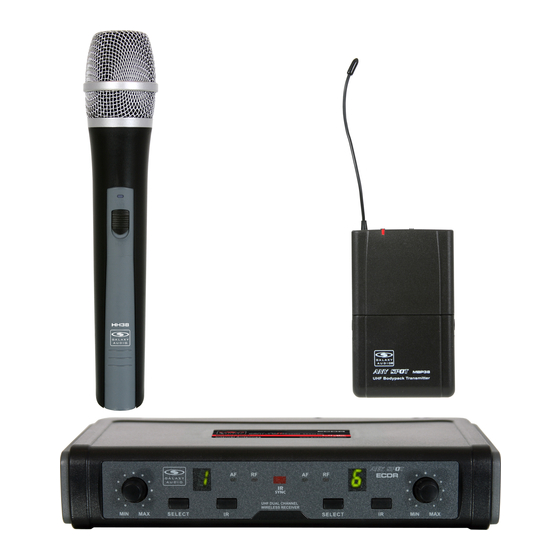

System Components System Components All ECD systems include the following components: ECD Receiver Power Adapter User Manual SELECT SELECT Handheld Microphone Systems include the following: HH38 Handheld Transmitter Lavalier/Headset Microphone systems include the following: MBP38 Bodypack Transmitter Microphone (choice of Lavalier, or Headset) Manual... -
Page 3: Functions Of The Ecdr Receiver
Functions of the ECDR Receiver Functions of the ECDR Receiver Front Panel SELECT SELECT Audio Output Level Control RF signal LED Channel display Infrared IR Window AF Signal LED Channel select button Automatic Synchronization Control (ASC) button Rear Panel Power Adapter Jack. ¼"... -
Page 4: Hh38 Handheld Transmitter
HH38 Handheld Transmitter HH38 Handheld Transmitter Functions: Microphone Head. Power LED and LOW battery indicator (red = Low battery) Power Switch Infrared receiver (IR) window Battery cover Changing Batteries: Expected life for two alkaline batteries is about 8 hours. If the power LED (green) turns red than the batteries are low and should be changed immediately (as shown below). -
Page 5: Mbp38 Bodypack Transmitter
MBP38 Bodypack Transmitter MBP38 Bodypack Transmitter Functions: Antenna. On/Off/Mute switch Gain adjustment switch Three gain settings are available on the Bodypack Transmitter, choose the appropriate setting for your instrument Mic: microphone 0: Guitar with passive pickups -10dB: Guitar with active pickups Microphone Input Jack Power/Low battery indicator light. -
Page 6: Troubleshooting
Trips for improving System Performance Trips for improving System Performance Maintain a line of sight between transmitter and antenna. Avoid placing the receiver near metal surfaces or any digital equipment (CD players, computes, etc) Keep the receiver away from the wall and over 3ft. from the ground Cellular telephones, two-way radios and other RF sources can interfere with the transmitting frequencies. -
Page 7: Specifications
Specifications Specifications System Handheld Transmitter: Available Channels: 16 Max Audio input level: 0dBV Frequency Range: CODE D 584~607 MHz CODE L 655~679MHz Dimensions: 10.8" x 1.9" dia. (275mm x 47mm dia.) Transmitter Output level 10 dBm Weight: 6.9oz (195g) (without batteries) Band: UHF Power Requirements: 2 “AA”... -
Page 8: Three-Year Limited Warranty
THREE YEAR LIMITED WARRANTY WARRANTY Information can be viewed online at http://www.galaxyaudio.com/warranty.php USER'S MANUAL Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2013 V03042013...
