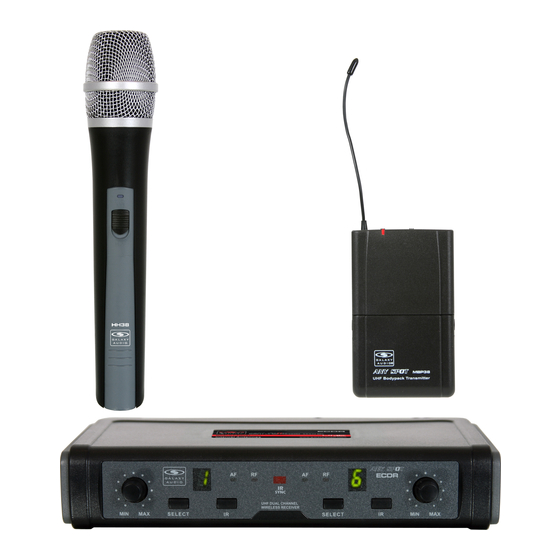

Summary of Contents for Galaxy Audio ECD Any Spot ECDR

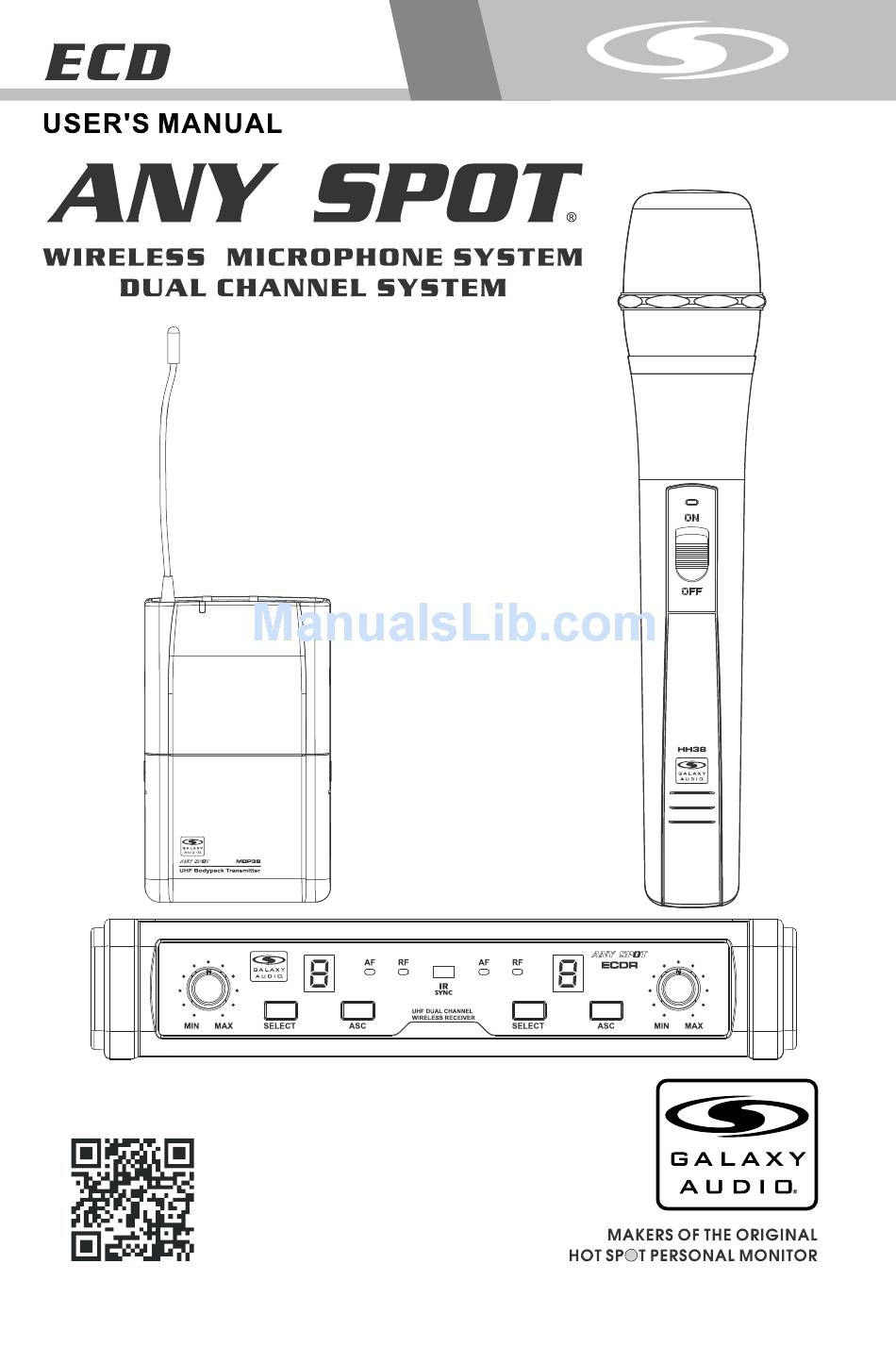

- Page 1 U H F...
-
Page 2: Table Of Contents
THIS RADIO EQUIPMENT IS INTENDED FOR USE IN PROFESSIONAL ENTERTAINMENT AND SIMILAR APPLICATIONS. Changes or modifications not expressly approved by Galaxy Audio Incorporated could void your authority to operate the equipment. Licensing of Galaxy Audio wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. -
Page 4: Functions Of The Ecdr Receiver
Functions of the ECDR Receiver Functions of the ECDR Receiver Front Panel SELECT SELECT Audio Output Level Control RF signal LED Channel display Infrared IR Window AF Signal LED Channel select button Automatic Synchronization Control (ASC) button Rear Panel Power Adapter Jack. ¼"... -
Page 5: Hh38 Handheld Transmitter
HH38 Handheld Transmitter HH38 Handheld Transmitter Functions: Microphone Head. Power LED and LOW battery indicator (red = Low battery) Power Switch Infrared receiver (IR) window Battery cover Changing Batteries: Expected life for two alkaline batteries is about 8 hours. If the power LED (green) turns red then the batteries are low and should be changed immediately (as shown below). -
Page 6: Mbp38 Bodypack Transmitter
MBP38 Bodypack Transmitter MBP38 Bodypack Transmitter Functions: Antenna. On/Off/Mute switch Gain adjustment switch Three gain settings are available on the Bodypack Transmitter (choose the appropriate setting) Mic: microphone 0: Guitar with passive pickups -10dB: Guitar with active pickups Microphone Input Jack Power/Low battery indicator light. -
Page 7: Tips For Improving System Performance
Tips for Improving System Performance Tips for Improving System Performance Maintain a line of sight between transmitter and antenna. Avoid placing the receiver near metal surfaces or any digital equipment (CD players, computes, etc) Keep the receiver away from the wall and over 3ft. from the ground Cellular telephones, two-way radios and other RF sources can interfere with the transmitting frequencies. -
Page 8: Frequency
Frequency Frequency ECD D CODE ECD L CODE 584.400 655.200 587.500 656.675 589.575 658.500 591.050 660.050 593.425 661.500 595.200 662.900 598.450 664.425 599.650 666.500 601.275 667.800 603.775 669.225 605.500 670.800 606.750 672.275 586.025 673.725 590.525 675.075 594.150 676.500 602.450 678.600... -
Page 9: Specifications
Specifications Specifications System Handheld Transmitter: Available Channels: 16 Dimensions: 10.8" x 1.9" dia. (275mm x 47mm dia.) Frequency Range: CODE D 584~607 MHz Weight: 6.9oz (195g) (without batteries) CODE L 655~679MHz Power Requirements: 2 AA Batteries, alkaline or rechargeable Transmitter Output level 10 dBm Battery Life: About 8 hours Band: UHF... - Page 10 Notes Notes...
- Page 11 Notes Notes...
