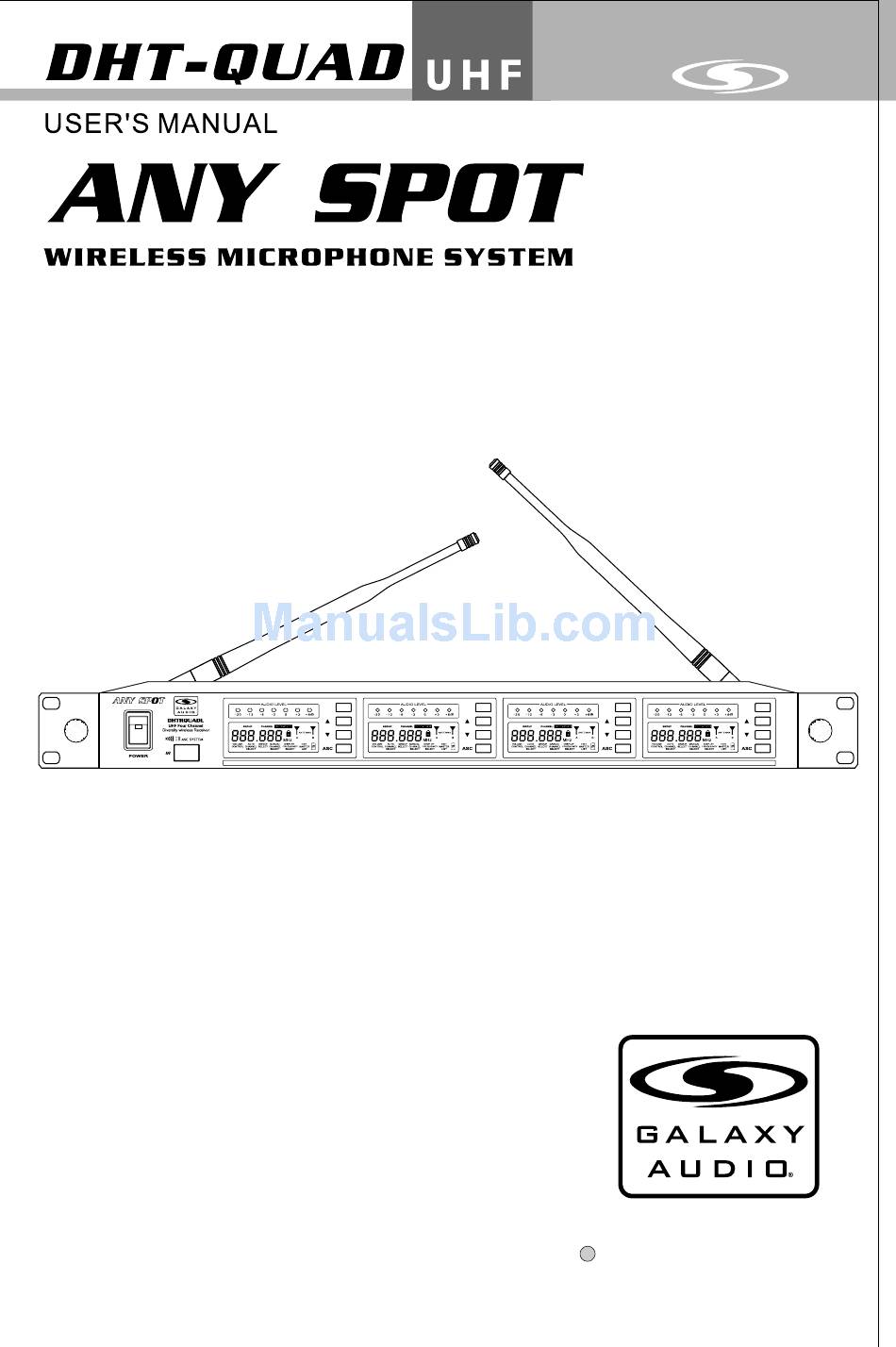

- Page 1 ® MENU MENU MENU MENU RECEIVER 1 RECEIVER 2 RECEIVER 3 RECEIVER 4 MAKERS OF THE ORIGINAL HOT SPOT PERSONAL MONITOR...
-
Page 2: Frequency Band
Troubleshooting Specifications DHT-QUAD System Thank you for purchasing the DHT-QUAD wireless system. For users who need an advanced UHF wireless system, the DHT-QUAD provides an excellent solution. With 120 selectable channels, the DHT-QUAD is perfect for applications such as live shows, broadcast, meetings, musical instruments, etc. Touch buttons and liquid crystal displays allow for a quick and simple system setup. - Page 3 MENU MENU MENU MENU RECEIVER 1 RECEIVER 2 RECEIVER 3 RECEIVER 4 AS-HS AS-LV...
- Page 4 AUDIO LEVEL AUDIO LEVEL AUDIO LEVEL AUDIO LEVEL MENU MENU MENU MENU ® - 2 0 - 1 2 - 2 0 - 1 2 - 2 0 - 1 2 - 2 0 - 1 2 DHTRQUADL UHF Four Channel GROUP CHANNEL GROUP...
- Page 5 Interchangeable Microphone Head. HH76: Dynamic, HH76SC: Dynamic Super Cardioid LCD screen Power/Backlight/Mute Control Switch. Press and Hold for Power ON/OFF. Press and Release for Backlight. Press and Release for Mute On/Off. Select Button. Press and Hold to enter Group select. Press repeatedly to choose Group Number.
-
Page 6: Changing Batteries
Features Antenna. LCD panel. Please see (System Setup) on Page 8. Power/ASC/ Low Battery Indicator. Constant Green: Power ON. Flashing Green: IR ASC in progress, or Low Batteries. Mute Indicator. Constant Red: Audio Muted. select Power/Mute Button. Push and Hold for Power On/Off. Push once for Mute On/Off. IR W indow. - Page 7 Group and Channel Selection: Press “SET” button twice, “GROUP SELECT” will display, press to choose the appropriate frequency group, as shown on the left . Press “SET”again , “ MANUAL CHANNEL SELECT” will display , press to choose the appropriate channel, as shown on the left For best results when operating multiple systems, set all systems to a single group, then set each system to a unique channel within that...
- Page 8 AUDIO LEVEL AUDIO LEVEL AUDIO LEVEL AUDIO LEVEL MENU MENU MENU MENU ® - 2 0 - 1 2 - 2 0 - 1 2 - 2 0 - 1 2 - 2 0 - 1 2 DHTRQUADL UHF Four Channel GROUP CHANNEL GROUP...
-
Page 9: Tips For Improving System Performance
Tips for Improving System Performance Maintain a line of sight between transmitters and antennas. Avoid placing the receiver near metal surfaces or any digital equipment (CD players, computers, etc). Keep the receiver away from the wall and at least 1m from the ground. Cellular telephones and two-way radios can interfere with the operation of wireless systems. -
Page 10: Handheld Transmitter
System Frequency Range: CODE D 584~607 MHz Handheld Transmitter: CODE L 655~679MHz Transmitter Output level 10 dBm Band: UHF Max Audio input level: 0dBV Dimensions: 9.5" x 2.1" dia. (242mm x 54mm dia.) Operating Range Under Typical Conditions: 300' Note: actual range depends on RF signal Weight: 10.6oz (300 g) (without batteries) absorption, reflection, and interference. - Page 11 5. Damage occurring during the shipment or delivery of any Galaxy Audio product to Galaxy Audio after initial delivery of the product to you. 6. Damage to any Galaxy Audio product which has been altered or on which the serial number has been effaced or removed.
