Page 2: Table Of Contents
Special Projects EVO True Wireless Fitness Transmitter Ansr Audio Scan16 Professional UHF Receiver Table of Contents Page Introduction ............2 Safety ..............2 Environment ............2 Wireless Note ............2 Quick Start Guide ..........3 Product Description ..........4 6.1 SP-25R Scan16 Receiver ........ -
Page 3: Introduction
1. Introduction Thank you for purchasing the Scan16 Professional Wireless Microphone System featuring the EVO True Wireless Fitness Transmitter (for brevity, noted in this manual as 'EVO'). This Patent Pending PLL synthesized wireless microphone system operates in an FCC approved UHF band frequency with 16 selectable channels. -
Page 4: Quick Start Guide
5. Quick Start Guide ● Fully charge the EVO transmitter by connecting the charging adapter to the supplied wall plug transformer. Leave your EVO transmitter powered OFF while charging. Green LED will turn off when charged. Replace charging adapter cover before use. NOTICE –... -
Page 5: Product Description
6. Product Description 6.1 Receiver The SP-25R receiver is designed for use only with Ansr Audio / Special Projects 16- channel selectable channel transmitters. The receiver operates in UHF 540-570 MHz frequency band with PLL synthesized control. SP-25R POWER VOLUME SP-25R DIVERSITY RECEIVER 5 4 3 AUDIO OUT... -
Page 6: Sp-25R Scan16 Receiver
1. Power: Press for 2 seconds to power the receiver on or off. 2. Channel Display: LED channel displays the channel number. 3. Button : When the LED display starts flashing, press this button to change the channel forward. △ 4. -
Page 7: Evo True Wireless Fitness Transmitter

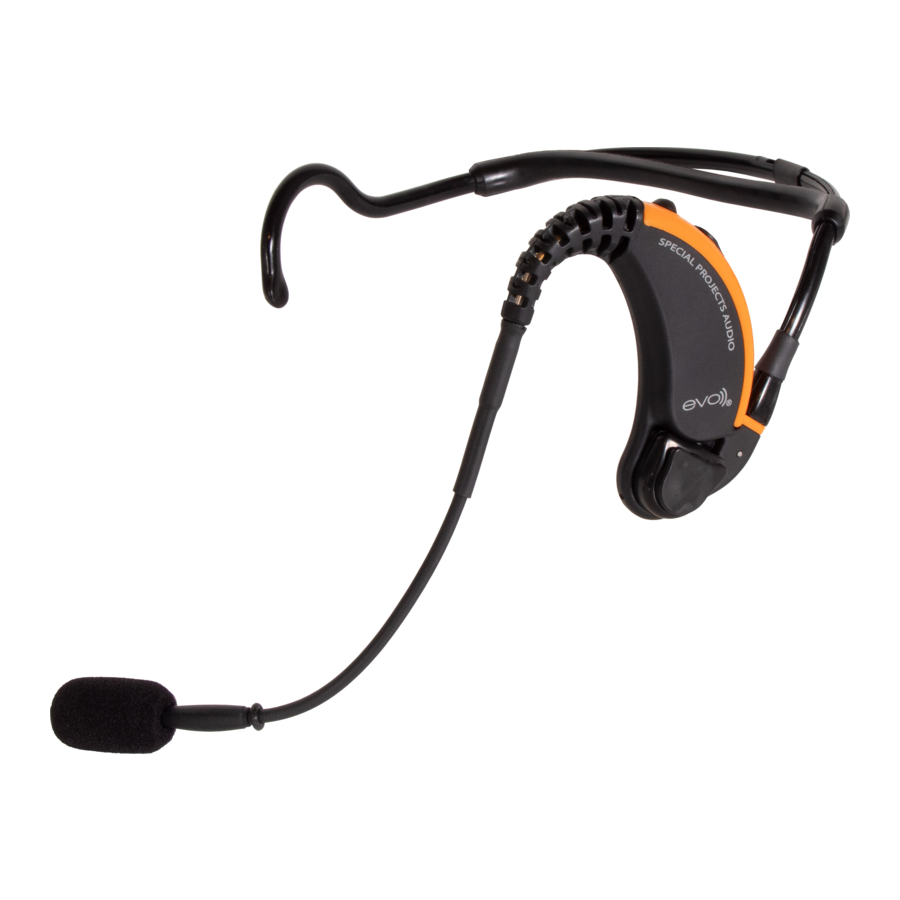

6.2 EVO True Wireless Fitness Transmitter 1. Microphone Element: Shown without the windscreen. Always be sure the side with the dot is toward the mouth. In the event that you experience a low audio level with excessive feedback, check the direction of the microphone element. DO NOT twist the element. 2. -
Page 8: Setting Up
7. Setting Up NOTICE: Prior to setting up, please check that the transmitter and receiver are tuned to the same frequency. Two or more transmitters operating on the same frequency cannot be used at the same time in the same area. For each extra transmitter, please select a different frequency which can be used simultaneously in the local area. -
Page 9: Charging The Evo
7.3 Charging The EVO True Wireless Fitness Transmitter NOTICE: Prior to use, it is necessary to fully charge your EVO transmitter. Initial charge from a depleted state may take up to four (4) hours or more. NOTICE: The supplied charger is designed specifically for use with the EVO True Wireless system. -
Page 10: Channel Setup: Auto Or Manual
7.4 Setting the Operating Channel NOTICE: Please keep transmitter at least one meter away from receiver. 7.4.1 Manual Mode Setting interference-free channel by manual operation. ● Press button “Set” for 1 second to let LED channel display flashing. ● Press button △... -
Page 11: Basic Connections
8. Basic Connections 8.1 Connecting To A Sound System Connect the receiver output to the audio mixer or amplifier input, using a standard XLR microphone cable or ¼ inch audio cable. Never use the balanced and unbalanced audio outputs at the same time! This may cause signal loss or increased noise. -
Page 12: Rackmounting
8.2 Rackmounting To combine two receivers in a 19" standard rack by using 2 short L type plastic racks (L2) and 2 metal connecting plates (C1). (Each system includes L2 and C1.) Note that if you are using two systems at one time, they must operate on different channels. Refer to section 7.4 and 7.5 for details. -
Page 13: System Features
9. System Features ● Operates in an FCC-safe UHF frequency band – 16 operating frequencies over 6 television channels (25, 26, 27, 28, 29, 30). ● Automatically scans upward to the next open frequency at the touch of a button. ●... -
Page 14: Accessories
11. Accessories WMC-EVO Charging power supply for the EVO True Wireless Headset Mic BAGY Carry Pouch for the EVO True Wireless Headset Mic. (With Single EVO Headset Purchase Only) WS-EVO-1BOOM Windscreen for the EVO True Wireless Headset Mic SDEVO Standard/Flathead Pocket Screwdriver for EVO True Wireless Headset Mic Channel Selection PS-SP25R... -
Page 15: Troubleshooting
This warranty is void in the event of unauthorized repairs or modifications not made by Galaxy Audio. Any attempt to open or service any component of your wireless system will void this warranty. If you have any questions, please call us at 1-316-263-2852 or contact support at:... - Page 16 WARRANTY Information can be viewed online at https://www.galaxyaudio.com/support/warranty www.galaxyaudio.com/support/warranty USER’S MANUAL Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2021 V20210212...
