71-8745-250
2/13
Hallows Eve
Hallows Eve
4-6-0 Steam Locomotive
4-6-0 Steam Locomotive
Owner's Manual
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hallows Eve4-6-0 Steam Locomotive and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel Hallows Eve4-6-0 Steam Locomotive

Summary of Contents for Lionel Hallows Eve4-6-0 Steam Locomotive

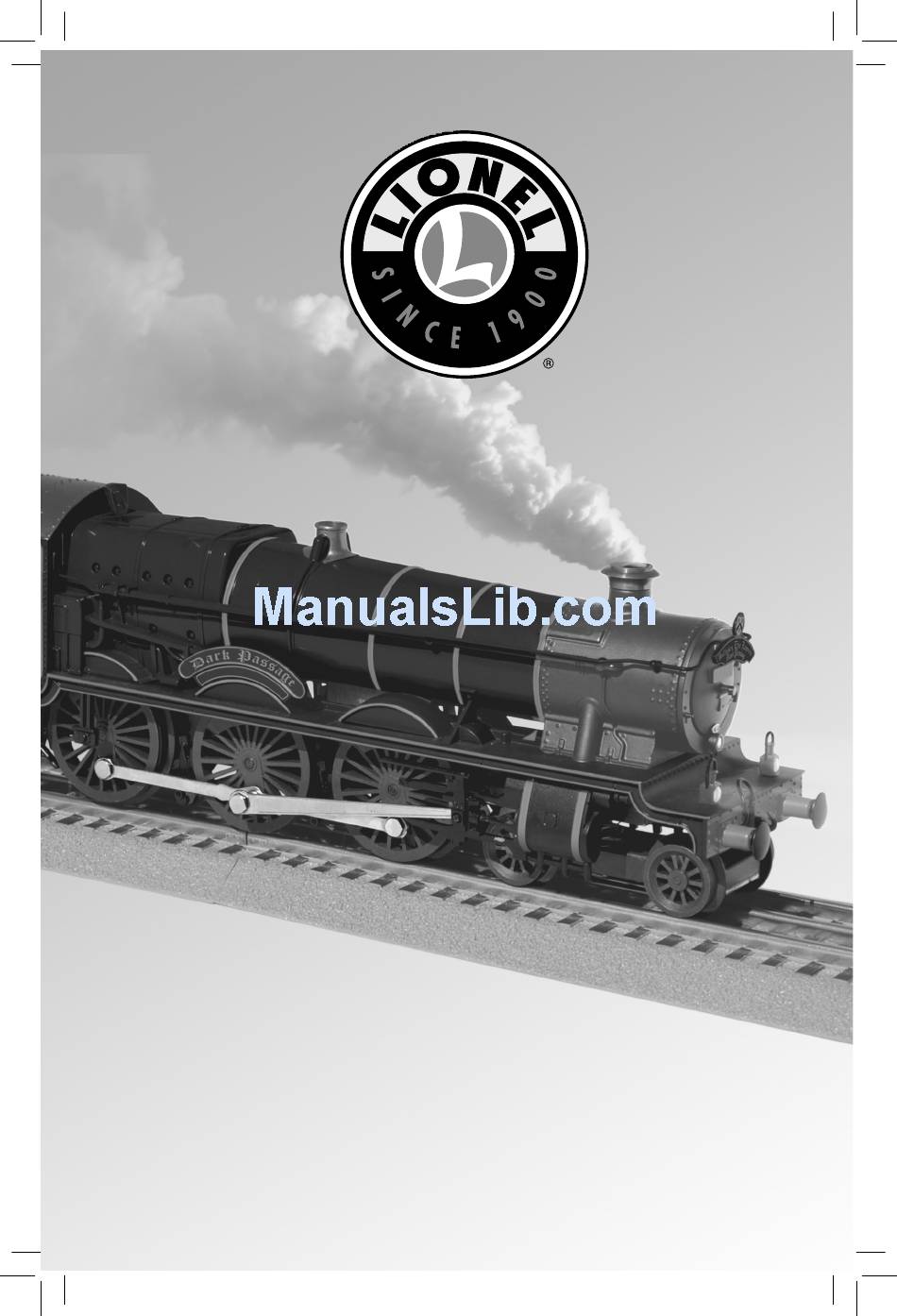

  • Page 1 71-8745-250 2/13 Hallows Eve Hallows Eve 4-6-0 Steam Locomotive 4-6-0 Steam Locomotive Owner’s Manual Owner’s Manual...
  • Page 2 Congratulations! ongratulations on your purchase of the Lionel Hallows Eve 4-6-0 steam locomotive and tender. Decorated in a scary black and orange livery, this powerful locomotive features spooky sounds to scare up some fun around your layout. Locomotive Features • Bright headlight •...

  • Page 3: Table Of Contents

    Adding smoke fluid to your locomotive’s smoke generator Coupling Reverse unit procedure SpookySounds operations Operating the locomotive's sounds Installing a Lionel Sounds Activation Button Maintaining and servicing your set Lubricating your locomotive Replacing your locomotive’s traction tire Replacing your locomotive’s headlamp...

  • Page 4: Running Your Locomotive

    Figure 1. Drawbar connection Power up your locomotive with your transformer. Your locomotive is designed to operate on 7-15 volts alternating cur- rent. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. Do not power your locomotive with direct-current (DC) transformers.

  • Page 5: Adding Smoke Fluid To Your Locomotive's Smoke Generator

    ON position. Refer to Figure 3 on page 7 for the location of the switch. The smoke generator requires the periodic addition of Lionel smoke fluid in order to function. Add 10-15 drops of fluid directly into the locomotive’s stack. Smoke production will commence after running for several minutes.

  • Page 6: Coupling

    Running your locomotive Coupling hen coupling your cars, at least one of the mating couplers must be open as shown at the left in Figure 2. Press down on the lock release to open the coupler, then push the cars toward each other until they lock together.

  • Page 7: Reverse Unit Procedure

    Running your locomotive Reverse unit procedure hen the reverse unit switch is in the RUN position, your locomotive sequences through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on. To “lock” your locomotive into forward operation only, you can deactivate the reverse unit’s sequencing function.

  • Page 8: Spookysounds Operations

    Transformers produced by other manufacturers may not be capable of activating this Note! feature. We recommend using a Lionel 6105906001 Sound Activation Button (avail- able separately) if the WHISTLE button on your transformer does not work.

  • Page 9: Installing A Lionel Sounds Activation Button

    SpookySounds operations Installing a Lionel Sound Activation Button f your transformer lacks WHISTLE/HORN and BELL buttons, you will need to install Lionel no. 610-5906-001 Sound Activation Buttons (available separately) to activate the locomotive’s whistle and bell sounds. Connect the buttons as shown below. Be sure that all track power passes through the Sound Activation Button(s).
  • Page 10 We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do) and avoid getting grease or oil on the locomotive’s wheels, contact roll- ers, or your track.

  • Page 11: Replacing Your Locomotive's Traction Tire

    Refer to Figure 5. Remove the old traction tire from under the drive rod and slip on the replacement, Lionel part no. 6000242206. Replace the spacer, retighten the drive rod screw, and you’r e ready to pull that long freight back to the yard.

  • Page 12: Limited Warranty/Lionel Service

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
