- Page 1 73-0144-250 73-0144-250 11/10 11/10 Operation Eagle Justice Operation Eagle Justice Train Set Train Set Owner’s Manual Owner's Manual Featuring Featuring...

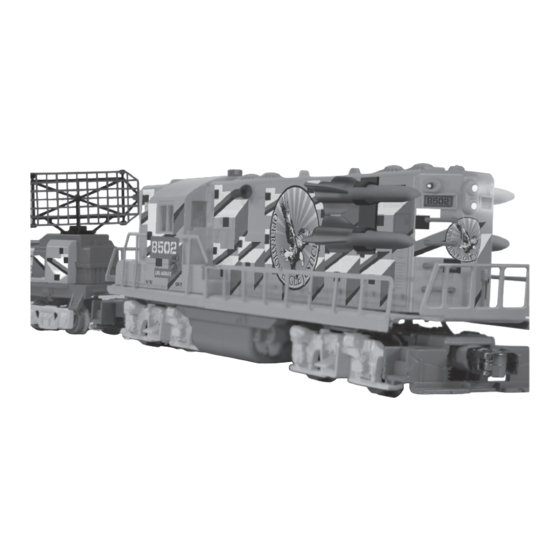

- Page 2 Operation Eagle security caboose guards the train from any tail-end attack. In dramatic decoration, the Operation Eagle Justice train set offers a wide variety of action on your traditional layout. Each car in this special set includes an operating feature, includ- ing the Chalmers-type car that fires missiles, a rotating antenna on the radar car, the illumi- nated searchlight on the security car, and lighted containers on the traditional flatcar.
-
Page 3: Table Of Contents
Maintaining your Operating Radar Car Missile Firing Car Firing the missiles Security Caboose Operating the searchlight Adjusting the platform screws Replacing the searchlight lamp Replacing the driving washer Toxic Waste Car Replacing the container lamps FCC Statement Limited Warranty/Lionel Service... -
Page 4: Locomotive Operations
Refer to the following section for information on coupling the cars. Power up your locomotive with your transformer. Your locomotive is designed to operate on 7-15 volts alternating cur- rent. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. Do not power your locomotive with direct-current (DC) transformers. Note! The locomotive was designed for use with alternating-current (AC) transformers only. -
Page 5: Operating The Trainsounds Sound System
Locomotive operations Operating the TrainSounds sound system hen you power up the locomotive on the track, you will hear the sounds of the idling diesel motor. As you increase speed, the RPM sounds will ramp up through two levels. Horn Press the HORN button on your transformer to sound the horn. -
Page 6: Adjusting The Volume
Locomotive operations Adjusting the volume se the volume control knob on the underside of the locomotive to adjust the volume. Refer to Figure 2 on page 8 for the location of the volume control knob. Silencing the diesel roar o silence the diesel roar, use the volume control knob to turn the sound all the way down. Refer to Figure 2 on page 8 for the location of the volume control knob. -
Page 7: Sounding The Locomotive's Horn And Bell
HORN and BELL buttons on your transformer to activate the locomotives horn and bell sounds. If your transformer lacks HORN and BELL buttons, you will need to install Lionel no. 610-5906-001 Sound Activation Buttons (available separately) to activate the locomotive’s horn and bell sounds. -
Page 8: Reverse Unit Procedure
Running your train Reverse unit procedure hen the Electronic E-unit Direction Lock switch is in the RUN position, your locomotive sequences through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on. To lock your locomotive into forward direction only operation, you can deactivate the Electronic E-unit’s sequencing function. -
Page 9: Maintaining And Servicing Your Locomotive
Maintaining and servicing your locomotive Lubricating your locomotive elp your Lionel locomotive lead a long and productive life on your railroad by maintain- ing it properly. We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do), and avoid getting grease or oil on the locomotive’s wheels, contact... -
Page 10: Replacing Your Locomotive's Traction Tire
Refer to Figure 4. Carefully remove the lamp assembly from the bracket, then gently pull the expired lamp from its socket. Replace the expired lamp with Lionel part no. 630-8352-311, available from your authorized Lionel Service Center or Lionel Service. For more information, see page 16. -
Page 11: Operating Radar Car
Operating Radar Car Replacing the lamp in your Operating Radar Car our Operating Radar Car is illuminated by a small lamp, Lionel part no. 600-2314-300. During the course of normal operations, this lamp may require replacement. Replacement lamps are available at your authorized Lionel Service Center or from Lionel Service. -
Page 12: Missile Firing Car
Missile Firing Car Firing the missiles ollow these step sand refer to Figure 7 as you operate this car. Use only the projectiles included with this product. Do not aim the projectile and/or launching mechanism at any person. Adult supervision is recommended. Keep clear of the missiles and launching mechanism. -
Page 13: Security Caboose
Security Caboose Operating the searchlight urn the searchlight off and on using the switch at the bottom of the car. Refer to Figure 8 for its location. Do not touch the stamped metal platform and the base of the searchlight during Caution! operation. -
Page 14: Replacing The Searchlight Lamp
Simply lift off the searchlight housing and base to access the expired lamp, then press down and turn the expired lamp to remove it. Refer to Figure 9. Replace it with Lionel part no. 600-0363-300, available at your Authorized Lionel Service Center. -
Page 15: Toxic Waste Car
Refer to Figure 10 below. Unscrew the lamp and replace it with Lionel part no. 610-6666-301, available at your authorized Lionel Service Center or from Lionel Service. Press the container back onto the base to complete the lamp replacement. -
Page 16: Limited Warranty/Lionel Service
(or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
