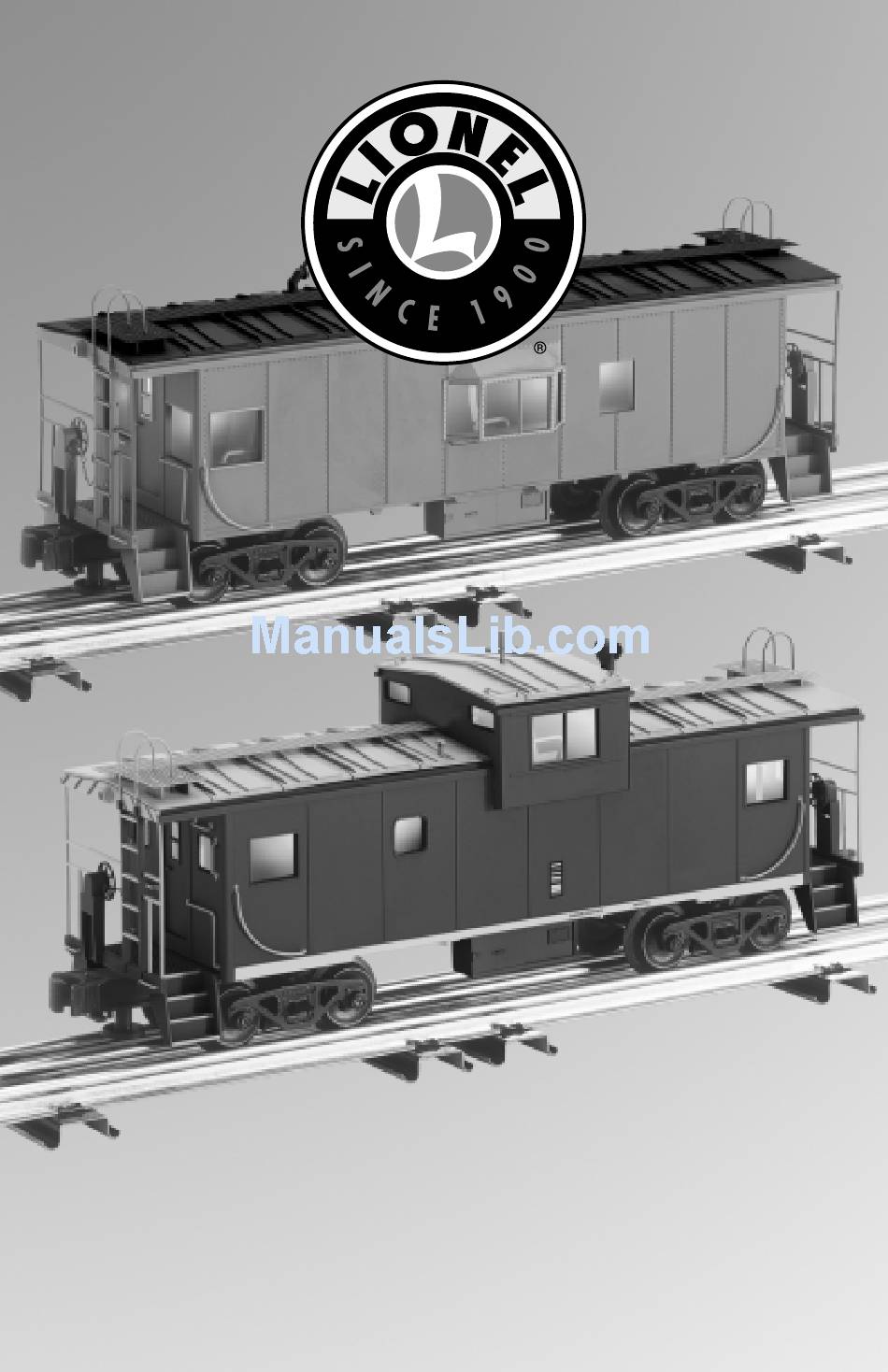

71-7658-250
4/04
Lionel
Bay Window and
Extended Vision Caboose
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bay Window and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lionel Bay Window

Summary of Contents for Lionel Bay Window

  • Page 1 71-7658-250 4/04 Lionel Bay Window and Extended Vision Caboose Owner’s Manual...

  • Page 2: Table Of Contents

    Lionel Bay Window or Extended Vision Caboose! These cars feature fully detailed, lighted interiors, operating smoke units, and separately applied details. The trucks feature rotating roller bearing caps. The Bay Window and Extended Vision Cabooses are perfect for any O gauge layout with O-31 minimum curves.

  • Page 3: Installing The Roof Details

    Installing the roof details wo small roof details have been packed separately to prevent damage in shipping. Install these pieces by pressing them into the locations shown in Figure 1. Extended window vision caboose caboose Figure 1. Roof details Operating the couplers o operate the couplers by hand, slide the uncoupling tab on the side of the coupler shaft back towards the car.

  • Page 4: Removing The Cupola (Extended Vision Caboose Only)

    The smoke generator requires the periodic addition of Lionel smoke fluid in order to function. A small tube of smoke fluid is included with this car. Pierce the end of the tube with a pin, then add five to eight drops of smoke fluid directly into the smokestack.

  • Page 5: Switching Your Smoke Generator On Or Off

    Switching your smoke generator ON or OFF s illustrated in Figure 5, the SMOKE unit switch is located on the bottom of your caboose. Sliding this switch to the ON position will activate the smoke generator. Be sure that you have added smoke fluid when the switch is in the ON position.

  • Page 6: Installing The Scale Smokestack

    Refer to Figure 5 on page 5 for the location of the ON/OFF switch. 2. Remove the two wire braces attached to the smokestack. Refer to Figure 6. Bay Window Caboose Gently pull the wires away from the stack and pull them out of the roof.

  • Page 7: Replacing The Interior Lamps

    Be careful that you do not scratch the paint when prying the tabs Caution! out of the slots. 5. Locate and unscrew the expired lamp(s). Refer to Figure 7. 6. Replace the expired lamps with Lionel part no. 610-7642-300. 7. Reassemble the caboose in reverse order. Part no. 610-7642-300 Tab location Lift roof here Figure 7.

  • Page 8: Limited Warranty/Lionel Service

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
