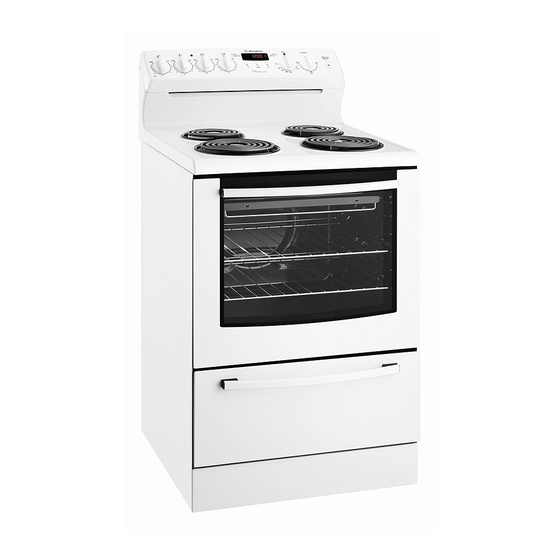

600mm upright cooker
Hide thumbs Also See for WLE620WA:

Advertisement

Table of Contents

USER MANUAL
600mm Upright Cooker
WLE620WA, WLE622WA,
WLE624WA, WLE625WA,
WLE626WA,WLE644WA,
WLE645WA, WLE646WA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLE620WA and is the answer not in the manual?

Questions and answers

Related Manuals for Westinghouse WLE620WA

Summary of Contents for Westinghouse WLE620WA

  • Page 1 USER MANUAL 600mm Upright Cooker WLE620WA, WLE622WA, WLE624WA, WLE625WA, WLE626WA,WLE644WA, WLE645WA, WLE646WA...

  • Page 2: Table Of Contents

    CONGRATULATIONS CONTENTS Congratulations and thank you for choosing our cooker. Important safety instructions ........3 We are sure you will find your new appliance a pleasure Installation ............... 4 to use. Before you use the appliance, we recommend that Controls ..............8 you read through the entire user manual, which provides Understanding the cooker ........

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Before you use the appliance, we recommend that you Hotplates (Generally) read through the relevant sections of this manual, which • Do not allow pots to boil dry, as damage to both pan provides the description of your appliance and its functions. and hotplate may result.

  • Page 4: Installation

    See table below. Supply cord specifications MODEL CURRENT WIRE MINIMUM RATING SECTION TEMP (AMPS) RATING (°C) WLE620WA WLE622WA WLE624WA WLE625WA WLE626WA WLE644WA WLE645WA WLE646WA INSTALLATION...
  • Page 5 INSTALLATION Step 2: Fixing anti-tilt bracket WARNING CAUTION Position the anti-tilt bracket so that it will fully engage into 5mm Clearance min. 596mm 5mm Clearance min. the slot at the rear of the cooker. The bracket is mounted centrally at the rear of the cooker. Anchor the bracket into position using appropriate fasteners.
  • Page 6 INSTALLATION WARNING WARNING Step 3: Stability bolt 1. Remove oven door – to be done by qualified personnel only. (Refer to procedure). 2. Remove screws from kick panel. To remove kick panel lift kick panel upwards to release the two Location Tabs from the holes in the bottom of the panel.
  • Page 7 INSTALLATION Fitting the grill dish supports WARNING WARNING • Insert the rear hook into the rear hole. • Align the front peg to the front hole and push in firmly. Fitting oven shelves 1. Ensure shelf orientation is correct (refer to diagram below). 2.

  • Page 8: Controls

    CONTROLS WLE620WA – Mercury 1. Hotplate Control Knobs 4. Oven Indicator Lamp • • Adjusts temperature of hotplate. Comes on when you operate Can be rotated in either direction. the oven temperature control 2. Hotplate Indicator Lamp knob. Cycles on and off •...
  • Page 9 CONTROLS WLE624WA – Neptune 1. Hotplate Control Knobs 5. Oven Indicator Lamp • Adjusts temperature of hotplate. • Comes on when you operate Can be rotated in either direction. the oven temperature control 2. Hotplate Indicator Lamp knob. Cycles on and off •...
  • Page 10 CONTROLS WLE626WA – Saturn 1. Hotplate Control Knobs 6. Function Switch • Sets oven functions (all functions include oven light) • Adjusts temperature of hotplate. Can be rotated in either direction. Fan Bake 2. Hotplate Indicator Lamp Bake • Comes on when you turn a hotplate on. Maxi Grill 3.
  • Page 11 CONTROLS WLE645WA 1. Hotplate Control Knobs 5. Grill Temperature Control Knob • Adjusts temperature of hotplate. • Sets grilling temperature for Can be rotated in either direction. separate grill. Can be rotated 2. Hotplate Indicator Lamp in either direction. 6. Grill Indicator Lamp •...

  • Page 12: Understanding The Cooker

    UNDERSTANDING THE COOKER Separate grill models Control panel Hotplate Grill element Grill dish and grill rack with removable side support racks (where fitted) Grill door Fan (Fan forced models only) Removable shelves Oven door Removable inner glass Kick panel UNDERSTANDING THE COOKER...
  • Page 13 UNDERSTANDING THE COOKER Grill in oven models Control panel Hotplate Fan (Fan forced models only) Grill dish and rack Removable shelves Oven door Removable inner glass Storage or warmer drawer Kick panel UNDERSTANDING THE COOKER...

  • Page 14: Using The Hotplates

    USING THE HOTPLATES Hotplate indicator lamp GOOD (recessed base) (convex base) (undersize) (oversize) GOOD Hot Surface Warning Light (recessed base) (convex base) (undersize) (oversize) (moisture on hotplate) (no utensil) Radiant Hotplates Cooking Do’s and Don’ts The high-speed radiant coil hotplates heat rapidly •...

  • Page 15: Understanding The Functions

    UNDERSTANDING THE FUNCTIONS WARNING CAUTION Fan Bake Do not line the bottom of the oven with foil or place anything on bottom surface of oven liner as trapped heat will crack or Heat comes from the element surrounding the fan. This fan craze oven liner.
  • Page 16 UNDERSTANDING THE FUNCTIONS Grilling (Separate) WARNING WARNING The “Grill” works by directing radiant heat which comes Always turn your grill off immediately after use, as fat left from the powerful upper element onto the food. The grill there may catch fire. function is suitable for tender cuts of meat, steak, chops, sausages, fish, cheese toasties and other quick cooking Do not cover the grill rack with foil.

  • Page 17: Cooking Guide For Ovens

    COOKING GUIDE FOR OVENS RAPID FOOD BAKE FAN BAKE BASE HEAT GRILL FAN GRILL MAXI GRILL HEAT Baked Products Single trays 3 trays 2 trays Scones/small cakes Muffins Slices Cakes Fruit Cakes Egg Recipes Baked Custards Pavlova Meringues Pies & Pastry Fish Meats Beef Roast...
  • Page 18 UNDERSTANDING THE FUNCTIONS General Purpose Socket Outlets (If fitted) The socket outlet may be used for general applications. A 15A fuse mounted in the rear of the appliance protects the socket outlet. Switch Warming Drawer The warming drawer may be used to warm crockery prior to use.

  • Page 19: Get To Know Your Oven

    GET TO KNOW YOUR OVEN Get to know your new oven with this Method: ‘Simple Test Cake’ 1. Butter base and sides of two, 20cm straight-sided round or square cake pans. Then line the base with Although we strive for a perfect performing oven, it’s grease proof or baking paper.

  • Page 20: Handling Baking & Grilling Problems

    HANDLING BAKING & GRILLING PROBLEMS PROBLEM CAUSES REMEDIES Uneven cooking • Incorrect shelf position. - Select shelf that puts food in the centre of the oven. • Oven tray too large. - Experiment with other trays or dishes. • Trays not centralised. - Centre trays.

  • Page 21: Clocks

    OPERATING THE 3 BUTTON PROGRAMMABLE CLOCK (Where supplied) Setting the cooking duration IMPORTANT TIPS & INFORMATION • Select the desired oven function and temperature. • The oven indicator light will glow and the heating Setting the time source will come on. If you have purchased a model fitted with an electronic •...
  • Page 22 OPERATING THE 120 MINUTE MECHANICAL RINGER TIMER (Where supplied) To check or cancel settings Operating your 120 minute ringer timer • To check your settings, press the MODE button until the To set the timer, simply turn the knob clockwise to the indicator you want is flashing.

  • Page 23: Cleaning And Caring For The Cooker

    CLEANING AND CARING FOR THE COOKER Ceramic Hotplates WARNING WARNING Always make sure that the appliance is turned off before 1. Remove all spilt food and fat with the supplied razor you clean it. blade scraper, while the ceramic glass is still warm but All surfaces should be kept clean to reduce the risk of not hot.

  • Page 24: Cleaning And Caring For The Oven

    CLEANING AND CARING FOR THE OVEN Removing the Oven Shelves Cleaning Slide the oven shelves towards you until they reach the front stop. Tilt them up at the front and lift them clear. Wash WARNING WARNING the shelves in hot soapy water. For heavy baked-on-stains The cooker can be disengaged and engaged from the soaking of the shelves may be required.
  • Page 25 CLEANING AND CARING FOR THE COOKER Cleaning the oven door • To remove the top trim, press the ribbed release clips at Cool air circulates through the door to lower the surface each end and lift top trim away from the door. temperature on the outside of the oven door.
  • Page 26 CLEANING AND CARING FOR THE OVEN Re-assembling the oven door inner glass • When replacing the door inner glass, make sure the circle is positioned as shown in the image (where applicable). • Replace the top trim ensuring the clips snap back into position.

  • Page 27: Installation

    INSTALLATION Removing the oven door 4. Lift the door slightly and evenly while continuing to (To be done by qualified personnel only) slowly close the door. 1. With door fully open, rotate the two stirrups to its rest position. Stirrup 2.
  • Page 28 INSTALLATION Replacing the oven door (To be done by qualified personnel only) 4. Open door fully and rotate stirrups away from you, and back to their original position. Procedure to assemble the door 1. Hold door with both hands. Procedure to assemble the door Procedure to assemble the door (to be done by qualified personnel only).

  • Page 29: Solving Problems

    SOLVING PROBLEMS Faults If you need more information, please contact the Customer Care Centre on 1300 363 640 If you have a problem with your oven and/or grill, please: (Australia – Centre is open 8.00am – 5.00pm Monday • Check the points listed below before calling for service. to Friday Eastern Standard Time) You may be able to avoid a service call by fixing the or 0800 436 245 (New Zealand –...

  • Page 30: Warranty

    Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: BUILT-IN OVEN, COOKTOP AND FREESTANDING COOKERS This document sets out the terms and conditions of the product 7. You may not make a claim under this warranty unless the defect claimed warranties for Electrolux Appliances.
  • Page 31 NOTES NOTES...
  • Page 32 Top Service encompasses the after sales service provided by The Electrolux Group to consumers including delivery, home service and spare parts. Westinghouse. We are part of the Electrolux family. Share more of our thinking at www.electrolux.com Part No. 0342 001 617 Rev A and ECN 14A001A ©...
