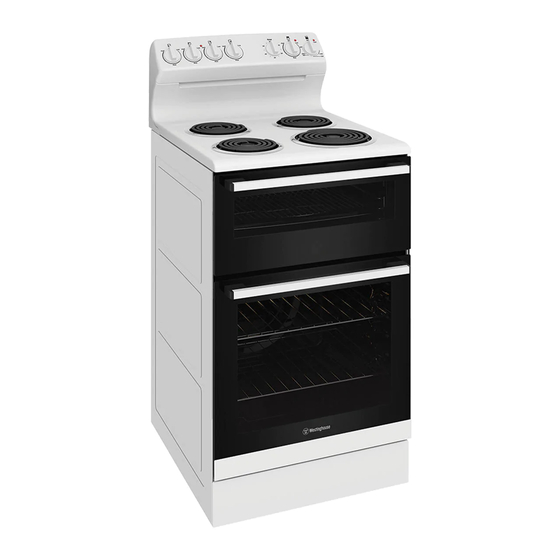

540mm upright cookers
Hide thumbs Also See for WLE524WC:

Advertisement

Quick Links

USER MANUAL
Enjoy peace of mind.
Register your appliance today.
Stay updated on better living services, safety notices and
shop for accessories.
1. Open the camera app on your smartphone and
point at the QR code to scan
Product Registration QR code is located on the
front of your appliance or inside the door rim*.
2. Tap the notification or link to open the registration form
3. Complete your details and enjoy peace of mind
*Exact location of QR code may vary depending on oven model
540MM UPRIGHT COOKERS
WLE524WC, WLE522WC, WLE530WCA,
WLE532WC, WLE543WC, WLG510WCN/L,
WLG510WCANG, WLG512WCN/L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLE524WC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Westinghouse WLE524WC

  • Page 1 2. Tap the notification or link to open the registration form 3. Complete your details and enjoy peace of mind *Exact location of QR code may vary depending on oven model 540MM UPRIGHT COOKERS WLE524WC, WLE522WC, WLE530WCA, WLE532WC, WLE543WC, WLG510WCN/L, WLG510WCANG, WLG512WCN/L...
  • Page 2: Table Of Contents

    Placing thick portions of food under grill can be a fire This appliance complies with the requirements of You may not be able to claim on the Westinghouse Oven guide ����������������������������������������������������������������������������������������������������� 27 Australia/ New Zealand standards AS/NZS 60335�2�6 and hazard�...
  • Page 3 GENERAL APPLIANCE DESCRIPTION INSTALLATION Location Do not store items on the cooking surface, to avoid a fire� This appliance must not be placed on a base� This appliance Unattended cooking on a hob with fat or oil can be dangerous must not be installed behind a decorative door�...
  • Page 4 INSTALLATION Removing the oven door 4� Lift the door slightly and evenly while continuing Replacing the oven light to slowly close the door� (to be done by qualified personnel only) 1� With door fully open, rotate the two stirrups WARNING WARNING to its rest position�...
  • Page 5: Installation

    3mm� MODEL TOTAL kW A1 kW A2 kW • The cooker MUST be properly earthed� WLE524WC 10�0 4�2 5�8 3. E nsure that the location notch drops into frame • Disconnection in the fixed wiring must occur in WLE522WC 9�4...
  • Page 6 INSTALLATION Gas requirements The burner crowns, burner caps and trivets can be fitted to Wiring connection for gas cooker Operation on universal LPG/propane the hob� This appliance must be installed by an authorised person, To allow for disconnection of the appliance after installation, 1�...
  • Page 7: Operating For The First Time

    OPERATING FOR THE FIRST TIME INSTALLATION Checking the gas supply Testing Burner Performance Choosing utensils for electric hotplates 1� Check the manometer zero point is correct� • Observe the flame appearance on each burner when set Refer to the diagram below� to max�...
  • Page 8: Installing Oven Accessories

    INSTALLING OVEN ACCESSORIES USING THE GAS COOKER Fitting the grill dish supports FITTING OVEN SHELVES Gas oven features and descriptions • Insert the rear hook into the rear hole� 1� Ensure shelf orientation is correct (refer to diagram below)� • Align the front peg to the front hole and push in firmly�...
  • Page 9 USING THE GAS COOKER Gas oven conventional baking Gas hotplate LIGHTING GAS HOTPLATE, GRILL AND OVEN WARNING WARNING The heat comes from the bottom oven burner� The Ensure burner caps, crowns and trivets are properly assembled� Electronic ignition with flame safeguard •...
  • Page 10: Using The Electric Cooker

    USING THE ELECTRIC COOKER Separate grill models - fan-forced oven WLE522WC/WLE532WC ELECTRIC OVEN FEATURES AND DESCRIPTIONS Grill in Oven Models WLE524WC Separate grill models - fan-forced oven WLE543WC Separate grill models – conventional oven WLE530WCA 7� Oven Indicator Light – comes on when oven control 1�...
  • Page 11: Button Programmable Clock

    10°C cooler� count down the preset cooking time, beep when the time the open grill door (except model WLE524WC)� button until the clock no longer reverses (at 0:00 you will has elapsed and turn the appliance off�...
  • Page 12: General Hints And Tips

    GENERAL HINTS AND TIPS CLEANING THE COOKER Ceramic hotplates Fan Forced Ovens and hotplates are made from steel and enamel� Do not use abrasives and harsh scourers as they may scratch CAUTION WARNING Remove all spilt food with a razor blade scraper while the •...
  • Page 13 GENERAL HINTS AND TIPS Cleaning the oven door Re-Assembling the oven door inner glass • To remove the top caps, press the ribbed release clips at Cool air circulates through the door to lower the surface • Replace the top caps ensuring the clips snap back each end and lift top cap away from the door�...
  • Page 14: Getting To Know Your Oven

    GETTING TO KNOW YOUR OVEN OVEN GUIDE Getting to know your new oven with this simple Method: The following is intended as a guide� Cooking variation is natural and to be expected� You should experiment with times, ‘Test Cake’ temperatures and recipes to obtain the best results to your own taste� Get to know your oven before making a service call� 1�...
  • Page 15: Trouble Shooting

    TROUBLE SHOOTING TROUBLE SHOOTING If you have a problem with your appliance check the following before you ring the call service� PROBLEM CAUSES WHAT TO DO PROBLEM WHAT TO DO Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven Operational problems Check the electricity is turned on Oven tray too large...
  • Page 16: Notes

    (c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 In addition, Electrolux is not liable under this warranty if:...
  • Page 17 0800 436 245 fax: 0800 225 088 email: customercare@electrolux.co.nz web: westinghouse.co.nz and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation� Used under license� All Rights Reserved� A21384502 Rev A © 2021 Electrolux Home Products Pty Ltd� ABN 51 004 762 341 W_MAN_540UM_A4_Jul21...
