SECTION 8.

[CHASSIS PARTS]

REF ORDER
NO. NO.
J1 6510004880 MR-DSE-01
W1** 8900011800 OPC-1199
MP1 8010019065 2601 CHASSIS-5
8010019065 2601 CHASSIS-5
8010019065 2601 CHASSIS-5
8010019135 2601 LONG CHASSIS-5
8010019135 2601 LONG CHASSIS-5
8010019135 2601 LONG CHASSIS-5
8010019135 2601 LONG CHASSIS-5
MP2 8110007821 2601 COVER-1
MP3 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT)
MP4 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT)
MP5 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT)
MP6 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT)
MP7 8810009991 SCREW BT B0 3X8 NI-ZK3 (BT)
MP8 8810009991 SCREW BT B0 3X8 NI-ZK3 (BT)
[FRONT UNIT]
REF ORDER
NO. NO.
R14 7210003330 RK09D1130A1N
J1 6450002210 3017-8821
J2* 6510022472 40FLT-SM2-TB (LF) (SN) (M)
J3* 6510022022 14FLT-SM2-TB (LF) (SN) (M)
DS11 5030003200 A01B011X
SP1 2510001221 C052SB500-14
W1** 8900010503 OPC-1046B-1
EP2 8930059170 SRCN-2622-SP-N-W
MP1 8210025590 3179 FRONT PANEL ASSY (Incl. SP1, MP2, 11)
MP2 8310073260 3179 WINDOW PLATE
MP3 8510019440 3179 SHIELD PLATE (Incl. MP4)
MP4 8930078670 3179 EARTH SPRING
MP5 8930078660 3179 KEYBOARD
MP6 8610014010 KNOB N-386 (Incl. MP7)
MP7 8610007420 KNOB SPRING NO.6601
MP8 8930059090 2622 LCD PLATE
MP9 8210019350 2622 REFLECTOR
MP10 8930059100 2622 LCD FILTER
MP11 8930059000 2601 SP NET
MP12 8930070850 2979 VOL RUBBER
MP13 8810008761 SCREW BT B0 2X8 NI-ZC3 (BT)
[MAIN-A UNIT]
REF ORDER
NO. NO.
J1* 6510026770 AXK540147YG
J2* 6510022472 40FLT-SM2-TB (LF) (SN) (M)
J4 6450000140 HSJ0807-01-010
J6* 6510022891 B13B-ZR-SM4-TF (LF) (SN)
J7* 6510014961 B2B-ZR-SM4-TF (LF) (SN)
S1* 2260003180 MINISMDC050F
W1* 7120000470 ERDS2T0
W2 8900011863 OPC-1195C
EP2* 6910011560 HF70BB4.5X5X1.6
6910011560 HF70BB4.5X5X1.6
6910011560 HF70BB4.5X5X1.6
EP3* 6910011560 HF70BB4.5X5X1.6
6910011560 HF70BB4.5X5X1.6
6910011560 HF70BB4.5X5X1.6
EP4* 6910010280 HF70BB9.5X10.4X4.9
EP5* 6910010280 HF70BB9.5X10.4X4.9
MP1 8510019340 3179 VCO CASE
MP2 8510019350 3179 VCO COVER
MP3 8510015110 2602 M-PLATE
MP4* 8930055841 2490 EARTH SPRING-1
*: Refer to "BOARD LAYOUTS" for the location.
**: Refer to "GENERAL WIRING" for the connection
Screw abbreviations

MECHANICAL PARTS

DESCRIPTION
[EUR-01]
[EXP-01]
[RUS-01]
[USA-01]
[EXP-02]
[CHN-01]
[RUS-02]
DESCRIPTION
DESCRIPTION
[USA-01]
[EXP-02]
[CHN-01]
[USA-01]
[EXP-02]
[CHN-01]
A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

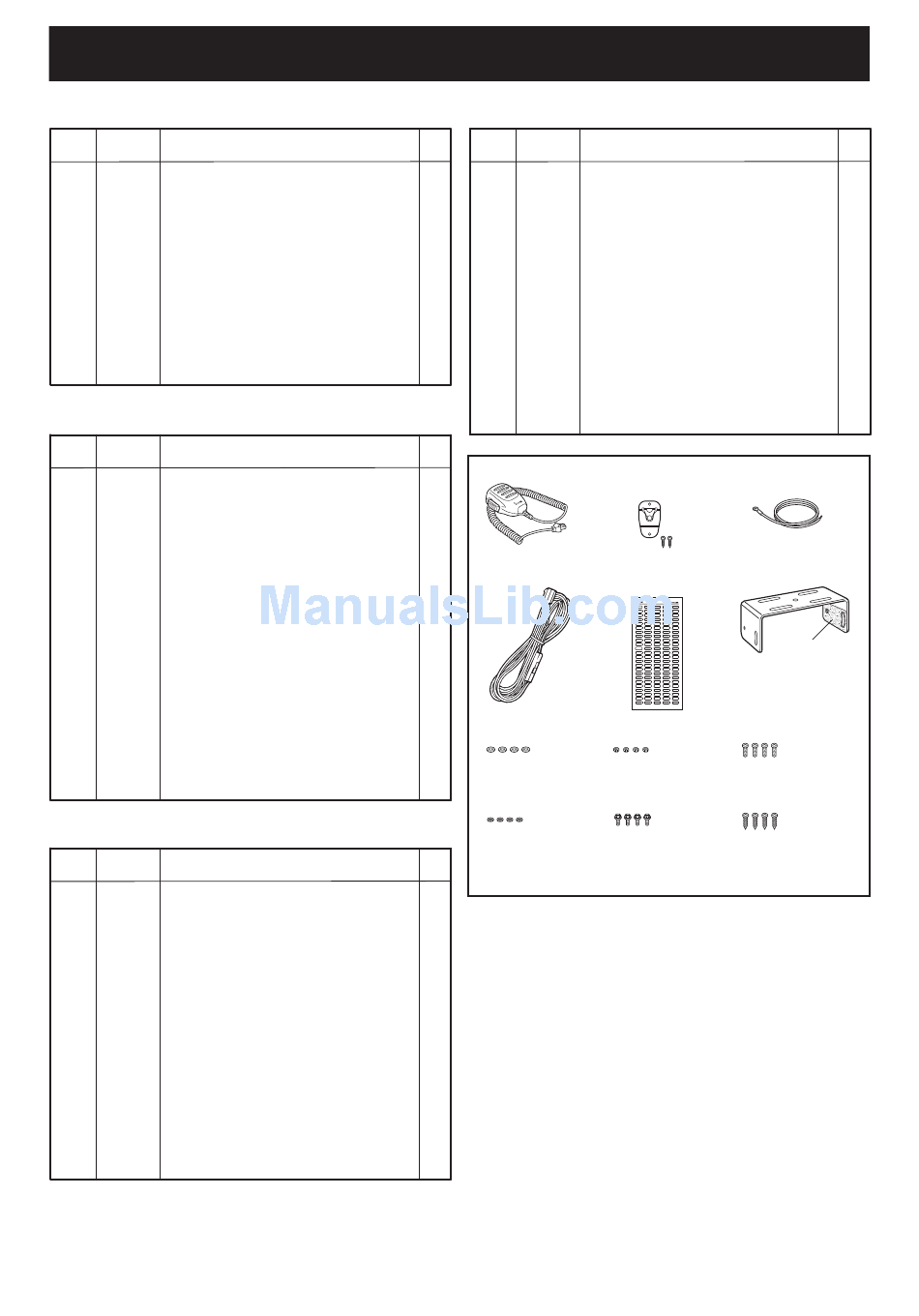

[ACCESSORIES]

REF ORDER
QTY.
NO. NO.
1 MC1 (Optional) HM-152
1 W1 (Optional) OPC-1194A
(Optional) OPC-1194A
1 (Optional) OPC-1194A
1 (Optional) OPC-1132A
1 (Optional) OPC-1132A
1 (Optional) OPC-1132A
1 (Optional) OPC-1132A
1 W2 8900000731 OPC-049A
1
1 MP1 8010019151 2601 MOBIL BRACKET-1 (Incl. MP2)
MP2 8930059160 2601 FELT
8
2 MP3 8820000530 FLANGE BOLT M4X8 NI
MP4 8810000471 SCREW PH (+-) M5X12 ZC3
2
1 MP5 8810005841 SCREW BT A0 5X20 ZC3
4 MP6 8850000150 FLAT WASHER M5 BS NI
2 MP7 8850000391 SPRING WASHER M5 ZC3
MP8 8830000121 NUT M5 ZC3
MP9 8950005110 2289 MIC HANGER
MP10 8310073440 3179 LCD LABEL
MP11 8810004700 SCREW BT A0 3X16 SUS
QTY.
MC1
1
1
1
1
1
1
W1
1
1
1
1
1
1
1
1
1
1
MP6
1
1
1
1
3
MP7
QTY.
* Used for labelling the programmable function
keys according to their assinged functions.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
8 - 1
DESCRIPTION
W2
MP9
MP11
MP1
MP10*
MP4 (M5×12)
MP8
MP3 MP5 (M5×20)
QTY.
1
[EUR-01] 1
[EXP-01] 1
[RUS-01] 1
[USA-01] 1
[EXP-02] 1
[CHN-01] 1
[RUS-02] 1
1
1
2
4
4
4
4
4
4
1
1
2
MP2
