(1) Computer
(4) RJ-45 Ethernet cable
(7) MT882

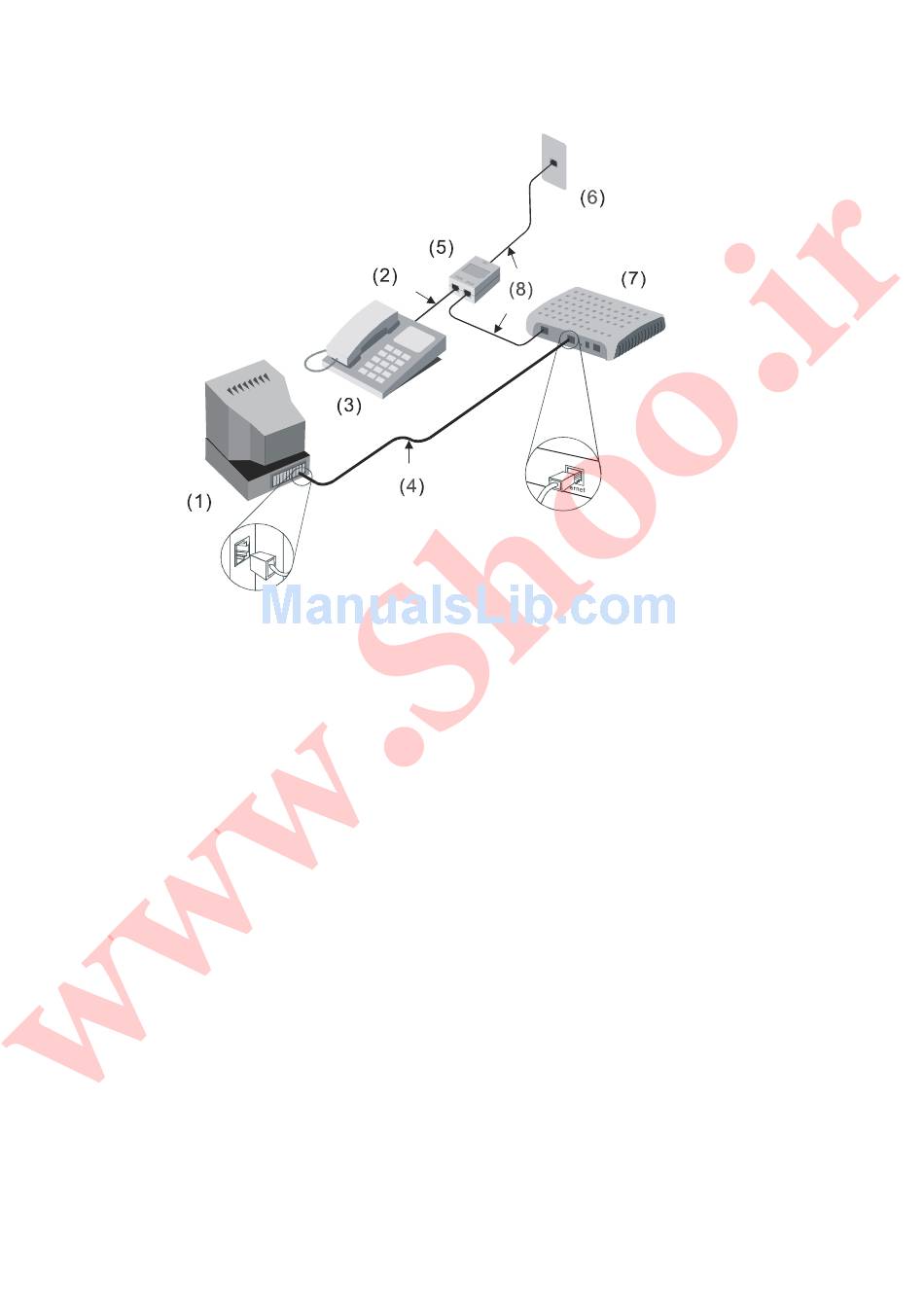

Figure 2-1 cable connection

2.3.4 Connecting Ethernet LAN to the MT882

MT882 may be connected to any 10/100Base-TX Ethernet port.
When connecting the MT882 to any Ethernet device that is capable
of operating at speeds higher than 10Mbps, be sure that the device
has auto-negotiation mode enabled for the connecting port.
Use a cross-over cable to connect the MT882 and the upstream
port of a switch or hub. Be sure that the cable connecting the LAN to
the MT882 does not exceed 100 meters.
(2) RJ-11 Tel line
(5) Splitter
(8) RJ-11 Tel Cable
