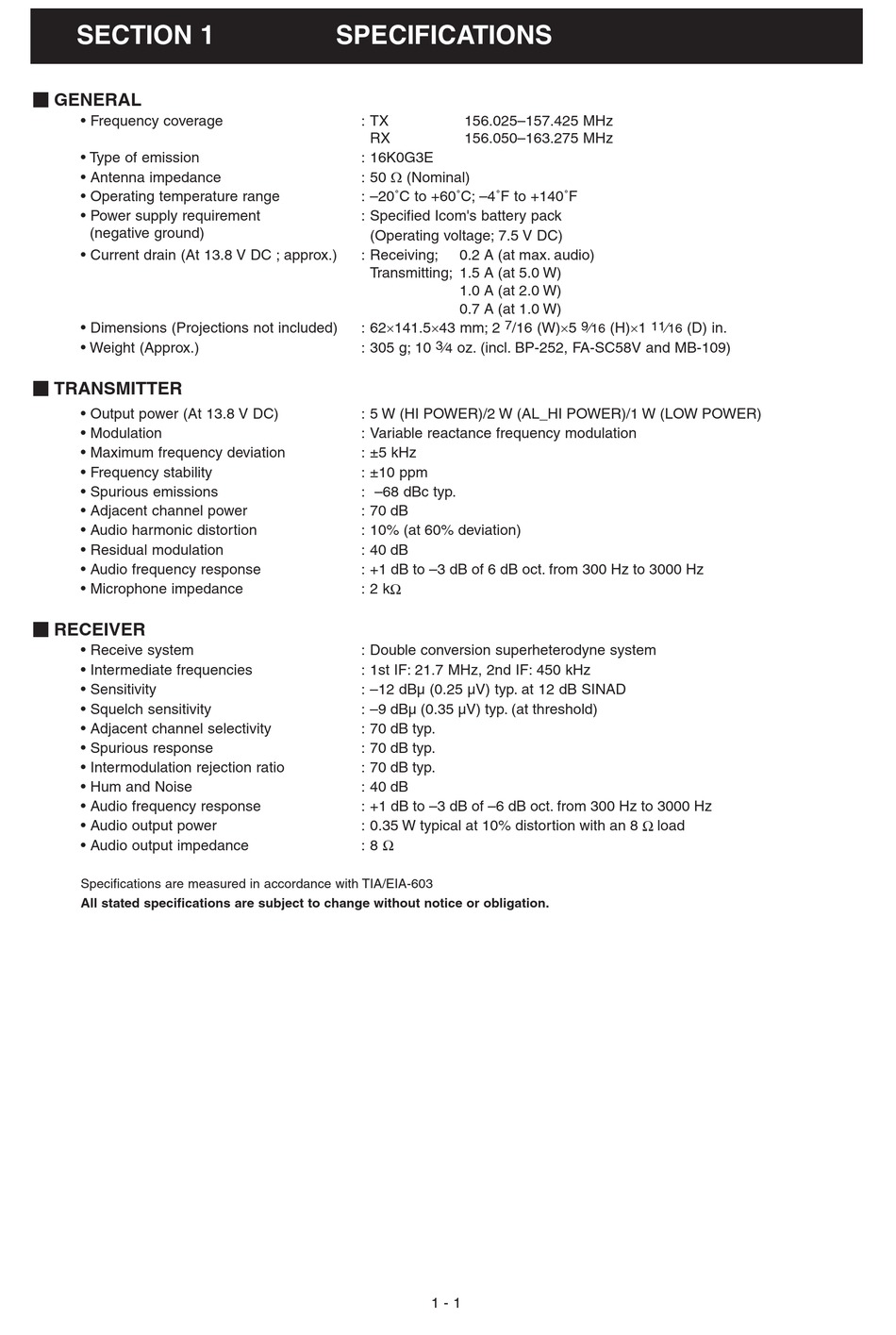

SECTION 1
M
GENERAL
• Frequency coverage
• Type of emission
• Antenna impedance
• Operating temperature range
• Power supply requirement
(negative ground)
• Current drain (At 13.8 V DC ; approx.)
• Dimensions (Projections not included)
• Weight (Approx.)
M
TRANSMITTER
• Output power (At 13.8 V DC)
• Modulation
• Maximum frequency deviation
• Frequency stability
• Spurious emissions
• Adjacent channel power
• Audio harmonic distortion
• Residual modulation
• Audio frequency response
• Microphone impedance
M
RECEIVER
• Receive system
• Intermediate frequencies
• Sensitivity
• Squelch sensitivity
• Adjacent channel selectivity
• Spurious response
• Intermodulation rejection ratio
• Hum and Noise
• Audio frequency response
• Audio output power
• Audio output impedance
Specifications are measured in accordance with TIA/EIA-603
All stated specifications are subject to change without notice or obligation.

SPECIFICATIONS

: TX 156.025–157.425 MHz
RX 156.050–163.275 MHz
: 16K0G3E
: 50 Ω (Nominal)
: –20˚C to +60˚C; –4˚F to +140˚F
: Specified Icom's battery pack
(Operating voltage; 7.5 V DC)
: Receiving; 0.2 A (at max. audio)
Transmitting; 1.5 A (at 5.0 W)
1.0 A (at 2.0 W)
0.7 A (at 1.0 W)
7
: 62×141.5×43 mm; 2
3
: 305 g; 10 ⁄ oz. (incl. BP-252, FA-SC58V and MB-109)
4
: 5 W (HI POWER)/2 W (AL_HI POWER)/1 W (LOW POWER)
: Variable reactance frequency modulation
: ±5 kHz
: ±10 ppm
: –68 dBc typ.
: 70 dB
: 10% (at 60% deviation)
: 40 dB
: +1 dB to –3 dB of 6 dB oct. from 300 Hz to 3000 Hz
: 2 kΩ
: Double conversion superheterodyne system
: 1st IF: 21.7 MHz, 2nd IF: 450 kHz
: –12 dBµ (0.25 µV) typ. at 12 dB SINAD
: –9 dBµ (0.35 µV) typ. (at threshold)
: 70 dB typ.
: 70 dB typ.
: 70 dB typ.
: 40 dB
: +1 dB to –3 dB of –6 dB oct. from 300 Hz to 3000 Hz
: 0.35 W typical at 10% distortion with an 8 Ω load
: 8 Ω
1 - 1
9 11
/16 (W)×5 ⁄ (H)×1 ⁄
16 16
(D) in.
