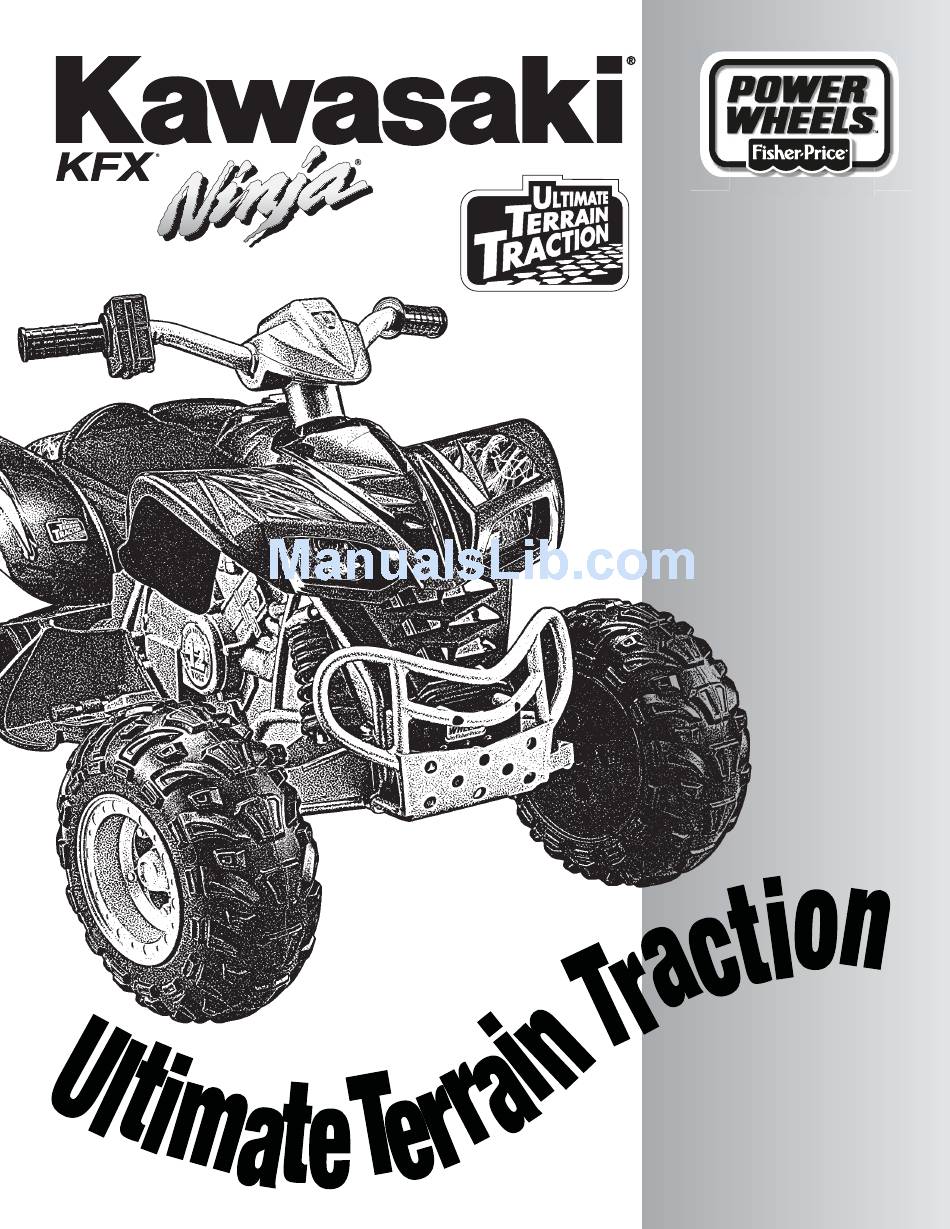

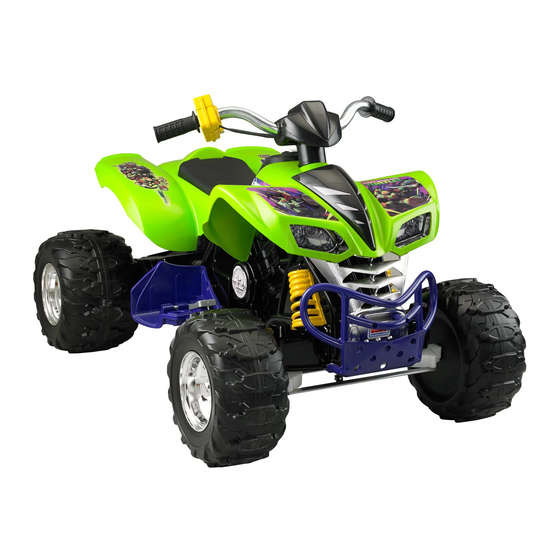

  • Page 1 • Please read this manual • Please read this manual and save it with your original and save it with your original sales receipt. sales receipt. • Tool needed for assembly: • Tool needed for assembly: Phillips Screwdriver Phillips Screwdriver (not included).
  • Page 2: Table Of Contents

    Important Information ....................2 Warnings and Cautions .
  • Page 3: Electrical Hazard

    ELECTRICAL HAZARD • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. - Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury.
  • Page 4: Parts

    • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •...
  • Page 5 PARTS 12 Volt Charger Rear Axle 12 Volt Battery 4 Bushings 2 Hand Grips 4 Hubcaps 4 Wheel Covers Part Not Shown: Label Sheet #8 x " Screw - 4 #8 x 2" Screw - 2 " Washer - 6 "...
  • Page 6: Parts Picture

    Note: Some parts shown are assembled on both sides of the vehicle. Vehicle Handlebar Seat 12 Volt Battery Rear Axle Rear Wheel Driver - 2 PARTS PICTURE Wheel - 4 Bushing - 4 Wheel Cover - 4 Hand Grip - 2 "...
  • Page 7: Battery Charging

    ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.
  • Page 8: Assembly

    Battery Charger Connector • Plug the charger connector into the battery • Plug the charger into a standard wall outlet Notes: - Use the charger only in a wall outlet. Do not plug the AC adaptor into a ceiling outlet. - If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”.
  • Page 9: Bottom View

    Bushing Rear Wheel Driver (Barrel Side Down) (Pegged Side Down) Slots Up Wheel Cover (Indented Side Down) • Slide a " washer onto the rear axle. • Slide a wheel cover, indented side down, onto the rear axle. • Locate a wheel marked L. Slide the wheel, indented side down, onto the rear axle.
  • Page 10: Back View

    BACK VIEW • Turn the vehicle upright. • Fit the handlebar steering column and both connectors down through the large opening in the front end of the vehicle. Steering Column BOTTOM VIEW • Lift the front end of the vehicle up slightly. Check to be sure the steering column fits through the hole in the steering linkage.
  • Page 11: Front View

    Washer Front Axle Bushing (Ring End First) • Slide a " washer onto the front axle. • Slide a bushing, ring end first, onto the front axle. • Locate a wheel marked L. Slide the wheel, flat side first, onto the front axle.
  • Page 12 Brush Guard • Fit the brush guard onto the front clip. • Insert two #8 x " screws into the lower holes in the brush guard and tighten. • Insert two #8 x 2" screws into the upper holes in the brush guard and tighten.
  • Page 13: Decoration

    Seat • Fit the tab at the front of the seat into the slot near the drive buttons • “Snap” the tab at the back of the seat into the slot near the rear of the vehicle Drive Buttons • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.
  • Page 14 FOR MODEL J8472 FOR MODEL K0450 RIGHT SIDE VIEW RIGHT SIDE VIEW LEFT SIDE VIEW LEFT SIDE VIEW J8472a-0920...
  • Page 15: Battery Installation

    IMPORTANT! Use only a Power Wheels ® 12 volt lead-acid rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels 12 volt charger before operating ®...
  • Page 16: Battery Care And Disposal

    BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.
  • Page 17: Safe Driving Rules

    RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required. • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, steep inclines, cars, roads and alleys.
  • Page 18: Low Speed Drive

    As assembled, your vehicle is ready to roll in low speed (2 has mastered the basic skills of driving and understands the rules for safe driving, it’s time to connect the high speed connectors to allow the vehicle to operate in high speed. See the instructions on this page to connect the high speed connectors and operate the vehicle at high speed. Beginner Use - Low Speed Drive Drive •...
  • Page 19: Charger Indicator

    CHARGE INDICATOR Button 12 VOLT BATTERY CHARGE INDICATOR • Press the 12 volt battery charge indicator button to check the power level of your battery: All four lights means the 12 volt battery is 100% (fully) charged. Three lights means the 12 volt battery is 75% (mostly) charged. Two lights means the 12 volt battery is 50% charged.
  • Page 20: Problems And Solutions Guide

    PROBLEMS AND SOLUTIONS IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels Consumer Relations, toll-free at 1-800-348-0751 between 9 AM - 7 PM (EST) Monday through Friday ®...
  • Page 21 PROBLEM POSSIBLE CAUSE Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse Vehicle runs sluggishly Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful...
  • Page 22 PROBLEM POSSIBLE CAUSE Vehicle runs in low speed, but High speed hook-up not disconnected. does not run in high speed. Please note: The vehicle is designed to operate in low speed only in reverse. When the foot pedal is pressed Operation of vehicle in low speed one rear wheel spins Sometimes the vehicle doesn’t...
  • Page 23: Limited Warranty

    LIMITED WARRANTY Bumper-to-Bumper* Limited Warranty ® One year limited warranty from the date of purchase on the Power Wheels vehicle. Six month limited warranty on the 12 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®...
  • Page 24 For the location nearest you, visit us on-line at www.powerwheels.com. Kawasaki and Ninja are trademarks licensed by Kawasaki Motors Corp., U.S.A., which does not manufacture or distribute this product. Consumer inquiries should be directed to Fisher-Price, Inc./Power Wheels, 636 Girard Avenue, East Aurora, NY 14052.
