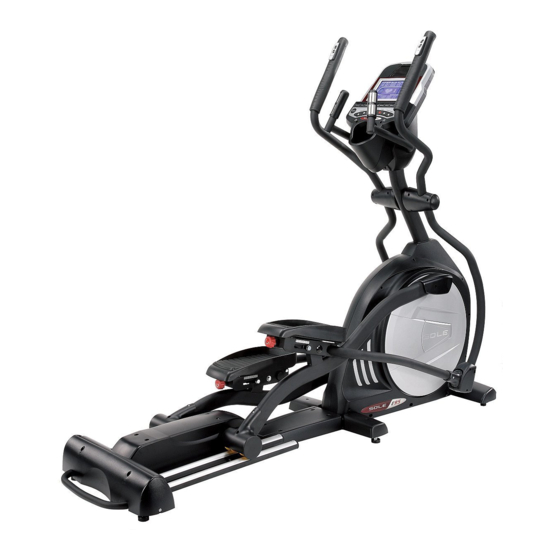

E98 ELLIPTICAL OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E98 and is the answer not in the manual?

Questions and answers

Related Manuals for Sole Fitness E98

Summary of Contents for Sole Fitness E98

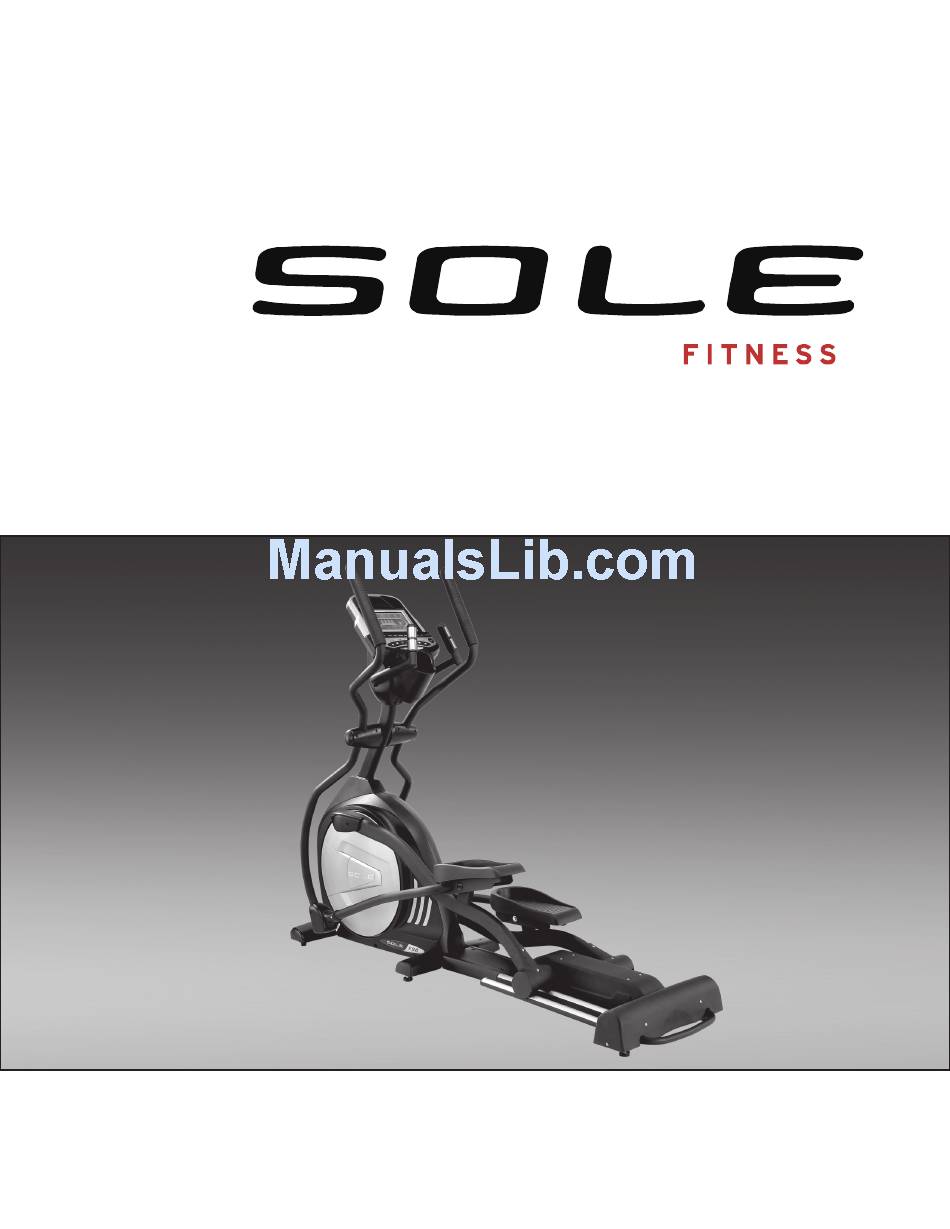

  • Page 1 E98 ELLIPTICAL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Transport Instructions E98 Assembly Instructions Elliptical Features Operation of Your New Elliptical Programmable Features Using Heart Rate Monitor General Maintenance Manufacturer’s Limited Warranty ATTENTION THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE...

  • Page 4: Product Registration

    Serial Number REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to SOLE. You can also go to www.soleellipticals.com under the support tab to register online. E98_20110705 E98 ELLIPTICAL...

  • Page 5: Important Safety Instructions

    „ Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your elliptical. Quality athletic shoes are recommended to avoid leg fatigue. SAVE THESE INSTRUCTIONS - THINK SAFETY! E98 ELLIPTICAL...

  • Page 6: Important Electrical Information

    (shown below) can be installed by a qualified electrician. The green colored rigid ear-lug, or the like, extending from the adapter, must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. E98 ELLIPTICAL...

  • Page 7: Important Operation Instructions

    If you feel the buttons are not functioning properly with normal pressure contact your SOLE dealer. POWER CONNECTOR - FRONT, LEFT SIDE OF UNIT TRANSPORT INSTRUCTIONS The elliptical is equippped with two transport wheels which are engaged when the rear of the elliptical is lifted. E98 ELLIPTICAL...
  • Page 8 E98 ASSEMBLY PACK CHECKLIST HARDWARE STEP 1 #154. 5/16” x 20 x 1.5T #164. 3/8” x 23 x 2T #158. 3/8” x 19 x 1.5T Flat Washer (4 pcs) Curved Washer (2 pcs) Flat Washer (2 pcs) #167. 3/8” x 2T #128.
  • Page 9 Hex Head Bolt (2 pcs) HARDWARE STEP 4 #132. 3.5 x 12mm #129. M5 x 15mm #131. M6 x 10mm Sheet Metal Screw (10 pcs) Phillips Head Screw (29 pcs) Phillips Head Screw (4 pcs) #20. Bracket (2 pcs) E98 ELLIPTICAL...

  • Page 10: E98 Assembly Instructions

    #171. Phillips Head Screwdriver #170. Short Phillips Head Screwdriver #172. 12/14mm Wrench #169. 13/14mm Wrench E98 ASSEMBLY INSTRUCTIONS PRE-ASSEMBLY Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along the dotted Line. Lift Box over the unit and unpack.
  • Page 11 Metal Screw (8 pcs) Install the Handle Bar Covers (91 to 92) and (93 to 94) over the Console Mast #116. 3/8” x 3/4” axle connections and secure with the eight Sheet Metal Screws (132). Hex Head Bolt (2 pcs) E98 ELLIPTICAL...
  • Page 12 ASSEMBLY STEP 1 ASSEMBLY STEP 2 E98 ELLIPTICAL...
  • Page 13 This step to be performed after the elliptical power is plugged in. Run the incline to position 8 and install the incline Rail front cover (99) up against the middle stabilizer tube with four Phillips Head Screws (129). E98 ELLIPTICAL...
  • Page 14 ASSEMBLY STEP 3 ASSEMBLY STEP 4 E98 ELLIPTICAL...

  • Page 15: Elliptical Features

    RAMP INCLINE ADJUSTMENT The E98 has an incline feature that will further increase the variety of your workouts. When the incline is at its lowest position you get a normal elliptical workout. As the incline increases you will feel your knees rise higher with each step;...

  • Page 16: Operation Of Your New Elliptical

    OPERATION OF YOUR ELLIPTICAL GETTING FAMILIAR WITH THE CONTROL PANEL COOLING FAN E98 CONSOLE DATA DISPLAY DOT MATRIX (Program Profiles) PROGRAM BUTTONS MESSAGE WINDOW (Manual, Hill, Fat Burn, (Time, Program Name, Distance, Cardio, Strength, Interval, RPM, Calories, Laps, Level, Custom, Fit-Test, 2HR) Incline, &...

  • Page 17: Console Operation

    Reset. During data entry for a program the Stop key performs a Previous Screen function. This allows you to go back one step in the programming each time you press the Stop key. E98 ELLIPTICAL...
  • Page 18 Press each program button to scroll through the program selections. The profile for each program will be displayed in the dot matrix window. The E98 will show the incline profile also when the Display key is pressed. Press the Enter key to select a program and begin customizing the settings.

  • Page 19: Programmable Features

    Display key. 8. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. E98 ELLIPTICAL...

  • Page 20: Fat Burn

    Hill The Hill program simulates going up and down a hill. The resistance in the pedals will steadily increase and then decrease during the program. E98 WORK E98 INCLINE Fat Burn The Fat Burn program is designed, as the name implies, to maximize the burning of fat. There are many schools of thought on the best way to burn fat but most experts agree that a lower exertion level that stays at a steady workload is the best.

  • Page 21: Custom Program

    10. During the Custom program you will be able to scroll through the data in the message window by pressing the Display key. 11. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. E98 ELLIPTICAL...
  • Page 22 168 kgm/min Level (104W) Level (87W) Level (64W) Level (42W) 3rd Stage 624 kgm/min 522 kgm/min 384 kgm/min 252 kgm/min Level (122W) Level (104W) Level (74W) Level (64W) 4th Stage 732 kgm/min 624 kgm/min 444 kgm/min 384 kgm/min E98 ELLIPTICAL...
  • Page 23 With all SOLE Heart Rate Control elliptical machines you may use the heart rate monitor feature without using the Heart Rate Control program. This function can be used during manual mode or during any of the nine different programs. The Heart Rate Control program automatically controls resistance at the pedals. E98 ELLIPTICAL...
  • Page 24 If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. E98 ELLIPTICAL...

  • Page 25: Using Heart Rate Monitor

    The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference. Another Individual wearing a transmitter within 3’ of your machine’s console. If you continue to experience problems contact your dealer. E98 ELLIPTICAL...
  • Page 26 9. When the program ends you may press Start to begin the same program again or Stop to exit the program or you can save the program you just completed as a Custom Program by pressing the Custom key and following the instructions in the message window. E98 ELLIPTICAL...

  • Page 27: General Maintenance

    Incline Calibration: If there is a problem with the incline, try running the calibration. Press the Incline Up key and the Start key at the same time. Hold them down for 5 seconds and the Incline calibration will start and run automatically. If the problem persists contact Sole service department. E98 ELLIPTICAL...

  • Page 28: Manufacturer's Limited Warranty

    Submit all service requests including serial number, contact information and a brief description of the problem online at www.soletreadmills. com/technical.php?p=service. If you have any questions about your new product or questions about the warranty contact SOLE Fitness at 1-866-780-SOLE (7653). If you have a technical problem with your new elliptical contact SOLE technical service at 866-MYSOLE1 (697-6531).
  • Page 29 E98 ELLIPTICAL...
