Memor™ X3
Mobile Computer
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Memor X3 and is the answer not in the manual?

Questions and answers

Related Manuals for Datalogic Memor X3

Summary of Contents for Datalogic Memor X3

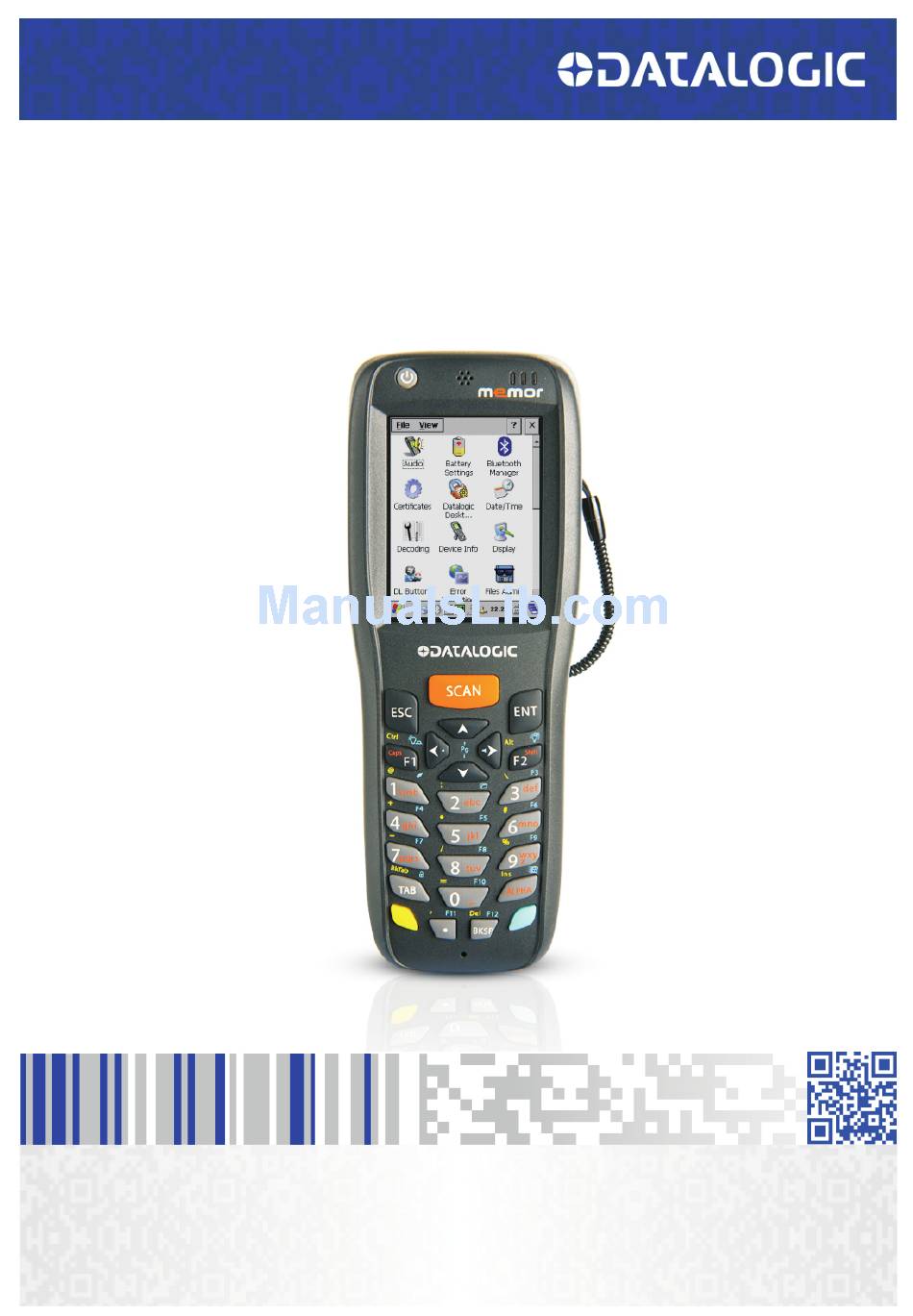

  • Page 1 Memor™ X3 Mobile Computer User’s Manual...
  • Page 2 Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non- exclusive, revocable license to reproduce and transmit this documentation for the purchaser' s own internal business purposes.

  • Page 3: Table Of Contents

    4.2.2 Imager Data Capture................... 33 4.2.3 Linear Imager Data Capture ................ 35 Description of the Keyboards ..............37 4.3.1 Resetting the Memor X3 ................40 Status Indicators ..................42 4.4.1 LED Status ....................42 4.4.2 Taskbar ....................... 43 Control Panel ....................44 4.5.1...
  • Page 4 Bluetooth® Manager Device Setup ............. 70 4.6.3 FTP Server Setup ..................78 Backup Directory File Management ............79 Datalogic Firmware Utility ................80 4.8.1 Retrieving a Firmware Image Update ............80 4.8.2 Installing DFU on the Host PC ..............81 4.8.3...

  • Page 5: References

    “mobile computer” and "Memor X3" refer to Memor X3 mobile computer. “You” refers to the System Administrator or Technical Support person using this manual to install, configure, operate, maintain or troubleshoot a Memor X3 mobile computer. “Single Dock” refers to the Memor X3 Single Slot Dock.

  • Page 6: General View

    GENERAL VIEW A) QVGA 64K Color Display H) Microphone B) ON/OFF Power Key Laser Safety Label C) Speaker Rear Speaker D) LEDs K) Product Label (under battery) E) Scan Key Battery Cover Keyboard M) Side scan key (on both sides of the mobile computer) G) Guitar Pick Stylus...
  • Page 7 N) Data Capture Window P) Communication/Charger Connector (through cradle) O) DC Charger Connector Q) Micro USB Communication Connector (through cable) Remove protective film cover before use...
  • Page 8 viii...

  • Page 9: Introduction

    2D Imager, its offer of scan engines now includes a CCD Linear Imager, so as to address the needs of a wider range of customer applications. The Memor X3 is built on the microprocessor XScale™ PXA310, working with a clock speed of 806 MHz .
  • Page 10 MEMOR™ X3 The Wavelink® maintenance and management tools make the Datalogic Memor X3 a simple device to both deploy and maintain. Datalogic Firmware, Desktop and Configuration Utilities, as well as a new Locked Web Browser complete the package with unprecedented ability to customize device configuration to the different use...

  • Page 11: Available Models

    The currently available models are: • 944250001 Memor X3, Batch, 128 MB RAM/512 MB Flash, 624 MHz, 25- key Numeric, Linear Imager with Green Spot, Windows CE Core 6.0 • 944250002 Memor X3, 802.11 a/b/g/n CCX V4, Bluetooth®, 128 MB RAM/512 MB Flash, 624 MHz, 25-key Numeric, Linear Imager with Green Spot, Windows CE Core 6.0...

  • Page 12: Package Contents

    MEMOR™ X3 PACKAGE CONTENTS The Memor X3 package contains: − 1 Memor X3 mobile computer − 1 AC/DC power supply − 1 plug kit − 1 standard Micro USB cable − 1 hand strap with stylus holder (Windows CE Pro models only) −...

  • Page 13: Inserting A Microsd Card

    INTRODUCTION INSERTING A MICROSD CARD The Memor X3 supports microSD memory cards. To access the microSD card slot and insert the card, proceed as follows: Turn off the Memor X3. Press the latch release button and pull the latch down; then remove the cover...
  • Page 14 MEMOR™ X3 Shift the cardholder upwards and then pull it up: Insert the microSD card with the written part upward: Lock the card into place by pushing the cardholder down and then shifting it downwards; push the locking plate down:...
  • Page 15 INTRODUCTION Reinsert the battery cover. First insert first the upper side and then press the latch release button and pull the latch down to insert the bottom. Push the knurled section of the latch upward to close the cover.

  • Page 16: Removing The Microsd Card

    Memor X3 or the microSD card itself. Proper ESD precautions include, but are not limited to, working on CAUTION an ESD mat and ensuring that the operator is properly grounded. Do not force the card. If you feel resistance, remove the card, check the orientation, and reinsert it.

  • Page 17: Accessories

    94A051024 USB A (4 pin F) to Mini A (5 pin M) 94A051968 Cable, Micro USB, Client 94A051969 Cable, Micro USB, Host Use only Datalogic approved power supply and cables. Use of an alternative power supply will invalidate any approval given to this device and may be dangerous.

  • Page 18: Batteries And Maintenance

    Once the charging process has been completed this LED glows green constantly (see par. 4.4). The stand alone battery pack may be recharged outside a Memor X3 using the spare battery charging slot on the back of the single slot dock or the multi battery charger.
  • Page 19 BATTERIES AND MAINTENANCE Do not use the Memor X3 until batteries are charged for minimum 4 hours. CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. CAUTION Il y a risque d’explosion si la batterie est remplacée par une batterie de type incorrect.

  • Page 20: Replacing The Battery Pack

    MEMOR™ X3 REPLACING THE BATTERY PACK To correctly replace the battery pack, proceed as follows. Turn off the Memor X3 . Press the latch release button and pull the latch down; then remove the battery cover: Install the new battery pack, first insert the upper side (contacts), then the...
  • Page 21 Using the battery pack in this manner may also result in a loss of performance and a shortened life expectancy. Use only a Datalogic approved power supply. The use of an alternative power supply will void the product warranty, may cause product damage and may cause heat, an explosion, or fire.
  • Page 22 MEMOR™ X3 Do not short-circuit the battery pack contacts connecting the positive terminal and negative terminal. This might happen, for example, when you carry a spare battery pack in your pocket or purse; WARNING accidental short–circuiting can occur when a metallic object such as a coin, clip, or pen causes direct connection of the contacts of the battery pack (these look like metal strips on the battery pack).
  • Page 23 In this case, either substitute a sufficiently charged battery, insert NOTE the Memor X3 into a powered cradle, or plug it into a wall charger. To maximize battery life, turn off radios when they are not needed.

  • Page 24: Cleaning The Mobile Computer

    MEMOR™ X3 CLEANING THE MOBILE COMPUTER Periodically clean the Memor X3 with a slightly dampened cloth. Do not use alcohol, corrosive products or solvents.

  • Page 25: Connections

    CONNECTIONS CONNECTIONS USB CONNECTION You can use any standard micro USB cable to directly connect the Memor X3 to a host computer to transfer data through the USB interface. Key: Host computer Memor X3 Standard Micro USB cable Connection through the cable is compliant to 2.0 USB standard.
  • Page 26 MEMOR™ X3 The Single Dock can be connected to the host computer by any standard mini USB cable. Once the host computer has been turned on, insert the Memor X3 mobile computer into the cradle. Key: Host computer Single Slot Dock...

  • Page 27: Connection To Usb Peripherals

    CONNECTIONS CONNECTION TO USB PERIPHERALS You can connect the Memor X3 to a standard USB keyboard or to a standard USB flash memory device. Connect the terminal to a standard A (4 pin female) to micro A (5 pin male) USB cable. For all these devices maximum current draw must be less than 100mA.
  • Page 28 MEMOR™ X3 Memor X3 works with most of the mentioned USB peripherals. Datalogic cannot guarantee the interoperability of Memor X3 with all devices on the market. NOTE Connection is compliant to USB 1.1 standard. NOTE The actual data transfer speed can be appreciably lower than the maximum theoretical speed.

  • Page 29: Rs232 Connection

    CONNECTIONS RS232 CONNECTION You can use a cable to directly connect the Memor X3 to a host computer to transfer data through the RS232 interface: Key: Host computer Memor X3 94A051022 WIN-NET (HRS ST40X-18S-CV) The Single Slot Dock can be connected to the Host by means of a standard null modem cable such as Datalogic 94A051020 CAB-427 for 9-pin connections.

  • Page 30: Wlan Connection

    MEMOR™ X3 WLAN CONNECTION Memor X3 802.11 abgn radio models can communicate with the host using the on- board Wi-Fi radio and an Access Point connected to a network. Key: A) Memor X3 B) Access point C) Host – Application Server...
  • Page 31 (microwave ovens, radio transmitters, etc.). NOTE In case of heavy usage the Memor X3 may get warm; this is normal and does not mean a malfunction. NOTE...

  • Page 32: Wpan Connections

    MEMOR™ X3 WPAN CONNECTIONS Memor X3 Bluetooth® models can communicate with a Bluetooth® device, such as a printer, within a range of 10 m, using the on-board Bluetooth® module. Key: A) Memor X3 B) Bluetooth® printer In order to extend battery life, the Bluetooth® module is off by default.

  • Page 33: Connection Cables

    CONNECTIONS CONNECTION CABLES  RS232 Direct Connection: 94A051022 WIN-NET SERIAL CAB (HRS ST40x-18S-CV) Datalogic Memor™ HOST/PC side side 9-pin (female)  Power Supply Polarity: VEXT...

  • Page 34: Wireless And Radio Frequencies Warnings

    Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications or attachments could damage the product and may violate laws and regulations. The antennas inside the Memor X3 are not user-accessible and WARNING cannot be replaced by end users. Send any faulty equipment to Datalogic for repair.
  • Page 35 CONNECTIONS Turn this device OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may use equipment that could be sensitive to external RF energy. WARNING RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles.

  • Page 36: Use And Functioning

    STARTUP The Memor X3 turns on when the battery pack or the external supply is inserted. After the battery pack is installed, use the [ON/OFF] key to turn the mobile computer on and off.
  • Page 37 USE AND FUNCTIONING (resuming operation) by the [ON/OFF] key, by the SCAN key, or by inserting/extracting the device onto/from the cradle. The mobile computer can also be awakened or suspended programmatically. NOTE...

  • Page 38: Using The Stylus

    To recalibrate the touch screen use the Stylus applet (see par. 4.5.10). Use only original Datalogic styluses supplied with the product itself. In harsh applications, use of screen protectors should be taken into consideration, in order to extend the touch screen operating life.

  • Page 39: Data Capture

    USE AND FUNCTIONING DATA CAPTURE To capture data tap Start > Settings > Control Panel > double tap Decoding: To configure and enable data capture parameters refer to par. 4.5.1.

  • Page 40: Laser Data Capture

    4.2.1 Laser Data Capture To scan barcodes, point the Memor X3 laser model onto the code from a distance within the reading range while pressing the SCAN key. The lighted band emitted by the laser must completely cross the barcode as shown in the figure below.

  • Page 41: Imager Data Capture

    To read a 1D or 2D code, simply point the Memor X3 Imager model onto the code and press the SCAN Key or the pistol trigger.
  • Page 42 The field of view changes its size as you move the reader closer or farther away from the code. The field of view indicated by the aiming system pattern will be smaller when the Memor X3 Imager is closer to the code and larger when it is farther from the code.

  • Page 43: Linear Imager Data Capture

    4.2.3 Linear Imager Data Capture Point the Memor X3 linear imager model onto the code, at a distance within the reading range, and press the SCAN key. Make sure that the lighted band emitted by the linear imager crosses the barcode to read end-to-end.
  • Page 44 MEMOR™ X3 When beams reflect directly back into the scanner from the bar code, they can “blind” the scanner and make decoding difficult. To avoid this, don’t keep the terminal perpendicular to the barcode: moving it of a small angle of ±2° is usually enough to enable proper reading. But don’t scan at too oblique an angle either: keep the scanner within an angle of ±30°...

  • Page 45: Description Of The Keyboards

    USE AND FUNCTIONING DESCRIPTION OF THE KEYBOARDS The Memor X3 comes with a 25-key numeric keyboard, complemented by 2 additional side keys and by an ON/OFF key.
  • Page 46 The ON/OFF Power button powers the Memor X3 ON or OFF. It is placed on the upper left side of the terminal. The ALPHA key is used to alternate numeric and alphanumeric typing.
  • Page 47 USE AND FUNCTIONING After a blue modifier key press, it enables a cursor controlled by the navigation keys. It also enables to use side buttons as the left and right mouse buttons.

  • Page 48: Resetting The Memor X3

    A cold boot forces all applications to close and clears working RAM and files not resident on the persistent flash memory. Registry is restored from persistent memory if available or returned to factory default. A clean boot restores the Memor X3 to factory configuration: registry and file system return to factory default. Warm Boot...

  • Page 49: Cold Boot

    USE AND FUNCTIONING Cold Boot A cold boot is a complete reset of the Memor X3 in which all applications are forcibly closed and RAM is completely cleared. Registry is restored from persistent memory if a saved copy is available (see 4.5.7) and RAM file system completely erased. You will lose any applications and data (registry too) which are not stored in persistent flash memory.

  • Page 50: Status Indicators

    MEMOR™ X3 STATUS INDICATORS 4.4.1 LED Status The Memor X3 provides three different LEDs signaling the mobile computer status. STATUS Good Read and Scanning LED is ON, showing a good General Purpose Green decode. (left side) Scanning LED is ON from the time the user hits the scan button (Trigger) until the bar code is decoded.

  • Page 51: Taskbar

    USE AND FUNCTIONING 4.4.2 Taskbar Windows CE Taskbar The Taskbar provides information about the time, the battery level, the keyboard function, and the decoding status. ICONS DESCRIPTION Time and Battery Icons It displays the time. It indicates that the battery is charging. It shows the battery level.

  • Page 52: Control Panel

    MEMOR™ X3 CONTROL PANEL From the Start menu, tap Settings then Control Panel. Below is an expanded view of the Control Panel showing all of the applets. Windows CE Control Panel...

  • Page 53: Data Capture Configuration

    USE AND FUNCTIONING 4.5.1 Data Capture Configuration From the taskbar, tap the "Decoding" icon to open a drop–down menu. By selecting the Info item from this drop-down menu you can access information about the Scanner and the Software; the Configure item opens the configuration applet (Data Capture Configuration Window), while Capture accesses the data capture applet (Data Capture Window), which enables code reading.

  • Page 54: Configure

    MEMOR™ X3 4.5.2 Configure The Configuration applet contains the barcode scanning configuration parameters in a directory tree structure. The available barcode parameters are divided into two groups: Reader Parameters and Scan Parameters. The Reader Parameters depend on the type of scanner module installed on the mobile computer and allow barcode configuration (i.e.
  • Page 55 USE AND FUNCTIONING Selecting Data Capture Setup Parameters Alternatively using the stylus, you can tap once directly on the value on the right column; continue tapping until the desired value is reached. To activate a new configuration select the File ->Save Menu. This will save the configuration to non-volatile memory preventing loss at the next system reset.

  • Page 56: Capture

    MEMOR™ X3 4.5.3 Capture The Data Capture applet (Capture) enables code reading. Data Capture Window Data Capture can also be enabled through the Configuration applet by selecting File ->Scanner from the main menu, or by enabling the parameter Scan Always On in the Scan Parameters branch.

  • Page 57: Dl Buttons

    USE AND FUNCTIONING 4.5.4 DL Buttons You can use DL Buttons applet to associate specific keys, such as <F1>-<F10>, with specific applications. From the control panel main window, double tap the DL Buttons icon. On the DL Buttons tab, customize the program hardware buttons to launch your most used applications.
  • Page 58 MEMOR™ X3 COMMAND DESCRIPTION This pull-down list displays the available function keys Select a Button to define. Select the desired one from the list. Select/tap to specify a new Button, which is not on the “Select a Button” list Tap to delete the selected Button. You can only delete Delete the Buttons you have added.
  • Page 59 USE AND FUNCTIONING Adding a new Button When you select “New” on the “DL Buttons” tab, this opens the “Add Key” dialog box. To define a new Button, complete the following steps: Enter the key combination in the “Add Key” textbox. COMMAND DESCRIPTION Enter Key Enter the desired key combination in this text box to define a Button.
  • Page 60 MEMOR™ X3 It is possible for the keyboard wedge to activate assigned Buttons using alphanumeric characters. Barcodes containing characters associated with assigned Buttons will trigger the action or application assigned to that Button. CAUTION...
  • Page 61 USE AND FUNCTIONING Triggers Triggers are special customizable buttons that can be assigned to the ‘Bar Code’ function to control scanner activation. In addition they can be set as wakeup buttons by checking the ‘Wakeup box’: DEFAULT CONFIGURATION TRIGGERS Assigned Function Wake-up Scan Bar Code...

  • Page 62: Application Switcher

    MEMOR™ X3 Application Switcher The application switcher provides the same functionality as the standard Windows® Alt+Tab function. This allows the user to switch between the various open applications. The application switcher is a predefined function that could be assigned to any button in the DL Buttons tab (see par.

  • Page 63: Registry

    USE AND FUNCTIONING 4.5.5 Registry The Registry stores information that are necessary to configure the system for applications and hardware devices. The Registry also contains information that the operating system continually references to during operation. From the Control Panel, double tap the “Registry Admin” icon. Two functions are available: Save Registry allows permanently saving the Windows configuration (example: custom configuration of screen desktop background color, or network adapter...

  • Page 64: Files Admin

    MEMOR™ X3 4.5.6 Files Admin The Files Admin applet enables control of the permanence of files in the Windows CE System Folder. Two functions are available: Save Session: with this button all files will be permanently saved in the \Windows directory in non-volatile memory.
  • Page 65 USE AND FUNCTIONING Two activating procedures are available for Safe Setup: Select an installation file (for example, a .CAB cabinet file) from the Safe Setup mask. Safe Setup First Mask Then select \Windows or a relevant sub-directory in the path box. Then, Safe Setup will recognize the new files and directories present in the \Windows directory, and will copy them to the \Backup\Windows directory.
  • Page 66 MEMOR™ X3...

  • Page 67: Wireless Communications

    USE AND FUNCTIONING 4.5.7 Wireless Communications Wireless networking has a customized control, Summit Client Utility (SCU), specific to the radio. There are two methods to access the SCU. Start > Programs > Summit > SCU: From the Control Panel main window, double tap Wi-Fi to open the Summit Client Utility:...
  • Page 68 MEMOR™ X3 The SCU will open to the “Main” tab: Summit Client Utility To create a new profile, tap the "Profile" tab: Information about the wireless network can be entered directly in the profile tab or by pressing “Scan” when the desired network ESSID is in range.
  • Page 69 USE AND FUNCTIONING At the "Scan" screen, select the desired SSID: Click the "Configure" button Follow the on-screen instructions to setup security parameters for your network. For more detailed settings specific to your installation please contact your wireless network administrator.
  • Page 70 MEMOR™ X3 When finished, click “Commit” to save your settings. Return to the “Main” tab, if you have not previously selected “Commit” you will be prompted to save your changes. At the “Main” tab select the profile you just created. If you used the “scan” button the desired profile will have the same name as the ESSID.
  • Page 71 USE AND FUNCTIONING More detailed information about the applet for radio configuration can be found at http://www.summitdata.com/SCU.htm.

  • Page 72: Stylus Calibration

    MEMOR™ X3 4.5.8 Stylus Calibration When you experience an improper response from the touchscreen interface, you might need to recalibrate the device (i.e. when you attempt to select one item with the stylus, another item is erroneously selected). To recalibrate the touch screen, complete the following steps: From the Control Panel main window, double tap Stylus to open the “Stylus Properties”...
  • Page 73 USE AND FUNCTIONING Adjust Double-Tap sensitivity if needed or desired: Tap ‘Calibration’ to open the Calibration screen. Tap ‘Recalibrate’:...
  • Page 74 MEMOR™ X3 Carefully press and briefly hold stylus on the center of the target. Repeat as the target moves around the screen. Press the Esc key to cancel the stylus calibration: Press the Enter key or tap the screen to accept the new calibration settings. Press the Esc key to keep the old settings.

  • Page 75: Audio Settings

    USE AND FUNCTIONING 4.5.9 Audio Settings There are two applets that control volume: Audio and Volume & Sounds. Audio From the control panel main window, double tap the ‘Audio’ icon: The Audio applet allows to set the recording volumes of the main microphone. Audio Window...
  • Page 76 MEMOR™ X3 Volume & Sounds From the control panel main window, double tap the Volume & Sounds icon: The Volume & Sounds applet configures audio features of the rear speaker and appears as follows: Volume & Sounds Window...

  • Page 77: Connecting To Other Computers

    USE AND FUNCTIONING CONNECTING TO OTHER COMPUTERS There is more than one way to connect the Memor X3 to a host PC running Windows. Each requires specific connections in order to function properly. 4.6.1 Windows Mobile® Device Center The desktop application Windows Mobile® Device Center gives you the ability to synchronize information between a desktop computer and your Memor X3.

  • Page 78: Bluetooth® Manager Device Setup

    MEMOR™ X3 4.6.2 Bluetooth® Manager Device Setup Using the Memor X3 to connect to another device To create a Bluetooth® pairing between your device and another device that has Bluetooth® capabilities, ensure that the two devices are turned on, discoverable, and within close range.
  • Page 79 USE AND FUNCTIONING tapping the button for the type of device you want (Printer, Serial or All) or tap Discovery > Discover to skip this step. The Memor X3 will search for Bluetooth® devices within range. If you attempt to set up a connection when the Bluetooth® radio is disabled, you will receive a message reminding you that the radio is turned off, and asking if you want to turn it on.
  • Page 80 MEMOR™ X3 To create a pairing: Select a service: Configure any encryption, authentication, or virtual port options required by the service selected.
  • Page 81 USE AND FUNCTIONING Icon Service Dialup Networking Printer Object Push (OPP) Object Exchange (OBEX) ActiveSync Human Interface Device (HID) - Keyboard Serial Personal Area Network (PAN) Modem Headset Handsfree Virtual Port allows you to specify the incoming port, which is used to communicate serially with an incoming device just as if it were a physical COM port.
  • Page 82 MEMOR™ X3 You can also select Encrypt or Authenticate from the Bluetooth® control panel to apply or modify those settings. To require Authentication, check the checkbox, then tap OK. If required, the Authentication Request dialog will then open, requesting that you enter a PIN.
  • Page 83 USE AND FUNCTIONING The dialog will also appear when an Authentication request is received from another device. Once you have set up a pairing, you can view the settings by double-tapping its name from the Connections tab. Tap the arrow to change the Virtual Port, or Delete to remove the device pairing.
  • Page 84 MEMOR™ X3 Using your device to connect to the Memor X3 Before turning on Bluetooth®, ensure that the two devices are within close range and that both Bluetooth-enabled devices are discoverable. From the control panel main window, double tap the Bluetooth Manager icon to open the Bluetooth Manager control panel.
  • Page 85 Select or clear the “Enable Bluetooth Radio” check box. If you’re going to be attaching a serial device (i.e. a scanner) to the Memor X3, use the Port control to select a virtual COM port to use for the connection.

  • Page 86: Ftp Server Setup

    4.6.3 FTP Server Setup The Memor X3 Windows CE Operating System includes a sample File Transfer Protocol (FTP) server. FTP is used for copying files to and from remote computer systems over a network using TCP/IP. You can establish a connection to your Memor X3 using its FTP Server through the WLAN interface.

  • Page 87: Backup Directory File Management

    USE AND FUNCTIONING BACKUP DIRECTORY FILE MANAGEMENT All of the Windows CE 6.0 system files reside in RAM (volatile memory) except for the Backup directory, which resides in FLASH (non-volatile memory). Therefore the contents of the Backup directory are persistent even if the mobile computer is re- booted or the battery pack is changed.

  • Page 88: Datalogic Firmware Utility

    For more information refer to the dedicated section of the Wavelink website: http://www.wavelink.com/Datalogic-device-downloads. − If Wavelink Avalanche™ is not available or you have only a few Datalogic devices to update, use the Datalogic Firmware Utility (DFU), described below, to install or update the firmware using an ActiveSync connection.

  • Page 89: Installing Dfu On The Host Pc

    PC. NOTE To install the Datalogic Firmware Utility, complete the following steps on the PC: Go to the Datalogic website and download the latest version of the Datalogic Firmware Utility. Unzip the file, then double-click to run DFU_Setup. exe.

  • Page 90: Updating The Firmware

    ActiveSync or Windows Mobile Device Center connection between the host computer and the Datalogic device. NOTE Go to Start > Programs > Datalogic > DFU > Datalogic Firmware Utility. WMDC/ Verify that ActiveSync is selected by clicking Communications > ActiveSync.

  • Page 91: Datalogic Configuration Utility

    DATALOGIC CONFIGURATION UTILITY Datalogic Configuration Utility (DCU) is a Datalogic Windows-based utility tool allowing the uploading, modifying and downloading of the configuration of a Datalogic device. Configuration settings include Scanner, Control Panel, and Datalogic Desktop Utility (DDU). The DCU installer is downloadable from the Datalogic website (http://www.datalogic.com/eng/support-services/automatic-data-...

  • Page 92: 4.10 Datalogic Desktop Utility

    To open DDU for the first time, tap Start > Settings > Control Panel > or Start > Programs > Device tools > and then double tap the icon for “Datalogic Desktop Utility”. You can also open DDU by pressing the appropriate key shortcut. The default is “Alt + 6”.

  • Page 93: Administrative Options (Admin Tab)

    4.10.1 Administrative Options (Admin tab) When you open the DDU control panel, the “Admin” tab appears. COMMAND DESCRIPTION Enable Datalogic Desktop Select/tap this checkbox to activate the DDU functions such as Windows Access Restrictions and Application Selector. Enter Password Enter a password in the text box. This allows the user to specify a password when this utility is launched.

  • Page 94: Setting A Password

    You must select/tap “Set Password” prior to exiting DDU in order to store and activate your new password. It is not necessary to select “Enable Datalogic Desktop”. NOTE If you select/tap “Set Defaults” it will remove all custom settings and restore all the factory default settings, except a previously set password.
  • Page 95 Enter blanks in both “Password” fields. Select/tap “Set Password”. Password Request Dialog Box Once the password is set, the next time you open the “Datalogic Desktop Utility”, the DDU Password dialog box opens. This dialog box will only open if a password was defined.

  • Page 96: Locked Web Browser Options (Lockedweb Tab)

    4.10.2 Locked Web Browser Options (LockedWeb tab) Tap the LockedWeb tab to access the Locked Web Browser Configuration. Locked Web Browser is not available in Memor X3 models supporting Windows CE Core NOTE Locked Web Browser is disabled by default. To enable, go to “Advanced settings”...
  • Page 97 USE AND FUNCTIONING Error Redirection options Error Type The “Error Type” pull-down list displays available Error Types: (400) Invalid Syntax, (403) Request Forbidden, (404) Object Not Found, (406) No Response Format, (410) Page Doesn't Exist, (500) Internal Server Error, (501) Server Can't Do That, Generic Error, Network Disconnected Error Page Edit this textbox to associate a website or html file with the specified...

  • Page 98: Advanced Settings

    MEMOR™ X3 Advanced Settings General Tab Context Menu...
  • Page 99 USE AND FUNCTIONING Advanced Locked Web Browser options General Enable Locked When checked, enables the Locked Web Browser when Internet Web Browser Explorer is launched. Disable Cache Prevents the browser from loading the local intranet page from cache instead of navigating to the “Network Disconnected” error redirection page.
  • Page 100 MEMOR™ X3 Advanced Locked Web Browser options Context Menu Enables the context menu accessed by a touch screen press in Enable Context the Locked Web Browser. Menu Refresh Adds a “Refresh” item to the Locked Web Browser context menu. Selecting the “Refresh” item refreshes the web page. Adds a “Stop”...

  • Page 101: Status Icons Options (Status Tab)

    USE AND FUNCTIONING 4.10.3 Status Icons Options (Status Tab) Tap the “Status” tab to access the Status Icons option. You can configure the view of some status icons that are used in “LockedWeb” and in “Application Selector” to display the status of: Wi-Fi radio and battery. Status Icons Options Icon Size Sets the status icons’...

  • Page 102: Windows Controls

    MEMOR™ X3 4.10.4 Windows Controls Select/tap the “Win” (Windows Controls) tab to access the Windows Controls option. Use Windows controls to allow or restrict access to Windows system functions. You can disable normal Windows functions such as the taskbar, leaving nothing but a blank workspace.
  • Page 103 USE AND FUNCTIONING WINDOWS CONTROLS This control only takes effect in Locked Web Browser. Scroll Bars Enabled When checked, displays horizontal and vertical scroll bars to help view large web pages which do not fit the screen. When unchecked, scroll bars will not be present.

  • Page 104: Appselector Options (Appselect Tab)

    MEMOR™ X3 4.10.5 AppSelector Options (AppSelect tab) Tap the Application Selector (“AppSelect” Tab) to edit, add, or delete applications for the application selector. Application Selector Options Enable Application Selector Select/tap “Enable Application Selector” enable/disable application selector. When enabled, the Application Selector replaces the desktop allows only...
  • Page 105 USE AND FUNCTIONING Add Applications The “Add Application” dialog opens when you tap either “New” or “Edit”. From the “Add Application” dialog the administrator can configure and/or add/change a new application entry in the list. Applications with the “Run Application at Startup” option enabled will start automatically when the Application Selector starts up.
  • Page 106 MEMOR™ X3 COMMAND DESCRIPTION Select/tap this box to force this application to auto start when the Application Selector starts up. Applications Run Application at Startup will be started in the order listed in the authorized application list. Enter a delay duration in seconds in the combo box. Delay This option delays auto start of application(s) to allow drivers to load prior to starting applications.

  • Page 107: Appselector (Application Selector)

    To run an application, tap on its name. Additionally, the page template can be modified to display a different background. Contact your Datalogic representative for more information on this feature. To exit from Application Selector, press ALT + 6, uncheck the ‘Enable Application...

  • Page 108: 4.12 Locked Web Browser

    MEMOR™ X3 4.12 LOCKED WEB BROWSER The Locked Web Browser is a browser helper object for Internet Explorer. It allows an administrator to define a restricted internet usage environment. Once in the restricted environment, a password is required to exit. This means users can only access web applications and websites set by the administrator.
  • Page 109 USE AND FUNCTIONING For firmware versions 1.60 and greater, the following command line arguments are supported: /E optional parameter which allows for Exit without entering a password @URL optional parameter which specifies a URL to use as a home page. /C optional parameter which disables the ctrl keys (including the one to exit).

  • Page 110: Locked Web Browser Special Metatags

    Also, the head tag set must be complete within the first 15K of the web page. The Datalogic Locked Web Browser defines some special metatags that allow the web application to interact with the device: In particular, the special metatags allow it...
  • Page 111 USE AND FUNCTIONING GetSerialNumber Meta-tag DL_GetSerialNumber – Obtains the device serial number and sends it as an argument to a customer’s javascript function. Content – name of function to pass serial number to. Example: <meta http-equiv="DL_GetSerialNumber" content="Javascript:CustomerFunction"> When a page with this metatag is loaded, the content should be a javascript function that receives one parameter, the serial number.
  • Page 112 MEMOR™ X3 Decoding Metatags: Each decoding metatag has a possible content of “Enable” or “Disable”. The settings are valid for the entire page (enables/disables each symbology). DL_Code_39 DL_Code_128 DL_Code_I25 DL_Code_S25 DL_Code_M25 DL_Code_CODABAR DL_Code_93 DL_Code_UPCA DL_Code_UPCE DL_Code_EAN13 DL_Code_EAN8 DL_Code_MSI DL_Code_MSR DL_Code_GS1_14 DL_Code_GS1_LIMIT DL_Code_GS1_EXP DL_Code_PDF417...
  • Page 113 USE AND FUNCTIONING Key press Metatags The key press metatags can be used to call JavaScript functions. They have the name structure: “DL_Key_xxx” where xxx is the VKey code. Example: <meta http-equiv="DL_Key_13" content="Javascript:CheckEnter();"> Assigning a key press via a DL_Key metatag overrides its use on the page. For instance, when entering data in a text box a character assigned as a DL_Key would not be entered in the text box.

  • Page 114: Technical Features

    MEMOR™ X3 TECHNICAL FEATURES TECHNICAL DATA PHYSICAL CHARACTERISTICS DIMENSIONS (LxWxH) 15.7 x 5.9 x 4.1 cm / 6.2 x 2.3 x 1.6 in WEIGHT 230 g / 7.76 oz (incl. 1430 mAH battery) (DEPENDING ON MODEL) 250 g / 8.81 oz (incl. 2300 mAH battery) Rear Speaker for beeps and ringing tones AUDIO Microphone and Front Speaker...
  • Page 115 TECHNICAL FEATURES SYSTEM Windows CE 6.0 Core OPERATING SYSTEM Windows CE 6.0 Pro Marvell XScale™ PXA310 @ 624 MHz (Windows CE 6.0 Core) MICROPROCESSOR Marvell XScale™ PXA310 @ 806 MHz (Windows CE 6.0 Pro) 128 MB (Windows CE 6.0 Core) SYSTEM RAM MEMORY 256 MB (Windows CE 6.0 Pro) SYSTEM FLASH MEMORY...
  • Page 116 MEMOR™ X3 READING OPTIONS LASER CHARACTERISTICS SCANNING RATE 104 ± 12 scan/sec BIDIRECTIONAL OPTICAL RESOLUTION 0.10 mm / 4 mils SKEW ANGLE ± 50° PITCH ANGLE ± 65° LASER READER VLD, wavelength 630~680 nm UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, BAR CODES Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN...
  • Page 117 TECHNICAL FEATURES READING OPTIONS IMAGER CHARACTERISTICS SCANNING RATE 60 frames/sec OPTICAL RESOLUTION 0.13 mm / 5 mils AIMING LASER VLD, wavelength 645~665 nm Decoded barcodes 1D: UPC A, UPC E, EAN 8, EAN 13, Interleaved 2 of 5, Codabar, Code 11, Code 39, Code 39 Full ASCII, Code 93, Code 128, EAN 128, GS1 Databar, MSI, Matrix 2 of 5, Standard 2 of 5, Plessey...
  • Page 118 MEMOR™ X3 READING OPTIONS LINEAR IMAGER CHARACTERISTICS SCANNING RATE 50 scan/sec nominal OPTICAL RESOLUTION 5 mil (minimum readable bar code module size) DEPTH OF FIELD See reading diagrams SKEW ANGLE ± 50° PITCH ANGLE ± 65° GS1 DataBar family, EAN/UPC, Code 39, 2/5 BAR CODES Codes, MSI, Codabar, Code 128, GS1-128, Code 93, Code 11, Pharmacode 39, Trioptic...

  • Page 119: Reading Diagrams

    TECHNICAL FEATURES READING DIAGRAMS Memor X3 SE950-DL Guaranteed Reading Diagram – measured from the device nose (10° skew angle) 0,50 mm 1,4 mm 0,33 mm (20 mils) (55 mils) 0,25 mm (13 mils) (10 mils) 1,00 mm 0,38 mm (40 mils)
  • Page 120 MEMOR™ X3 Memor X3 SE4500-DL Guaranteed Reading Diagram – Measured from the device nose (10° skew angle) 5.0 mil 5.0 mil PDF417 Code 39 15 mil PDF417 20 mil 10 mil Code 39 PDF417 7.5 mil 6.67 mil 13 mil...
  • Page 121 TECHNICAL FEATURES Memor X3 CCD Linear Imager Guaranteed Reading Diagram – Measured from the device nose (10° skew angle) 20 mils Code 39 5.0 mil 7.5 mils Code 39 Code 39 5.0 mils 100 % UPC-A Code 128...

  • Page 122: Test Codes

    MEMOR™ X3 TEST CODES High Density Codes 0.25 mm (10 mils) !17162H! Code 39 17162 Ë"8NduÌ 2/5 Interleaved 0123456784 ÌtestwÎ Code 128 test x(0B2DE5*KKKKLM( EAN 13 (6450*TRMN( EAN 8...
  • Page 123 TEST CODES Medium Density Codes 0.38 mm (15 mils) !17162H! Code 39 17162 Ë"8NduÌ Interleaved 2/5 0123456784 ÌtestwÎ Code 128 test 100% x(0B2DE5*KKKKLM( EAN 13 100% (6450*TRMN( EAN 8...
  • Page 124 MEMOR™ X3 Low Density Codes 0.50 mm (20 mils) !17162H! Code 39 17162 Ë"8NduÌ Interleaved 2/5 0123456784 ÌtestwÎ Code 128 test 120% x(0B2DE5*KKKKLM( EAN 13 120% (6450*TRMN( EAN 8...
  • Page 125 TEST CODES 2D Codes Datamatrix ECC200 Example Inverse Datamatrix ECC200 Example...

  • Page 126: Regulatory Information

    This device is intended to be connected to a UL Listed/CSA Certified computer which supplies power directly to the Memor X3 or else be supplied by a UL Listed/CSA Certified Power Unit marked “Class 2” or LPS power source rated 5 V, 3.0 A, which supplies power directly to the Memor X3 via the power connector of the cable.

  • Page 127: Laser Safety

    LASER SAFETY The laser light is visible to the human eye and is emitted from the window indicated in the figure. This information applies to both laser models and the Memor X3 Imager Aiming System. Laser output window...
  • Page 128 Die Laserstrahlung ist für Le rayon laser est visible La luce laser è visibile La luz láser es visible al das menschliche Auge à l'oeil nu et il est émis all'occhio umano e viene ojo humano y es emitida sichtbar und wird am par la fenêtre désignée emessa dalla finestra por la ventana indicada...
  • Page 129 ENGLISH The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of your mobile computer. STANDARD LASER SAFETY REGULATIONS This product conforms to the applicable requirements of both CDRH 21 CFR 1040 and EN 60825-1 at the date of manufacture.
  • Page 130 Non tentare di accedere allo scomparto contenete i componenti ottici o di farne la manutenzione. L’apertura dello scomparto, o la manutenzione di qualsiasi parte ATTENZIONE ottica da parte di personale non autorizzato, potrebbe violare le norme della sicurezza. Il sistema ottico può essere riparato solamente alla fabbrica.
  • Page 131 Unter keinen Umständen darf versucht werden, die Komponenten im Optikhohlraum zu öffnen oder auf irgendwelche andere Weise zu warten. Öffnen bzw. Warten Komponenten Optikhohlraum durch unbefugtes Personal verstößt gegen die ACHTUNG Laser-Sicherheitsbestimmungen. Optiksystem darf werkseitig repariert werden. Jegliche Änderungen am Gerät sowie Vorgehensweisen, die nicht in dieser Betriebsanleitung beschrieben...
  • Page 132 L'utilisation de procédures ou réglages différents de ceux donnés ici peut entraîner une dangereuse exposition à lumière laser visible. ATTENTION Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement le rayon, comme toute autre source lumineuse intense telle que le soleil.

  • Page 133: Led Class

    Los instrumentos ópticos incluyen binoculares, microscopios, lentes y lupas. ATENCIÓN LED CLASS LED illuminator integrated in the Memor X3 models with SE-4500 imager engine are compliant with exempt risk group requirements according to EN62471:2008 and IEC62471:2006. RADIO COMPLIANCE...
  • Page 134 Europe – EU Declaration of Conformity − This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: −...
  • Page 135 Hereby, Datalogic ADC S.r.l., declares that this MEMORX3 is in English compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Por medio de la presente Datalogic ADC S.r.l. declara que el Español MEMORX3 cumple con los requisitos esenciales y cualesquiera otras [Spanish] disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 136 Datalogic ADC S.r.l. declara que este MEMORX3 está conforme com Português os requisitos essenciais e outras disposições da Directiva 1999/5/CE. [Portuguese] Datalogic ADC S.r.l. izjavlja, da je ta MEMORX3 v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensko [Slovenian] Datalogic ADC S.r.l.
  • Page 137 Information for the User ENGLISH Contact the competent authority responsible for the management of radio frequency devices of your country to verify any possible restrictions or licenses required. Refer site http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts- points/spectr/ for further information. ITALIANO Contatta l'autorità competente per la gestione degli apparati a radio frequenza del tuo paese, per verificare eventuali restrizioni o licenze.

  • Page 138: Fcc Compliance

    FCC COMPLIANCE FCC Interference Statement • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 139 IMPORTANT NOTE: FCC Radiation Exposure Statement This model device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.

  • Page 140: Industry Canada Compliance

    INDUSTRY CANADA COMPLIANCE IC Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 141 pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL IMPORTANT NOTE: IC Radiation Exposure Statement: The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual.

  • Page 142: Sar Compliance

    SAR COMPLIANCE This product has been tested and found to comply with the following standards: OET BULLETIN 65 SUPPLEMENT C: evaluating compliance with FCC guidelines for human exposure to radio frequency electromagnetic fields. EN 62311:2008: assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz –...

  • Page 143: Weee Compliance

    For more detailed information about disposal, contact the supplier that provided you with the product in question or consult the dedicated section at the website http://www.datalogic.com.
  • Page 144 Auswirkungen für die Umwelt und die Gesundheit der Menschen  ermöglicht die Wiederverwendung der Materialien und spart somit Energie und Resourcen Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkt erworben haben, oder besuchen sie unsere Hompage unter http://www.datalogic.com.

  • Page 145: Glossary

    GLOSSARY Access Point A device that provides transparent access between Ethernet wired networks and IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile computers, PDAs or other devices equipped with radio cards, communicate with wired networks using Access Points (AP). The mobile unit (mobile computer) may roam among the APs in the same subnet while maintaining a continuous, seamless connection to the wired network.
  • Page 146 Decode To recognize a bar code symbology (e.g., Codabar, Code 128, Code 3 of 9, UPC/EAN, etc.) and convert the content of the bar code scanned from a visual pattern into electronic data. Depth of Field (DOF) The portion of a scene that appears acceptably sharp in the image. Although a lens can precisely focus at only one distance, the decrease in sharpness is gradual on each side of the focused distance, so that within the DOF, the unsharpness is imperceptible under normal viewing conditions.
  • Page 147 IEEE 802.11 A set of standards carrying out wireless local area network (WLAN) computer communication in the 2.4, 3.6 and 5 GHz frequency bands. They are created and maintained by the IEEE LAN/MAN Standards Committee. Light Emitting Diode (LED) A low power electronic light source commonly used as an indicator light. It uses less power than an incandescent light bulb but more than a Liquid Crystal Display (LCD).
  • Page 148 TDMA Time division multiple access (TDMA) is digital transmission technology that allows a number of users to access a single radio-frequency (RF) channel without interference by allocating unique time slots to each user within each channel. The TDMA digital transmission scheme multiplexes three signals over a single channel. The current TDMA standard for cellular divides a single channel into six time slots, with each signal using two slots, providing a 3 to 1 gain in capacity over advanced mobile- phone service (AMPS).

  • Page 149: Index

    Linear Imager Data Capture; 35 References; v Data Capture Configuration; 45 Replacing the Batteries; 12 Datalogic Configuration Utility; 83 Resetting the Memor X3; 40 Datalogic Desktop Utility; 84 Datalogic Firmware Utility; 80 Description of the Keyboards; 37 Safe Setup; 56 DL Buttons;...
  • Page 150 Services and Support; v Memor Description; 1 Using the Stylus; 30 Startup; 28 Status Indicators; 42 Stylus Calibration; 64 WEEE Compliance; 135 Windows Mobile® Device Center; 69 Wireless and Radio Frequencies Taskbar; 43 Warnings; 26 Technical Data; 106 Wireless Communications; 59 Technical Features;...

  • Page 151: Declaration Of Conformity

    DECLARATION OF CONFORMITY Datalogic ADC S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt ,daß das Gerät declare que el MEMORX3 modelli senza funzionalità radio models without radio feature sans radio ohne radio-funktionalität...
  • Page 152 DECLARATION OF CONFORMITY Datalogic ADC S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt ,daß das Gerät declare que el MEMORX3 con funzionalità radio 802.11abgn+BT models with 802.11abgn+BT radio feature modèles avec 802.11abgn+BT radio intégrés...
  • Page 153 HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS Z TO EN50581:2012 ECHNICAL DOCUMENTATION FOR THE ASSESSMENT OF ELECTRICAL AND ELECTRONIC PRODUCTS WITH RESPECT TO THE RESTRICTION OF HAZARDOUS SUBSTANCES Lippo di Calderara di Reno, March 5 2014 Ruggero Cacioppo Quality & Reliability Manager Datalogic ADC S.r.l.
  • Page 154 © 2013-2014 Datalogic ADC S.r.l. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. In many countries, including the U.S.A. and the E.U. Datalogic ADC S.r.l. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno...

Table of Contents

Save PDF
