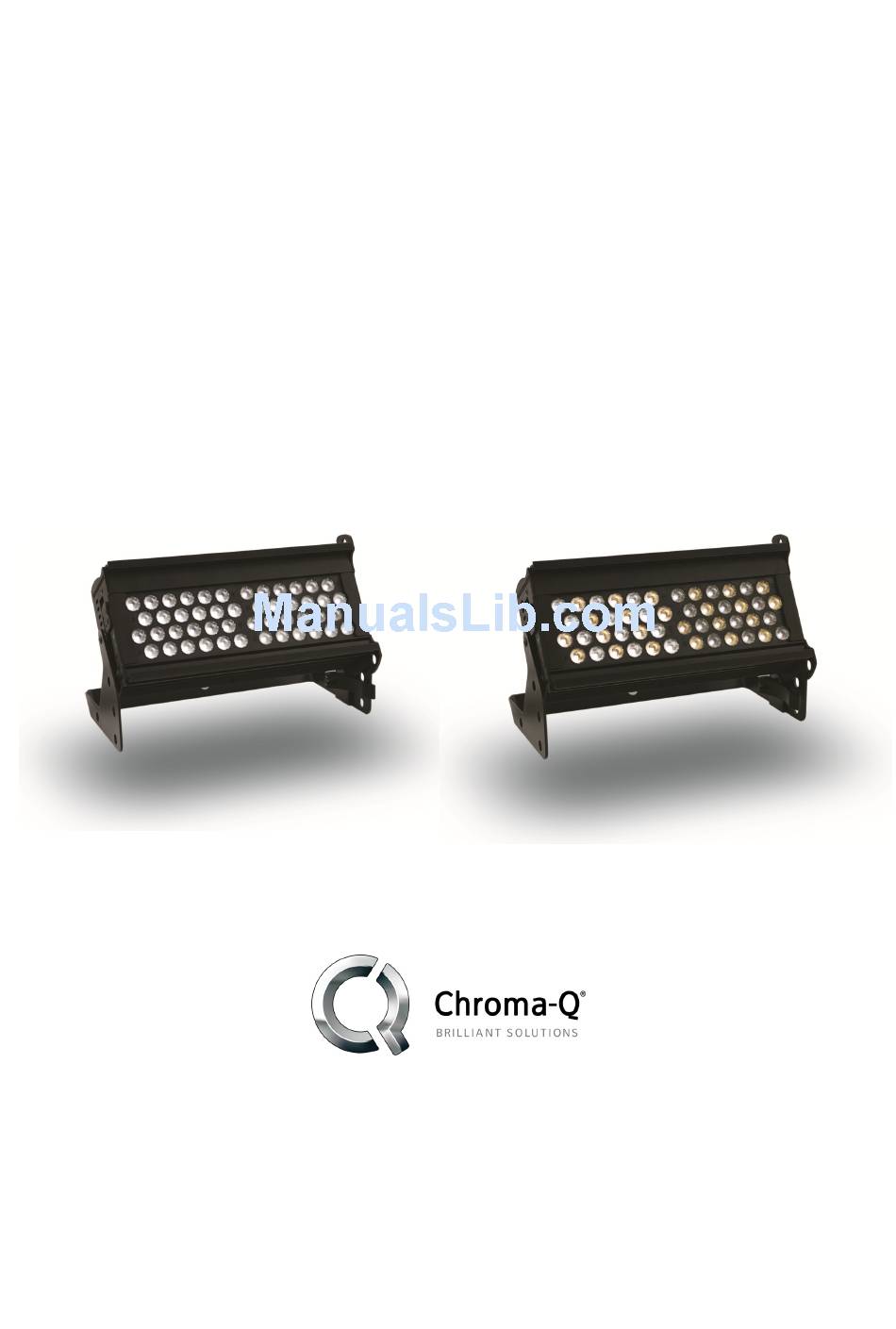

- Page 1 Chroma-Q ® Studio Force™ V12 / T12 / D12 / D XT 12 User Manual Version 1.3 March 2015 Software Version 2.0 PN: 621-0502...
- Page 2 (c) by operation outside the specifications contained in the user documentation; (d) by the use of spare parts not manufactured or sold by Chroma-Q or by the connection or integration of other equipment or software not approved by Chroma-Q unless the Customer provides acceptable proof to Chroma-Q that the defect or damage was not caused by the above;...
- Page 3 The Chroma-Q Studio Force V 12 / T 12 / D 12 / D XT 12 range has been designed specifically for the lighting industry. Regular maintenance should be performed to ensure that the products perform well in the entertainment environment.
-
Page 4: Table Of Contents

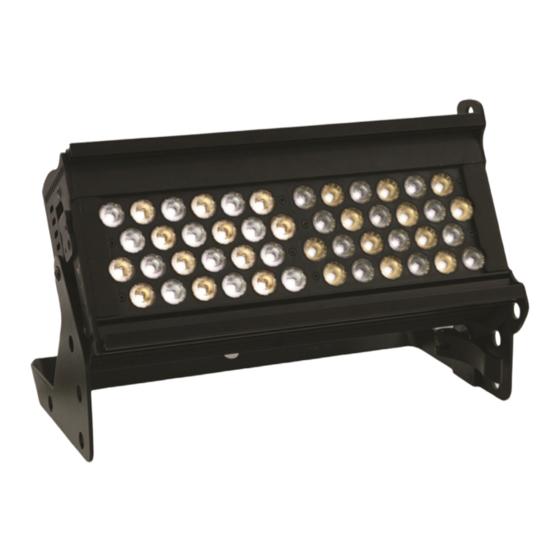

Specification ..........................15 Technical Specifications ....................16 Drawings – Dimensions ....................17 Accessories ........................17 Maintenance ..........................17 Product overview www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015... - Page 5 The Chroma-Q Studio Force™ 12 LED fixtures range features a choice of 6,100K CCT, daylight white (Studio Force D 12 & D XT 12), 3,000K CCT, tungsten white (Studio Force T 12) and 3,000K – 6,100K CCT, variable white (Studio Force V 12) models –...
-
Page 6: Operation
Important Notice: The use of an opto-splitter for DMX signal distribution is highly recommended when several fixture units are not plugged into the same power source. Mounting www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015... -
Page 7: Chevrons
On power-up and home position, the display shows the model name, software version, the DMX address, current assigned mode and the number of assigned channels. www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual... - Page 8 Temperature (Studio Force V 12) Control Menu Use the push buttons (up/down arrows) to scroll through the control menu options: Home / DMX Address www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015...
- Page 9 “Int” level will flash. Use the Up/Down buttons to adjust the value and press Enter for 2 seconds to save the settings. www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual...
- Page 10 When the desired effect is created press Enter for 2 seconds to save the edited Look. Technical In this mode, frequency settings of the unit can be changed; and pre-programmed engines can be uploaded. www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015...
-
Page 11: Dmx Protocol - Studio Force D 12 & D Xt 12
Up/Down buttons to select the desired frequency, press Enter for 2 seconds to save settings. Upload Engines: Pre-programmed engines can be uploaded to the Studio Force V 12 / T 12 / D 12 / D XT 12 from the Chroma- Q Uploader: Press Enter, Up/Down buttons to select “Upload Engines”... -
Page 12: Dmx Protocol - Studio Force T 12
Group : All Channel 1 Warm White for group 1 Intensity Effects 0 Static 1-63 Fade on, fade off. Variable, 63 fastest www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015... -
Page 13: Dmx Protocol - Studio Force V 12
[8ch] WWWW [3ch] sWWCW v2.0 Group : Duo Group : All Channel 1 Cold White for group 1 Intensity Effects www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015... - Page 14 2 DMX channels Studio Force V 12 - DMX Personality Mode 11: Studio Force V 12 Mode 11 [1ch] Look Select v2.0 www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015...
-
Page 15: 2.10 Thermal Performance
*Note: Not all pre-programmed Looks are applicable to the Studio Force D, D XT and T fixtures. 2.10 Thermal Performance www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015... -
Page 16: Troubleshooting
Fan is not working. Check fan. Check for airflow - to and from the internal fan. Check area ventilation. Specification www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015... -
Page 17: Technical Specifications
Lamp Life L70 at 50,000 hours Operating temperature 0ºC to 40ºC **For exact measurements please refer to the line drawings below www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015... -
Page 18: Drawings - Dimensions
The Lightbank Kit consists of the Lightbank Adaptor (Speedring) and Lightbank. Both items can also be purchased separately. Fixture not included Maintenance www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual V1.3 March 2015... -
Page 19: Www.chroma-Q.com
Do not spray liquids on the front or rear panel. If the front enclosure requires cleaning, wipe with a mild detergent on a damp cloth. www.chroma-q.com Studio Force V 12 / T 12 / D 12 / D XT 12 User Manual...
