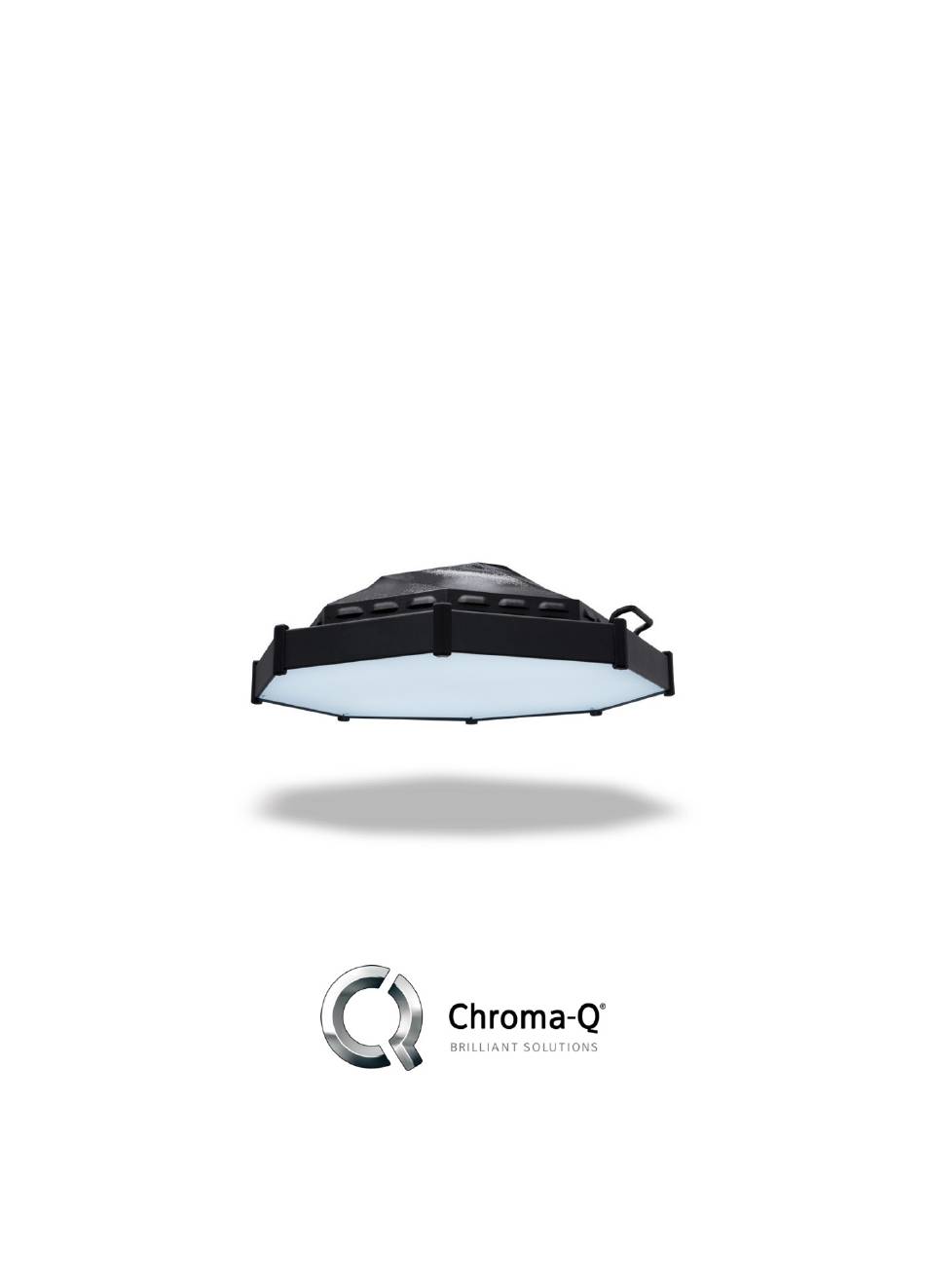

- Page 1 ® Chroma-Q Space Force™ CQSPFV, CQSPFVW CQSPFVLR (Model: 650-1000/ CQSPFV Black) (Model: 650-1100/ CQSPFVW White) (Model: 650-1500/ CQSPFVLR Black with RF) User Manual Software Version 1.70, 2018 Manual: 650-0901 V1.72...
- Page 2 (c) by operation outside the specifications contained in the user documentation; (d) by the use of spare parts not manufactured or sold by Chroma-Q or by the connection or integration of other equipment or software not approved by Chroma-Q unless the Customer provides acceptable proof to Chroma-Q that the defect or damage was not caused by the above;...
- Page 3 Chroma-Q products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent.
- Page 4 If you experience difficulties with any Chroma-Q products please contact your local dealer. If your local dealer is unable to help then please contact support@chroma-q.com. If you are having trouble finding what you are looking for on our website, then contact our Chroma-Q marketing department by sending an email to marketing@chroma-q.com.
- Page 5 PROTECTION FROM ELECTRIC SHOCK • Use only the cables specified in this manual and on the Chroma-q website at www.chroma-q.com to interconnect devices in the installation. If the specified cables are not long enough for an intended cable run, consult Chroma-Q for assistance in finding or creating a safe alternative solution.
-
Page 6: Table Of Contents
2.3 Mounting ..........................8 2.4 Control ............................. 8 2.5 Thermal Performance ......................20 Troubleshooting ........................21 Specification .......................... 22 4.1 Technical Specification ......................22 4.2 Drawings ..........................23 Accessories ........................... 24 Maintenance ........................... 24 www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019... -
Page 7: Product Overview

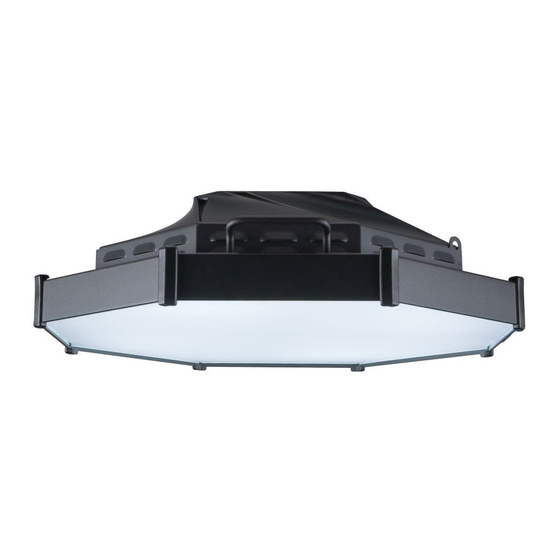

A White Light for Every Application The Chroma-Q Space Force is available as a variable white model 2,800K – 6,300K. Every unit is factory calibrated, to ensure consistent output and colour temperature. Energy-Efficient The Chroma-Q Space Force uses a fraction of the power required by conventional fixtures, while delivering all of the performance you require. -
Page 8: Operation
Black Live (L) Hot (Gold) The fixture uses XLR 5 pin input and through chassis connectors for ANSI E1.20 - 2010 RDM and USITT DMX512-A control. The XLR chassis are ground bonded. www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019... -
Page 9: Mounting
Flash RDM RF Module Installed Indicator (when communicating) DMX Indicator DMX Address Right-hand Knob Left-hand Knob (Set Color Temp.) (Set Intensity) Intensity Color Temperature Level Indicator Link Indicator Cable/RF Input Indicator Control Buttons www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019... - Page 10 (till LED sec to save. Short Press once to Press once to Press again to OFF) Press to set recall recall switch OFF Value +1 Value +10 Value -1 Value -10 www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019...
- Page 11 To unlink, Press and hold Link for 2 – 5 seconds until the light is off Addr Sets the DMX start address (see section on Remote DMX Operation) www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019...
- Page 12 1-Turn Black 2-Hold Last 3-Recall M1 4-Recall M2 4-RDM RDM Disabled RDM Enabled 5-DMX Input Data 6-Temperature 7-FMW Name & Version 8-Engine Upload 4-User Defaults 1-Save Inc/Dec 2-Restore 5-Reset Press both to Reset www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019...
- Page 13 First two channels are similar to (a.); the third channel is the Control (CTRL) channel. Commands (through DMX) that are placed on this channel for over 5 seconds get executed. The command list will follow in the “New Control via DMX” section. www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019...
- Page 14 Enable Engine LOAD from the Technical menu • Initiate the upload from the Uploader II (Refer to the Uploader II Quick Start Guide for details http://www.chroma-q.com/support/downloads.asp) 4-User Defaults • Provides two choices, Save and Restore. Save will store all the current set ups, including Address and Personality, into a user dedicated area on flash.
- Page 15 4. The Link Indicator flashes fast to indicate the link in progress 5. The Link Indicator flashes slowly to indicate the link complete and active 6. The Link Indicator becomes solid ON if DMX is received over the wireless link www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019...
- Page 16 The Space Force is an ANSI E1.20 - 2010 RDM-Remote Device Management compliant device which allows bi-directional control configuration, status monitoring and management through the wired and wireless DMX connection. Parameter Implemented Value(s) Description MANUFACTURER_LABEL 0x5370 Chroma-Q DEVICE_MODEL_DESCRIPTION SPACEFORCE_1 DEVICE_INFO Sends the Device info DMX_PERSONALITY DMX_START_ADDRESS 1-511 DMX Start Address (...
- Page 17 RDM Functions A. Chroma-Q Specific Functions 1. STORE MEMORY Mx Description: Stores current light intensity and temperature to either memory (M1) or (M2) on flash. Function: SET Argument: one binary byte of value: 1 for M1, or 2 for M2 2.
- Page 18 Minimum → Maximum Intensity Fade Light Color Temperature ADDRESS +1 0 - 255 Warm → Cold Fade Extended Controls ADDRESS +2 0 - 255 * See Control channel table for details Snap www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019...
- Page 19 DMX mode) Restore “USER DEFAULTS” Restore User Defaults from flash (except DMX address and DMX mode) Restore setting to factory Restore Defaults Settings default (except DMX address and DMX mode) No Function www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019...
- Page 20 Focus: Activates all engines in the SPACEFORCE at the same time. c. Accessing Menu by pressing both dials has been adjusted to become easy. Adjust address pushbutton timing to work properly. Eliminated LCD back light flicker. www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019...
-
Page 21: Thermal Performance
The internal cooling system of the fixture is by convection. It also features automatic protection that reduces the output when the internal temperature reaches the maximum limit due to extreme ambient conditions. See operating temperature range in the specification below. www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019... -
Page 22: Troubleshooting
Frequency set incorrectly. • Change PWM frequency. • • Unit does not respond to Being controlled via non-RDM Connect directly to RDM RDM commands. compliant splitter. controller/gateway or use RDM enabled splitter. www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019... -
Page 23: Specification
4. Specification 4.1 Technical Specification Product Code CHSPFV Chroma-Q Space Force Variable w Bridle CHSPFVLR Chroma-Q Space Force Variable Bridle LumenRadio Installed Net Dimensions (Without Fixings 663mm x 203mm x 663mm / 26" x 8" x 26" - Width x Height x Depth Net Weight (Without Fixings) 8 kg / 17.6 lb... -
Page 24: Drawings
4.2 Drawings www.chroma-q.com Space Force User Manual V1.72 Aug.. 2019... -
Page 25: Accessories
CHSPFSEC Chroma-Q Space Force Soft Egg Crate CHSPFCK Chroma-Q Space Force Cyc Skirt/Silk CHSPFSTK Chroma-Q Space Force Soft Target Kit - for use with a skirt Full, 1/2, 1/4, 1/8 CHSPFSL Chroma-Q Space Force Soft Lantern CHSPFB Chroma-Q Space Force Bridle - included with fixture CHSPFLR Chroma-Q Space Force LumenRadio Kit –...
