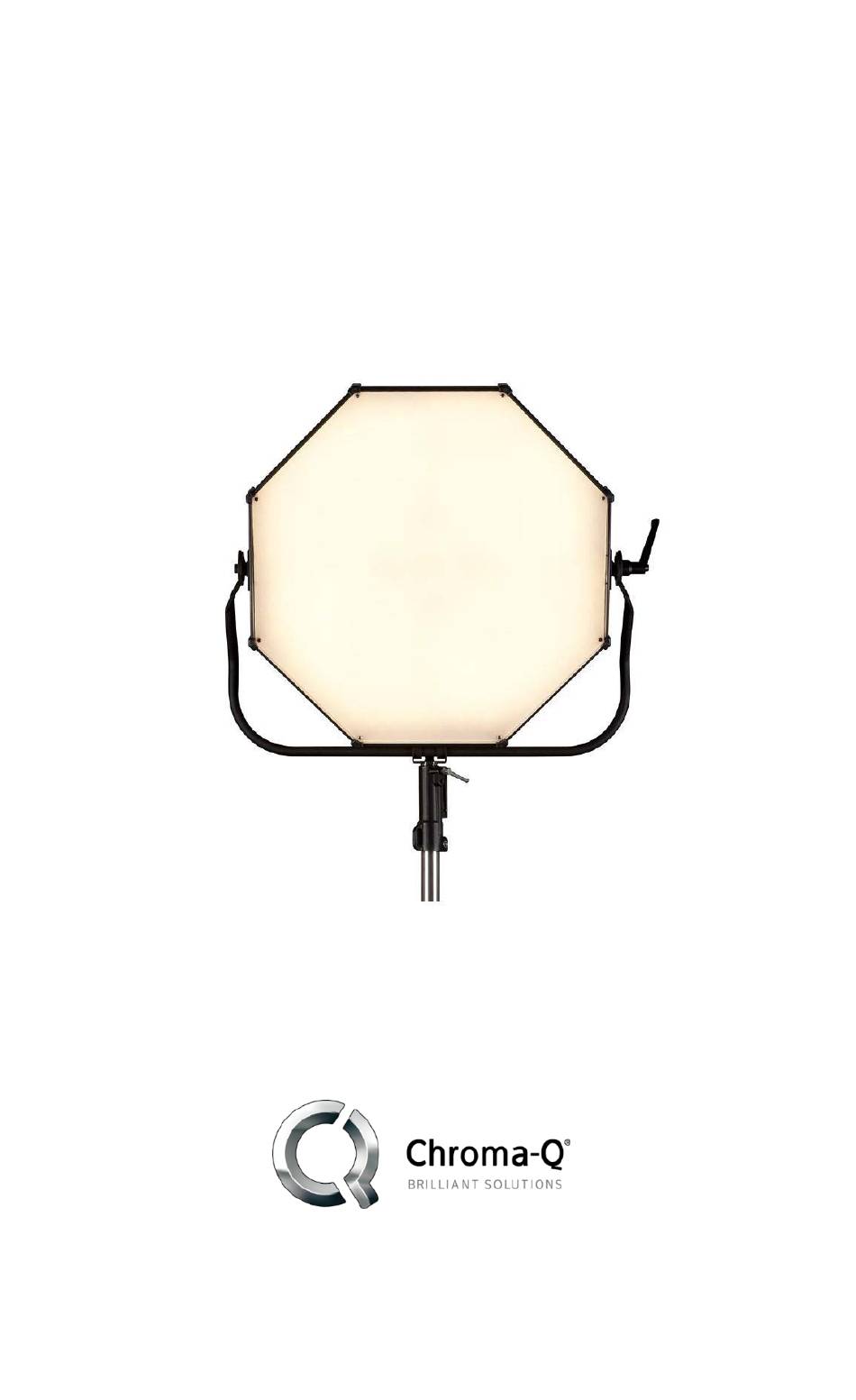

- Page 1 Quick Start Guide ® Chroma-Q Space Force Manual Yoke Installation For a full product manual please visit www.chroma-q.com Part Number: CHSFPV Model: 650-9010 Manual Yoke Space Force Quick Start Guide V1.5 P/N: 650-0903...
-
Page 2: Tools Required
1. Items in the Kit: Space Force Offset Yoke (650-9010) Items Part Number Qty. Space Force Yoke Bracket M12 Blk 650-0035 Yoke Offset 650-0055 Knob M10x1.5 - 20mm Black 648-0113 Spigot for Yoke 900-0621 Adjustable Handle Offset Yoke 900-0672 Friction Disc 12mm ID, 63mm OD... - Page 3 1. Install the Yoke Brackets (650-0035) on both sides of space force unit using PZ1 x 80mm screw driver. Tighten the screws (440-1108-0) to make a solid connection. 2. On the yoke arm with the 12mm hole, place the Friction Disc (900-0613) in between the Yoke (650-0055) and the Yoke Bracket (650-0035).
- Page 4 Knob M10x1.5 - 20mm Black (648-0113) Offset Yoke Spigot for Yoke (650-0055) (900-0621) Offset Yoke Washer (650-0055) Flat 1/2" (350-2114-4) Washer Spring Screw M12X40 12mm ID SHSC Blk (412-5012-0) (412-1440-0) Manual Yoke Space Force Quick Start Guide V1.5 P/N: 650-0903...
- Page 5 Manual Yoke Space Force Quick Start Guide V1.5 P/N: 650-0903...
- Page 6 Chroma-Q Space force with Offset Yoke Accessory Manual Yoke Space Force Quick Start Guide V1.5 P/N: 650-0903...
-
Page 7: Further Information
Further Information Please refer to the Chroma-Q Space Force manual for more detailed information. A copy of the manual can be found at the Chroma-Q website – http://www.chroma-q.com/support/downloads.asp Manual Yoke Space Force Quick Start Guide V1.5 P/N: 650-0903... - Page 8 Chroma-Q sole warranty is that the product will meet the Chroma-Q sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
